Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65

Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65

  • High Light

    fiber optic closure

    ,

    optical distribution box

  • Dimension
    220*210*50mm
  • Color
    Gray
  • Material
    ABS+PC
  • Capacity
    Max. 12 Cores
  • Adapter
    12PCS SC Simplex
  • PLC Splitter
    1x2, 1x4, 1x8 Mini Splitter
  • Cable Port
    1in 2out Cable Gland
  • Cable Diameter
    16mm
  • Usage
    Outdoor, Indoor
  • Installation
    Wall Mount, Pole Mount
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0212B
  • Minimum Order Quantity
    100pcs
  • Price
    Negotiable
  • Packaging Details
    1pc/box, 40pcs/CTN
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    5000pcs per month

Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65

Outdoor Optical Terminal Box 1x12 PLC splitter, 12 Cores 3Ports Fiber Distribution Box IP65



This fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. The fiber splicing ,splitting, distribution can be done in this box. The box can be used indoor and outdoor.



Features

  • Total of 3 cable ports, 1in 2out
  • Industrial standard user interface max.12pcs SC/LC duplex
  • Made of high impact engineering plastic
  • Can accommodate 1x4, 1x8,1x12 PLC blockless splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 12FTTH drops
  • IP65 protection class



Product Details

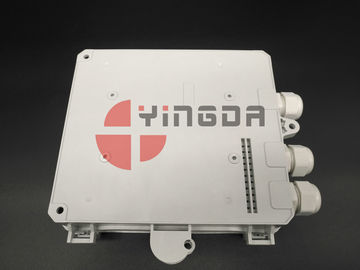

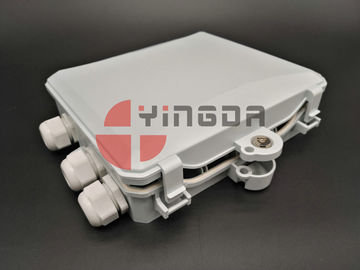

Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 0Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 1

                             Overview                                                                 Back

  • This box seals with key and buckle.

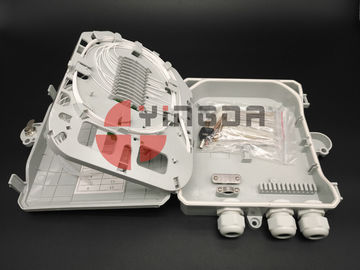

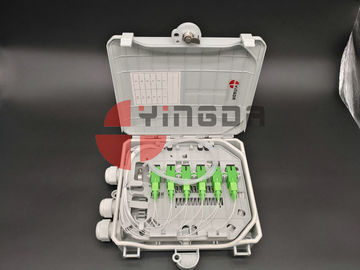

Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 2Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 3

  • It can accommodate 1x4, 1x8,1x12 mini module PLC splitter, max. 12pcs SC simplex adapters.
  • Splice fibers on the back of adapter panel.



Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 4Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 5

                              Cover                                                                     Bottom



Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 6Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 7

  • A total of three cable glands include one input and two outputs.
  • For the two outputs, there is a plastic part to fix FTTH drop cables that will go through outputs.
  • The metal part that located at the input is used to fixed the main fiber cable that go into the box.



Specification

Model FDB0212B
Material PC+ABS
Dimension (W*D*H)mm 220*210*50
Max.Capacity PLC1x4 (2pc);1x8 or 1x12 (1pc) Steel tube or LGX module
Cable ports 3round cable ports
Cable diameter(mm) Φ16
Adapter Max. 12pcs SC
Color Gray
Application Wall mount, pole mount



Packing informations

Model N.W./KGS Qty/CTN CTN Size/cm G.W./KGS
FDB0212B 0.5 40 44*49*56 24.4
FDB0212B with pole mount kits 0.65 20 77*46*26 14.3



Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 8Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 9

                  Standard accessories                                                    Inner packaging



Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 10Outdoor Optical Terminal Box 1x12 PLC splitter , 12 Cores 3Ports Fiber Distribution Box IP65 11

  • Optional pole mount kits. If need, please specify.
