Fiber Optic Splitter Box
Created with Pixso. 1*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box
Name
  • Name
  • Name
  • Name
  • Name
  • Name

1*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box

Brand Name: YINGDA
Model Number: FDB0208H
MOQ: 100 PCS
Price: 1.0USD-18.6USD
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
ABS+PC
Color:
White
Capacity:
FTTH Drop Cable 8 Cores
Cable Port:
2In 8Out
Dimension:
240*195*66 Mm
Adapter:
8PCS SC Simplex
Installation:
Wall Mount, Pole Mount
Usage:
Indoor Or Outdoor
PLC Splitter:
1x2, 1x4, 1x8 Mini Splitter
Sample:
OK
Packaging Details:
1pc/box, 10pcs per carton box
Supply Ability:
10000 pcs per month
Highlight:

optical distribution box

,

splitter distribution box

Product Description

1*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box





FDB0208H is designed to connect feeder / distribution cable to subscriber's drop cable using
PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter
and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray. It is
excellent sealing performance,reusable. Protection grade is IP 68. It can use SC or LC duplex adapter,
and maximum micro splitter 1x8.

Features
  • 2inputs, 8outputs
  • Industrial standard user interface max. 8pcs SC/LC duplex
  • Made of high impact engineering plastic
  • Can accommodate 1x4, 1x8 PLC blockless splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 8FTTH drops


Showing more photos



1*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box 01*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box 1

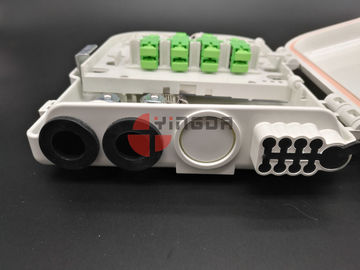

front view- 2 round ports, 1 for future use, 8 ports for ftth drop cable :2*3mm, enough fiber cable storage and distribution space, and cable entry part is large, metal parts to manage the cables.



1*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box 21*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box 3

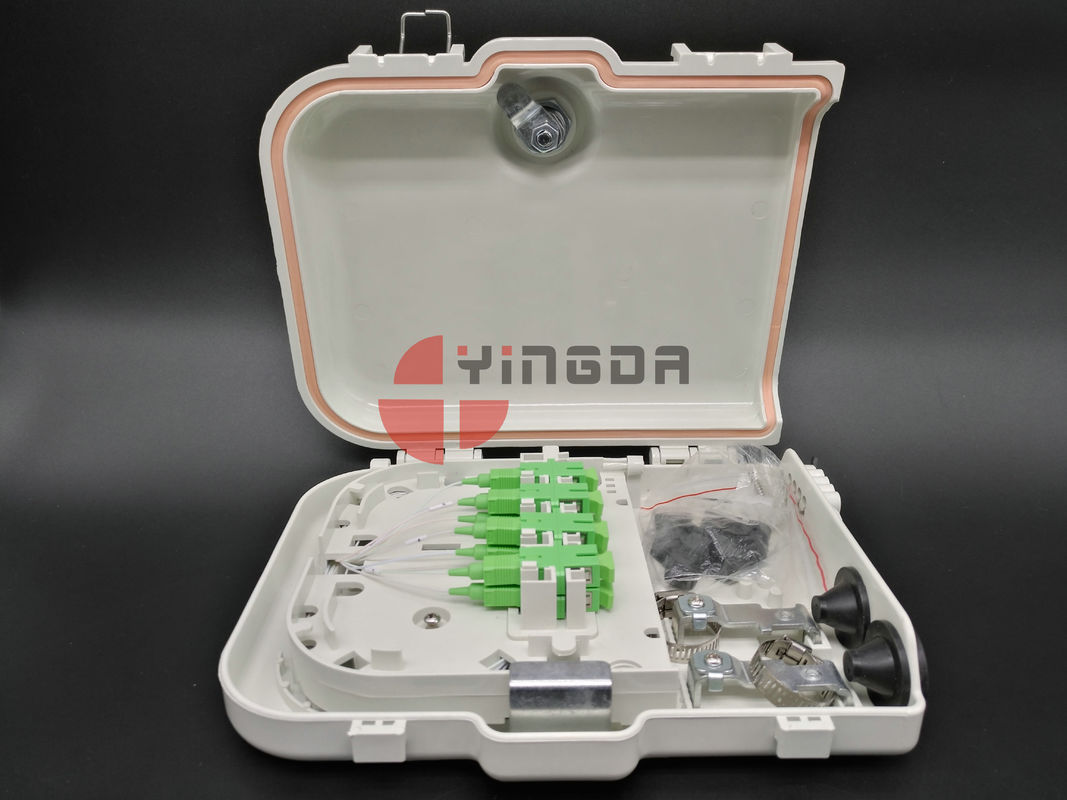

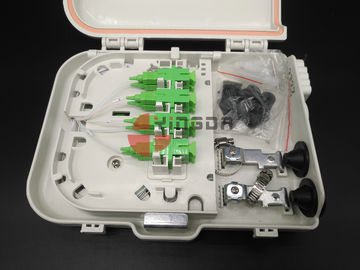

there is a splice tray:

one side is for fusion, max. splice 8fibers in total, and 2 slots for plc splitter steel tube.

the other side is for distribution with 8pcs SC/APC adapters, and ftth drop cable connection on site work.



1*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box 41*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box 5

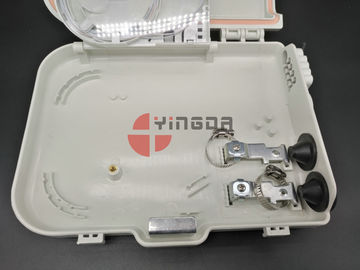

lock system: key +2 buckles, anti-thief, and waterproof, special design., back with wall mounting holes with screws and pole mount with clamps.



1*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box 61*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box 7

key lock is metal inside to prevent high impact and stable. all cable ports is with rubber seal for warterproof.





Specification
Model FDB0208H
Dimension (W*D*H)mm 240*195*66
Max. Capacity PLC 1x4 (2pc); PLC 1x8(1pc)
Cable ports 2inputs (1 more optional), 8outputs
Cable diameter(mm) In:Φ12, out:Φ2*3
Adapter Max. 8pcs SC



If any interests, please contact with us at sales@yingdapc.com or skype:yingdapc1.
