YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor

MOQ: 100PCS
Price: 1.0USD-18.6USD
Standard Packaging: 1pc/box, 20pcs/carton box
Delivery Period: 5-8 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 5000pcs per mounth
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
FDB0208C
Material:
ABS+PC
Color:
White, Grey, Black
Adapter:
8PCS SC Simplex Coupler
Capacity:
8 Fibers
Cable Port:
2In 8 Out
PLC Splitter:
1x2, 1x4, 1x8 Mini Splitter
Installation:
Wall Pole Mount
Dimension:
240*195*66mm
Application:
FTTH FTTX FTTB FTTR
Highlight:

fiber optic closure

,

optical distribution box

Product Description

YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor



FDB0208C is designed to connect feeder / distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray. It is excellent sealing performance,reusable. Protection grade is IP 68. It can use SC or LC duplex adapter, and maximum micro splitter 1x8.



Application

  • Data centres, premise installations, telecommunication networks
  • Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
  • Data communication and telecommunication networks
  • Indoor /outdoor applications



Features

  • 3inputs, 8outputs
  • Industrial standard user interface max. 8pcs SC/LC duplex
  • Made of high impact engineering plastic
  • Can accommodate 1x4, 1x8 PLC blockless splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 8 FTTH drops



Specifications

Model FDB0208C
Height 240mm
Width 195mm
Depth 66mm
Net weight 0.55kg
Packed weight 0.6kg
IP rating IP65
Suitable for adaptor type SC Simplex or LC Duplex
Number of fibres 8
Number of ports 8
Material ABS+PC
Colour White
Operating temperature -40°C to +60°C
Designed in accordance with TIA/EIA 568.C, EN50173, IEC60304, IEC61754, EN297-1, ISO/IEC 11801
Compliant to RoHS, Reach/SVHC



Product Details

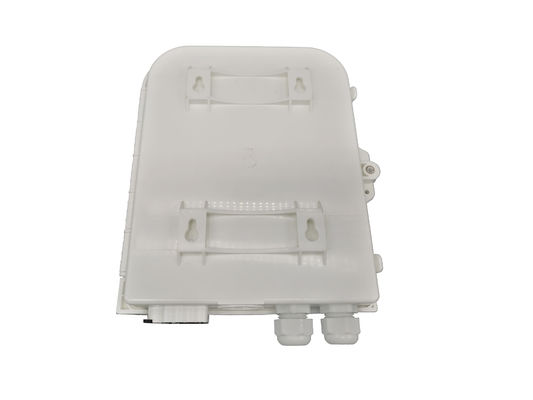

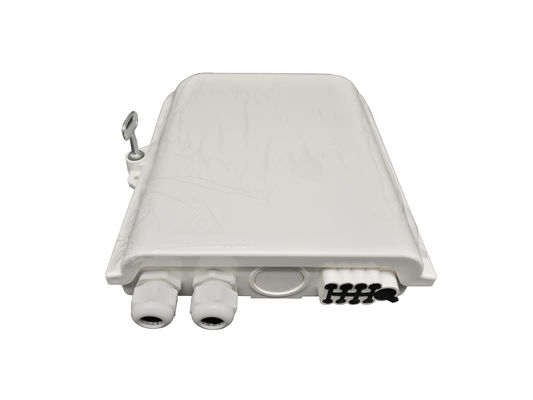

The box have 2cable glands for cable enter, and 8pcs drop cable round ports with rubber seals. Every cable ports have waterproof seals inside, and there are cable strength member fixtures inside to keep the cable in place, no mess.

YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor 0

YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor 1YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor 2



There is enough cable winding area on the bottom of the box, with guiding line design.

YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor 3

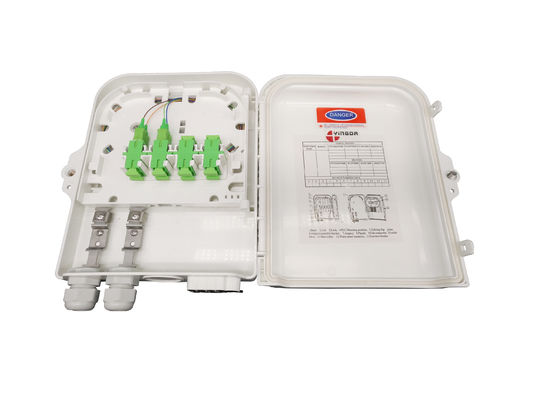

The adapter plate can hold maximum 8pcs SC simplex adapter with flange, special design without mounting screws to hold it tightly. And there is enough length for all kinds of fast connectors with drop cable to insert.

YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor 4

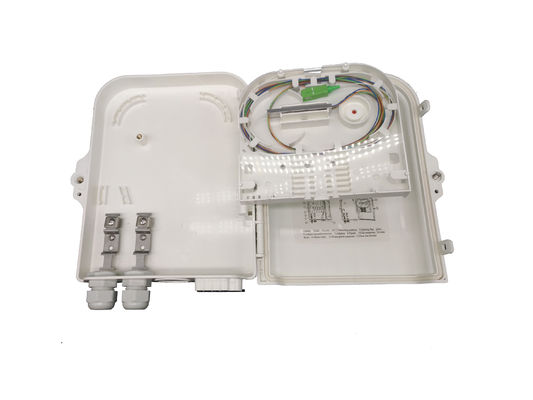

The rotate plate back is for splitting and fusion. It can fix 2pcs splitter tube of 1*2 1*4 1*8 splitter, and 6slots for maximum 12cores fiber fusion, dual layer. This part have a transparent cover to protect.

YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor 5

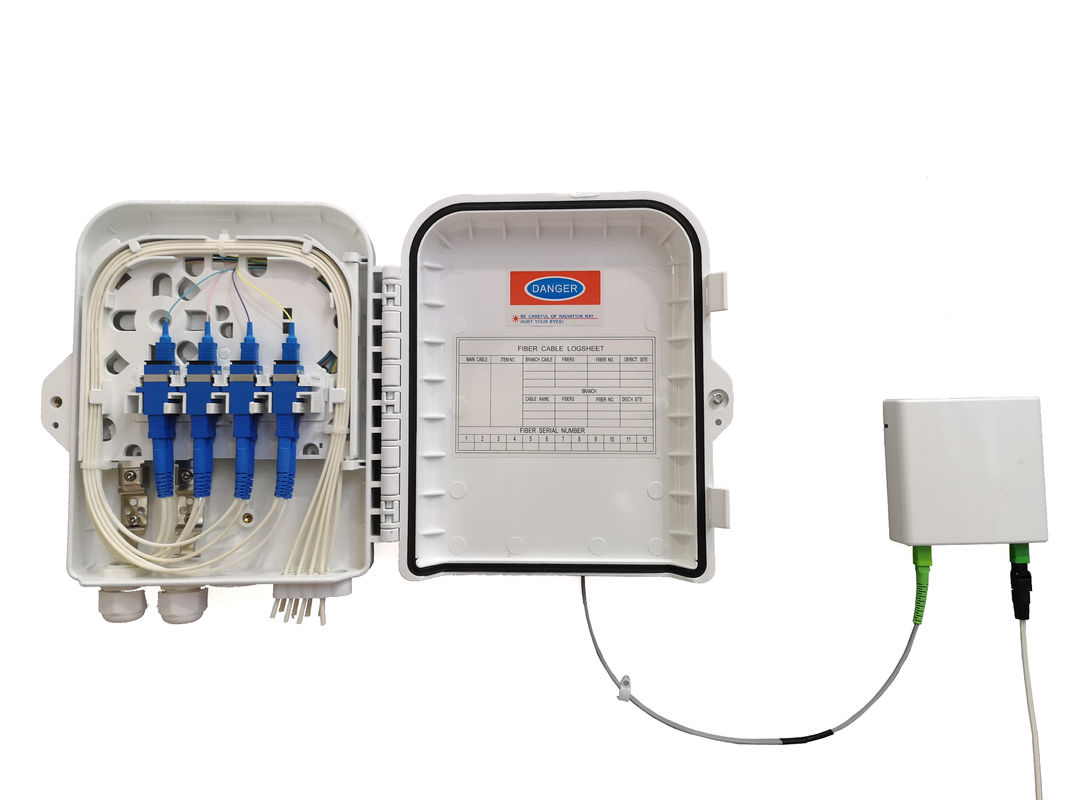

The whole box have waterproof ring around the cover, to make sure it is IP65 protection grade, and except laser mark, we paste instruction wiring labels for construction worker.

YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor 6



We will configurate a accessory bag before delivery in the box, include mounting screws, cable clamps, nylon tie, and sleeve, etc.

YINGDA FTTH 8 Cores Plastic Pole Mounting Fiber Optic Splitter Distribution Box Drop Cable 3mm for Indoor 7
