3 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box

3 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box

  • High Light

    optical distribution box

    ,

    splitter distribution box

  • Material
    ABS+PC
  • Dimension
    199*160*46mm
  • Cable Ports
    3 Pcs
  • Color
    White
  • Max. Capacity
    8 Cores SC, 16 Cores LC Duplex
  • PLC Splitter
    1x2, 1x4, 1x8 Mini Module Splitter
  • Usage
    Indoor Or Outdoor Use
  • Installation
    Wall Mount
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0208D
  • Minimum Order Quantity
    100pcs
  • Price
    Negotiable
  • Packaging Details
    1pc/box, 40pcs/carton box
  • Delivery Time
    5-8 working days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10000pcs per month

3 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box

3Ports 8Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box



This IP65 distribution box offers the ability to terminate 8 fibres housed in a robust ABS enclosure for indoor and outdoor applications. With the ability to use SC Simplex and LC Duplex adaptor types offering a flexible solution to the end user, enabling them to incorporate a multi functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibres.



In addition to the interchangeable adaptors, the enclosure also offers up to 8 exit points for patching cables and 1 standard cable entry point for loose tube, tight buffer, pre-terminated and steel tape armoured cable.



Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front cover allowing for quick and easy installation.



Features

  • Up to 8 fibres, 8 adapter positions
  • Removable splice tray for easy installation
  • Multiple adapter options available
  • Accepts loose tube, distribution and pre terminated cables
  • Integrated bend radius protection
  • Sealing glands for up to 8 exiting cables + 1 incoming cable
  • Removable cover for ease of installation
  • ROHS, REACH & SvHC compliant
  • Supplied with 8 heatshrink splice protection sleeves
  • Supplied with transit tubing
  • Supplied with wall fixings and tie wraps
  • IP 65



Application

  • Data centres, premise installations, telecommunication networks
  • Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
  • Data communication and telecommunication networks
  • Indoor /outdoor applications



Specifications

Model FDB0208D
Box Size 199*160*46mm
Net weight 0.44kg
IP rating IP65
Suitable for adaptor type 8 SC Simplex or LC Duplex
Number of fibres 8
Number of ports 3
Material ABS
Colour White
Operating temperature -40°C to +60°C
Designed in accordance with TIA/EIA 568.C, EN50173, IEC60304, IEC61754, EN297-1, ISO/IEC 11801
Compliant to RoHS, Reach/SVHC



Packing informations

Model Qty/Carton Box G.W./KGS Size/Carton Box
FDB0208D 40PCS 19.5KGS 75*23*52cm



More details



Install the adapters into the box.

3 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 03 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 1

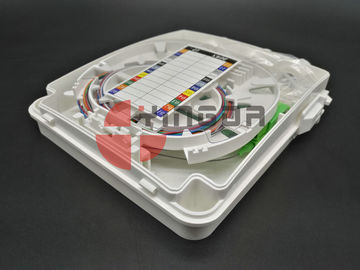

Splice tray can splice max. 8 cores, splicing pigtails or PLC splitter.

3 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 23 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 3



Three cable ports include 1 inputs and 2 outports. There is a buckle to fix the main fiber cable inside of the input.

3 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 43 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 5



The side of the box shows as below.

3 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 63 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 7

3 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 8



Show the back of box with size.

3 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 93 Ports 8 Cores Fiber Optic Terminal Box with 1x8 SC/APC PLC Splitter Outdoor Distribution Box 10



If want to learn more about informations, please contact with us.
