FDB0208B is designed to connect feeder / distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.
It is excellent sealing performance, the protection grade is IP65. It can use SC or LC duplex adapter, the max. micro splitter is 1x8.
The optical splitter box is suitable for various usage scenarios: indoor, outdoor, wall hanging, hanging rod, the old and new buildings.
The molding plastic box, installation backplane design, beautiful shape, compact size, convenient and quick installation,convenient large-scale construction.
The splitter box can use for indoor cable and PLC splitter, also can use for fiber optic adapters SC LC.
Easy to install, repair and change.
The factory pre-assembly terminated with pigtail, adapter or PLC splitter if customer requires. Make sure high quality and low cost but rapid deployment.
Outdoor use, wall and pole mountable.
3 inlet ports, 8 outlet ports.
lndustry standard user interface, made of high impact plastic PC+ABS, IP65.
Can install 1x4 & 1x8 Planar lightwave circuit coupler.
Anti-UV, Ultra violet resistant and rainfall resistant.
PLC 1x4 (2pcs); PLC 1x8(1pc)
Cable input port
Max. 3 ports (Max. dia. : 12 mm)
Cable output capacity
Max. 8 ports (Max. dia. : 3 mm)
-40 ~ +85°C
≥ 450 kg, @10 mm/min
35kgcm/(normal temp.), 10kg/ (-30) °C
≥ 450 kg/am, @10 mm/min
FTTH access network

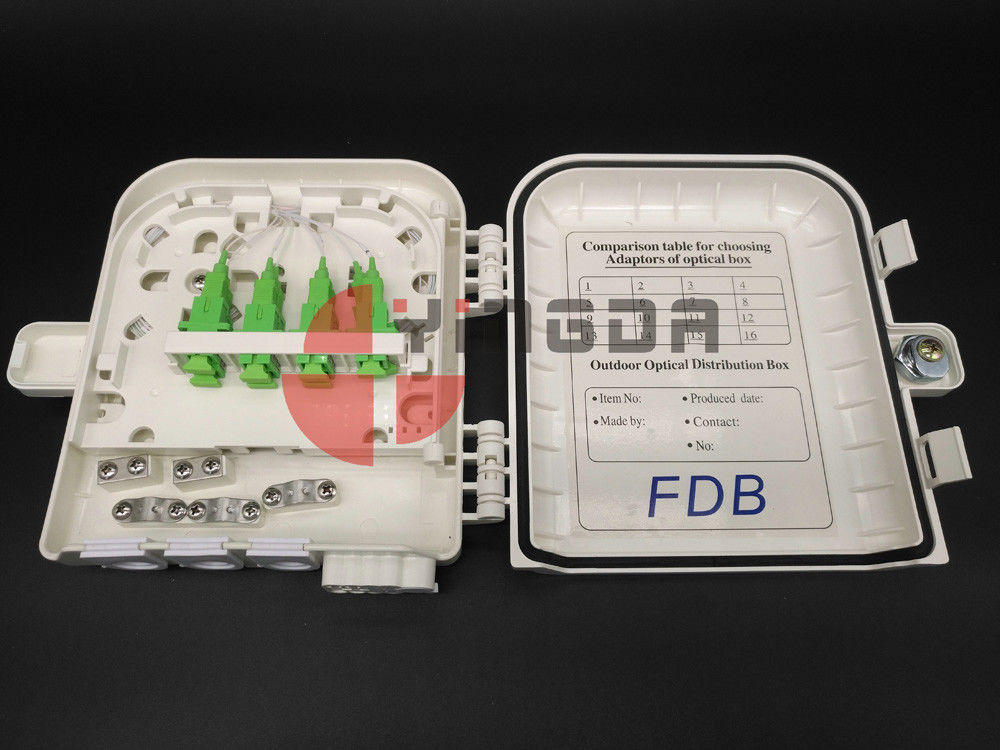

The adapter panel like below. There is a stainless steel screw for fixing the adapter panel and the base of box.

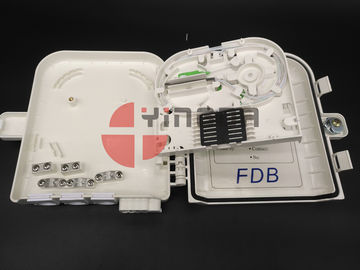

It is the back of the adapter panel. Box can install 2pcs 1x4 mini plc or 1pc 1x8 plc splitter and there are two groove to place the plc steel tube.

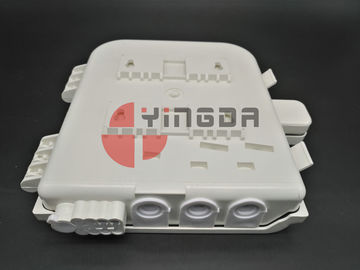

The 3 cable inports can be used as uncut ports, all metal parts are stainless steel.
