8 Ports Fiber Optic Splitter Box Uncut Cable Ports , With 1x8 LGX PLC splitter
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | ABS+PC | Cable Inport | 3 Pcs |
|---|---|---|---|
| Cable Output | 8 FTTH Drop Cable | Dimension | 205*215*55mm |
| PLC Splitter | 1x2, 1x4 Or 1x8 LGX Module Splitter | Color | Black Or White |
| Installation | Wall Mount, Pole Mount | Customer Lable | OK |
| Application | FTTH | ||
| High Light | fiber optic closure,splitter distribution box |
||
Product Description
8 Ports Fiber Optic Splitter Box Uncut Cable Ports, With 1x8 LGX PLC splitter

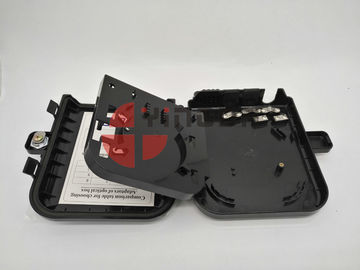

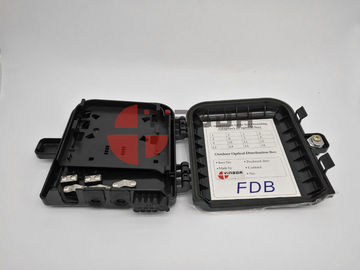

FDB0208B is designed to connect feeder / distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.
It is excellent sealing performance, reusable. Protection grade is IP 65. It can use SC or LC duplex adapter, and maximum micro splitter 1x8.
Features
- 3inputs, 8outputs
- Industrial standard user interface max. 8pcs SC/LC duplex
- Made of high impact engineering plastic
- Can accommodate 1x4, 1x8 LGX PLC splitter
- Anti-UV, Ultra violet resistant and rainfall resistant
- Outdoor wall mount or pole mount
- Up to 8FTTH drops
Applications
- FTTH access network
- Telecommunication
- LAN, CATV
- Data communications
Specifications
| Model | FDB0208B |
| Dimension (W*D*H)mm | 205*215*55 |
| Max.Capacity | PLC 1x4 (1pc); PLC 1x8(1pc); 8 cores |
| Cable ports | 3inputs(uncut ports),8outputs |
| Cable input port | Max. 3 ports (Max. dia. : 12 mm) |
| Cable output capacity | Max. 8 ports (Max. dia. : 3 mm) |
| Operation Temperature | -40 ~ +85°C |
| Tensile Strength | ≥ 450 kg, @10 mm/min |
| Impact Strength | 35kgcm/(normal temp.), 10kg/ (-30) °C |
| Flexural Strength | ≥ 450 kg/am, @10 mm/min |
More details

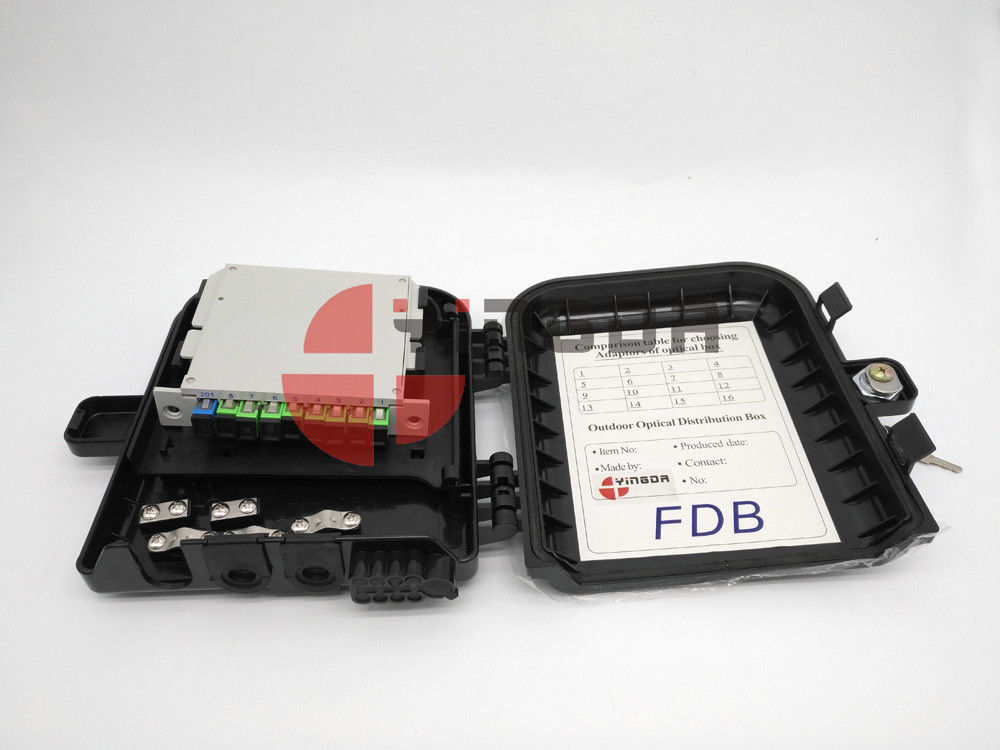

- The box installs max. 1x8 SC LGX module PLC splitter, white or black color available.
- All metal parts are stainless steel.

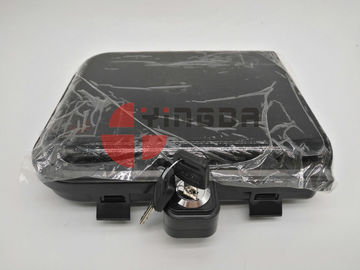

- Use key to close the box.

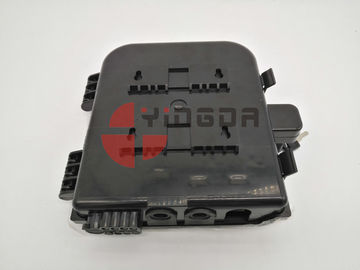

Back Cover
There are 3pcs cable inports that can be used as uncut ports, the dia. max. 12mm. The 8 pcs outports can go through 2*3 FTTH drop cable.
Packing informations
| Model | Qty/Carton Box | G.W./KGS | Size/Carton Box |
| FDB0208B | 20PCS | 14KGS | 61*23*45cm |
