Optical 1x8 LGX PLC Fiber Optic Splitter Box , 2in 8out outdoor FTTH splitter box

Optical 1x8 LGX PLC Fiber Optic Splitter Box , 2in 8out outdoor FTTH splitter box

  • High Light

    optical distribution box

    ,

    splitter distribution box

  • Cable Inport
    2 Pcs
  • Output
    8 FTTH Drop Cable Figure-8
  • Capacity
    8 Fibers
  • PLC Splitter
    1:2, 1:4 Or 1:8 LGX Module Splitter
  • Dimension
    205*215*55mm
  • Material
    ABS+PC
  • Color
    Black Or White
  • Application
    FTTH
  • Customer Logo
    OK
  • Sample
    OK
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0208B
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / box, 20 pcs/ carton box
  • Delivery Time
    5-8 working days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    5000pcs per month

Optical 1x8 LGX PLC Fiber Optic Splitter Box , 2in 8out outdoor FTTH splitter box

Optical 1x8 LGX PLC Distribution Box, 2in 8out outdoor FTTH splitter box



FDB0208B is designed to connect feeder / distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray. It is excellent sealing performance, reusable. Protection grade is IP 65. It can use SC or LC duplex adapter, and maximum micro splitter 1x8.



Features

  • 2inputs, 8outputs
  • Industrial standard user interface max. 8pcs SC/LC duplex
  • Made of high impact engineering plastic
  • Can accommodate 1x2, 1x4, 1x8 LGX module PLC splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 8FTTH drops



Application

  • Data centres, premise installations, telecommunication networks
  • Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
  • Data communication and telecommunication networks
  • Indoor /outdoor applications



Specifications

Model FDB0208B
Dimension (W*D*H)mm 205*215*55
Max.Capacity LGX Module PLC 1x2(1pc);1x4(1pc);1x8(1pc)
Cable ports 2inputs (1more optional), 8outputs
Cable diameter(mm) In:Φ12, out:Φ2*3
Adapter Max. 8pcs SC



More pictures

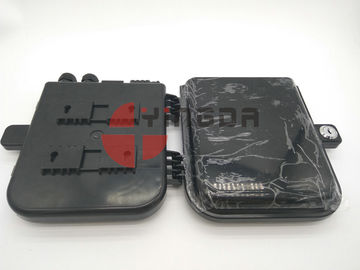

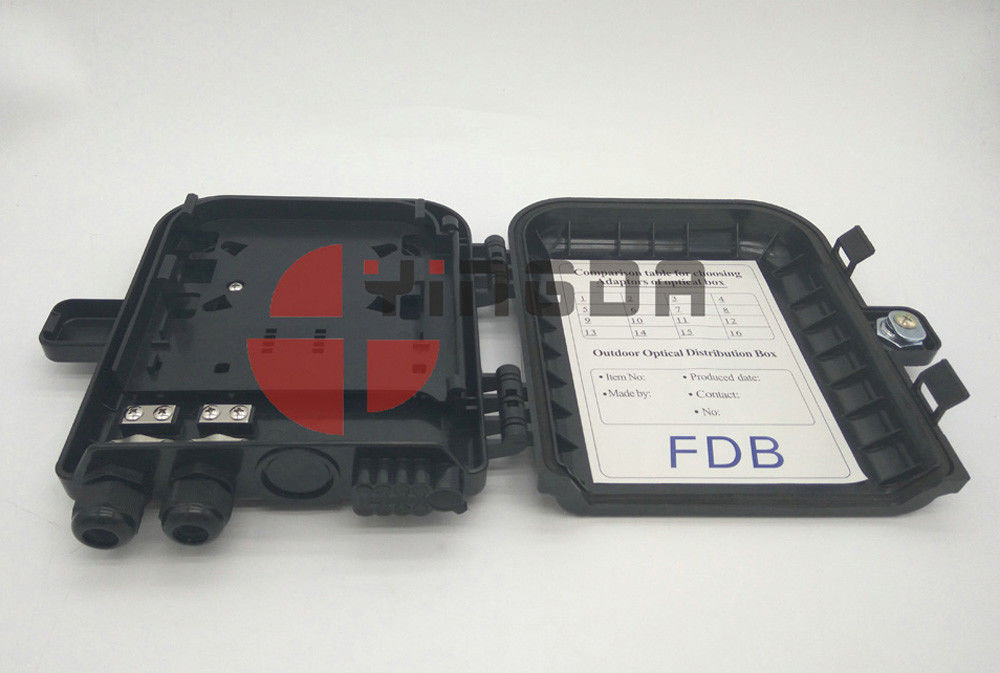

1. The LGX Module PLC Panel As Below.

     It can install 1pc 1x2, 1x4 or 1x8 LGX Module PLC Splitter.

Optical 1x8 LGX PLC Fiber Optic Splitter Box , 2in 8out outdoor FTTH splitter box 0Optical 1x8 LGX PLC Fiber Optic Splitter Box , 2in 8out outdoor FTTH splitter box 1

                                 Front                                                                     Back

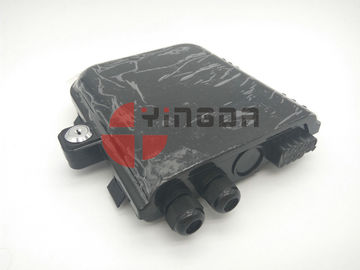

2. Cable ports and seal method.

    The cable ports is 2inputs(cable glands)+8pcs outputs. The box closed type is key and two buckles.

Optical 1x8 LGX PLC Fiber Optic Splitter Box , 2in 8out outdoor FTTH splitter box 2

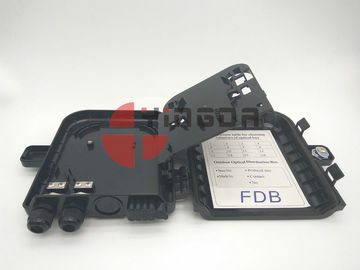

3. The back of splitter box.

    The back side shows that this box can use wall mounted and pole mounted. If need pole mounted,              please tell us, we will offer you the pole mount kits.

Optical 1x8 LGX PLC Fiber Optic Splitter Box , 2in 8out outdoor FTTH splitter box 3



4. Standard accessories

Optical 1x8 LGX PLC Fiber Optic Splitter Box , 2in 8out outdoor FTTH splitter box 4
