Fiber Optic Splitter Box
Created with Pixso. 24 Cores Drop Cable Fiber Opitc Termination Box , 24 pcs SC Fiber Optic Splitter Box PC+ABS Flip Cover

24 Cores Drop Cable Fiber Opitc Termination Box , 24 pcs SC Fiber Optic Splitter Box PC+ABS Flip Cover

Brand Name: YINGDA
Model Number: FDB0224H
MOQ: 100pcs
Price: negotiable
Delivery Time: 1week
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Color:
Black
Material:
PC+ABS
Protection Grade:
IP66
Cable Ports:
2 Inputs, 24 Outputs
Max Capacity:
24fibers
Splitter Type:
1*4, 1*8,1*16 Micro Splitter
Sample:
Ok
Packaging Details:
1PC/BOX,10PCS/CARTON
Supply Ability:
100k per month
Highlight:

fiber optic closure

,

optical distribution box

Product Description

24 Cores Drop Cable Fiber Opitc Termination Box, 24 pcs SC Fiber Optic Splitter Box PC+ABS Flip Cover





The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Features

  • Waterproof design with IP-66 protection level.
  • Integrated with splice cassette and cable management rods
  • Manage fibers in a reasonable fiber radius cnodition
  • Easy to maintain and extend the capacity
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splice or mechanical splice
  • 1*16 splitter can be installed as an option
  • Efficient cable management
  • 24 ports for drop cable outports



Specification

Model FDB0224H
Dimension (A*B*C) mm 340*250*110
Max. Capacity 24cores
Max. Adapter 24 pcs SC simplex, no need screws
Max. Splitter PLC 1*16 wtih SC connecctor
Material ABS+PC
Installation size (D*E) mm 154*82
Weight 1.5kg
Color Black, white



More details:

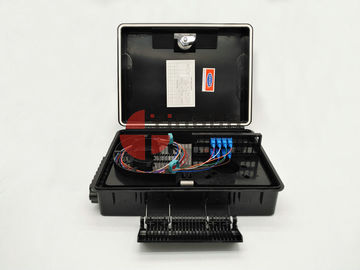

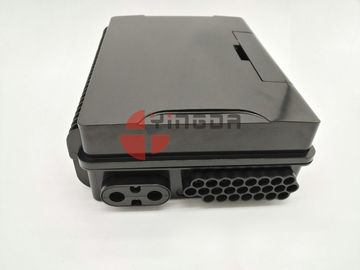

        Cable inputs:  2round ports                         Cable outputs: 24round for drop cable or 3mm indoor



24 Cores Drop Cable Fiber Opitc Termination Box , 24 pcs SC Fiber Optic Splitter Box PC+ABS Flip Cover 0 24 Cores Drop Cable Fiber Opitc Termination Box , 24 pcs SC Fiber Optic Splitter Box PC+ABS Flip Cover 1

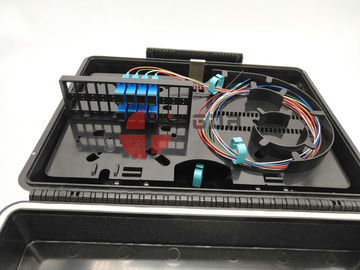

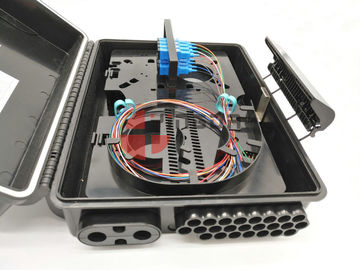

24pcs SC adapter, can use screws or not                     enough fiber storage  space with rings



24 Cores Drop Cable Fiber Opitc Termination Box , 24 pcs SC Fiber Optic Splitter Box PC+ABS Flip Cover 2 24 Cores Drop Cable Fiber Opitc Termination Box , 24 pcs SC Fiber Optic Splitter Box PC+ABS Flip Cover 3

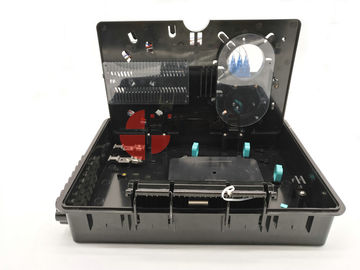

fiber tray for fusion, splitter fix, and storage                      lock with key

24 Cores Drop Cable Fiber Opitc Termination Box , 24 pcs SC Fiber Optic Splitter Box PC+ABS Flip Cover 4 24 Cores Drop Cable Fiber Opitc Termination Box , 24 pcs SC Fiber Optic Splitter Box PC+ABS Flip Cover 5



Specification:

Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kpa



Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:>1000 times



Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V (DC); IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover: U≥3000V
