FTTH Drop Cable
Created with Pixso. 24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath
24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath
  • Name
  • Name
  • Name
  • Name

24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath

Brand Name: YINGDA
Model Number: ADSS
MOQ: 2km
Price: negotiable
Delivery Time: 10 days after payment
Payment Terms: Western Union, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Fiber Count:
24cores To 144cores
Fiber Type:
G652D G657A
Sheath Mateiral:
PE

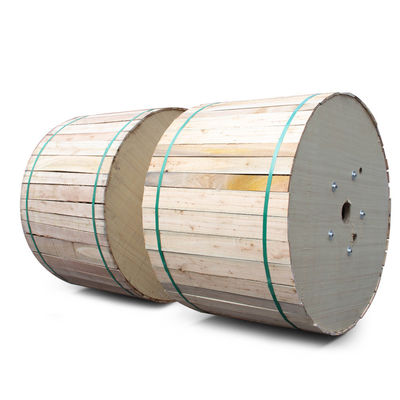

Package:
4KM Per Drum Reel
Cable Color:
Fiber Code
Span:
100meter, 200meter, ... 1000meter
Packaging Details:
2km/reel
Supply Ability:
100,000 pcs per month
Highlight:

ftth fiber optic cable

,

fiber optic drop cable

Product Description

24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath

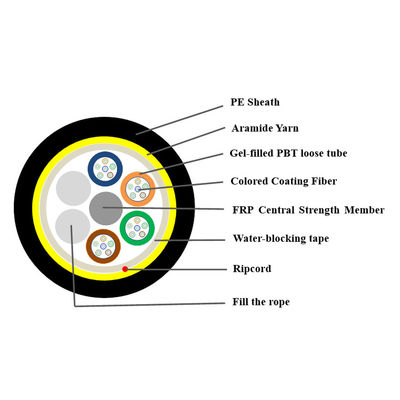

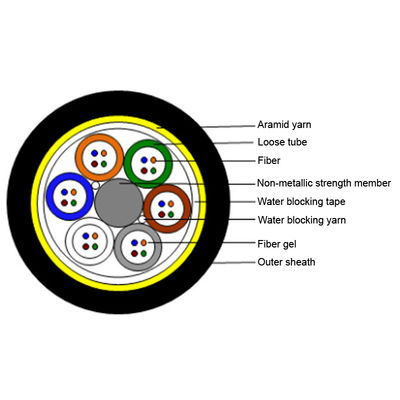

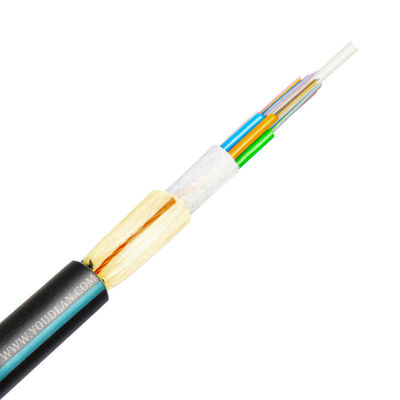

The ADSS optical cable adopts a loose layer twisted structure, which wraps 250um fibers into a loose tube made of high modulus material, and the loose tube is filled with waterproof compounds. The loose sleeve and filled rope tail sleeve are non-metallic center reinforced FRP twisted into a compact cable core, and the gaps of the cable core are filled with water blocking ointment. Extrude the polyethylene PE inner sheath outside the cable core, then twist the aramid fiber that serves as a reinforcement, and finally extrude the polyethylene PE sheath or electric trace resistant AT sheath.



Self Support Cable Technical parameters

Outer diameter (mm) Weight (kg/km) Daily maximum working tension (KN) Maximum sequential working tension(KN) Breaking strength(KN) Tensile element cross-sectional area(mm2) Elastic limit (KN/mm2) Thermal expansion coefficient (1/℃*10-6) Suitable for meteorological conditions corresponding to span
PE sheath AT sheath A B C D
12.5 125 136 1.5 4.0 10 4.6 7.6 1.8 160 100 140 100
13 132 142 2.3 6.0 15 7.6 8.3 1.5 230 150 200 150
13.6 145 156 3.6 10.0 24 13.8 10.8 1.2 370 250 350 250
14.9 171 185 6.8 18.0 45 22 16.4 0.6 570 380 550 380
15.5 190 204 9.0 26.0 60 32.2 19.1 0.1 750 530 750 510
16.8 226 242 15.5 41.0 103 48 24 0.4 1000 750 1000 760
Storage and usage temperature: -20 ℃~+60 ℃ (the above data is for reference only)

24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath 0

ADSS Cable Features

  • Lightweight, small cable diameter, reducing the impact of ice and wind, as well as the load on towers and supports
  • Adopting AT sheath, with superior resistance to electric marks
  • Excellent tensile and temperature performance
  • Capable of continuous electrical installation
  • The span is huge, and the maximum span can exceed 1000 meters
  • The expected lifespan is greater than 30 years.



24Cores ADSS Advantages



1. A-grade optical fiber, with longer transmission distance         2. High strength FRP reinforced core, high strength,

and smaller attenuation for higher temperature transmission.        square interference, non-conductive, anti-corrosion

24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath 1                  24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath 2





3. PE/AT sheath has high strength, aging resistance,                  4. Imported aramid yarn with high corrosion resistance

resistance to electric marks, and long service life                             and tensile strength

24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath 3 24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath 4





5. Non metallic structure, resistant to electromagnetic                 6. High quality loose tube to protect optical fibers

interference and lightning protection                                                 from internal and external pressure

24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath 5                     24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath 6

24Cores All dielectric Self Supporting Power Optical Cable ADSS G652D PE AT Sheath 7
