4 Ports FTTH Optical Fiber Termination Box Pre-terminated CTO 12 Cores Fusion Splice Box

4 Ports FTTH Optical Fiber Termination Box Pre-terminated CTO 12 Cores Fusion Splice Box

  • High Light

    fiber optic terminal box

    ,

    fiber optic distribution box

  • Color
    Gray
  • Type
    Mini Fiber Access Terminal CPE
  • Cable Port
    2in, 4out Fiber Terminal Box
  • Material
    ABS Fiber Optic Box
  • Max. Fusion
    12 Cores Ftth Optical Terminal Box
  • Max Adapter
    4pcs SC LC ST FC
  • Application
    FTTH Wall Mounted End User Box
  • Dimension
    152*107*31 Mm
  • Customer Logo
    Ok
  • Sample
    Ok
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,CE, ROHS
  • Model Number
    FTB104F
  • Minimum Order Quantity
    100 PCS
  • Price
    negotiable
  • Packaging Details
    1pc/box,100pcs/carton box
  • Delivery Time
    5-7days
  • Payment Terms
    Western Union, MoneyGram, T/T, L/C

4 Ports FTTH Optical Fiber Termination Box Pre-terminated CTO 12 Cores Fusion Splice Box

4 Ports FTTH Optical Fiber Termination Box Pre-terminated CTO 12 Cores Fusion Splice Box

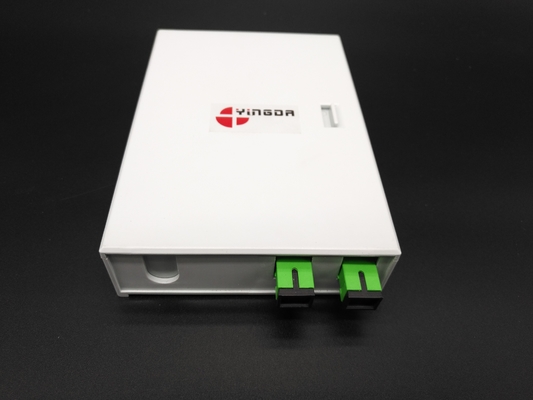

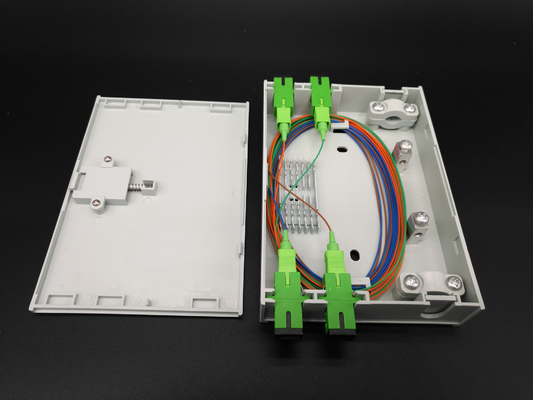

FTB104F Fiber mini box is designed specially for FTTx application, which suits for jointing fibers pigtail and it protects fiber optic splices and helps to distribute cable in ftth indoor fiber access terminal application. It is maximum can termiated into 4 end users.





Features

  • light weight, small size, easy installation

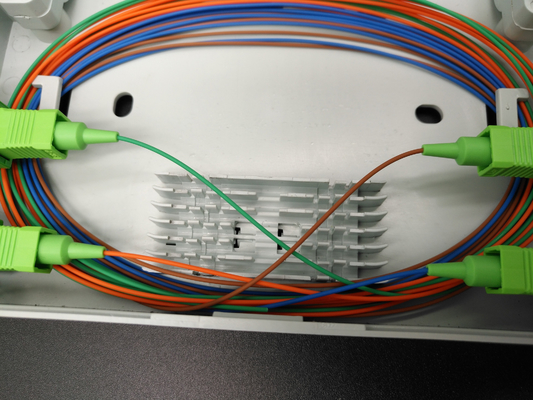

  • Provide splice protection of fiber cable and pigtail
  • Made of high strenght engineer plastic, nice shape

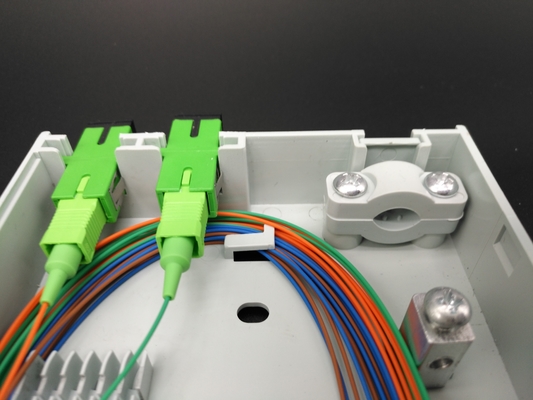

  • Suitable for SC, FC or ST LC adapter, quantity 4pcs
  • No need screws , it is easy to close and open with clip
  • Max capacity 12cores
  • Indoor wall mounting application

Specification

Model FTB104F

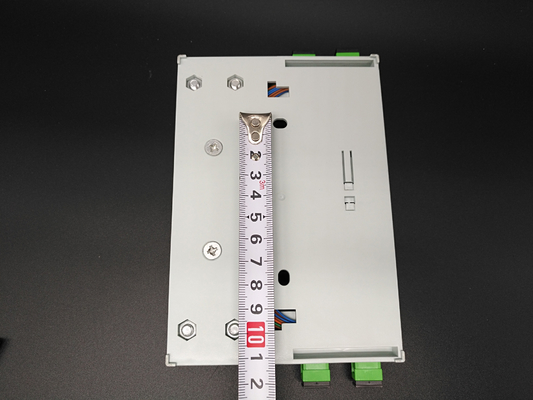

Dimension(mm) (LXWXH) 152x107x31
Cable port 2
Fiber count 12
Max.Pigtail 12
Max.Adapters 4 SC / LC duplex
Material ABS
Color gray

4 Ports FTTH Optical Fiber Termination Box Pre-terminated CTO 12 Cores Fusion Splice Box 04 Ports FTTH Optical Fiber Termination Box Pre-terminated CTO 12 Cores Fusion Splice Box 14 Ports FTTH Optical Fiber Termination Box Pre-terminated CTO 12 Cores Fusion Splice Box 24 Ports FTTH Optical Fiber Termination Box Pre-terminated CTO 12 Cores Fusion Splice Box 3

Standard accessories

Sand paper 1pcs
Nylon tie 4pcs
Heat shrinkable tube 6pcss
Wall mount expansion screws 2pcs
Drop cable clip 6pcs
Number mark 1set
