Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box

Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box

  • High Light

    fiber optic terminal box

    ,

    fiber optic distribution box

  • Color
    Gray
  • Type
    Mini Fiber Access Terminal
  • Cable Port
    2in,4out
  • Material
    ABS
  • Max. Fusion
    12fibers
  • Max Adapter
    4pcs SC LC ST FC
  • Application
    FTTH Wall Mounted
  • Dimension
    152*107*31mm
  • Customer Logo
    Ok
  • Sample
    Ok
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB104F
  • Minimum Order Quantity
    500PCS
  • Price
    negotiable
  • Packaging Details
    1pc/box,100pcs/carton box
  • Delivery Time
    5-7days
  • Payment Terms
    Western Union, MoneyGram, T/T, L/C

Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box

Indoor Plastic 12Cores FTTH Fiber Optic Termination Box, ABS PC 2 Ports Wall Mount Fiber Optic Box



Model:FTB104F





FTB104F Fiber optic terminal box is designed specially for FTTx application, which suits for jointing fibers pigtail and it protects fiber optic splices and helps to distribute, it can use variety of adapters maximum 4pcs.



Application

  • FTTX
  • Telecommunications
  • CATV network
  • LAN,WAN network



Features

  • Made of high strength plastic, good quality and outer appearance
  • Light weight, compact size
  • Clip lock and open without screws, make it easy installation or repair
  • Indoor wall mounted with screws
  • Max. 12fibers fusion
  • Max. 4pcs SC/FC/LC/ST adapters
  • Pre-terminated pigtails or adapters is available.
  • OEM or sample is ok
  • 100% test at factory before shipment

More pictures

Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box 0Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box 1

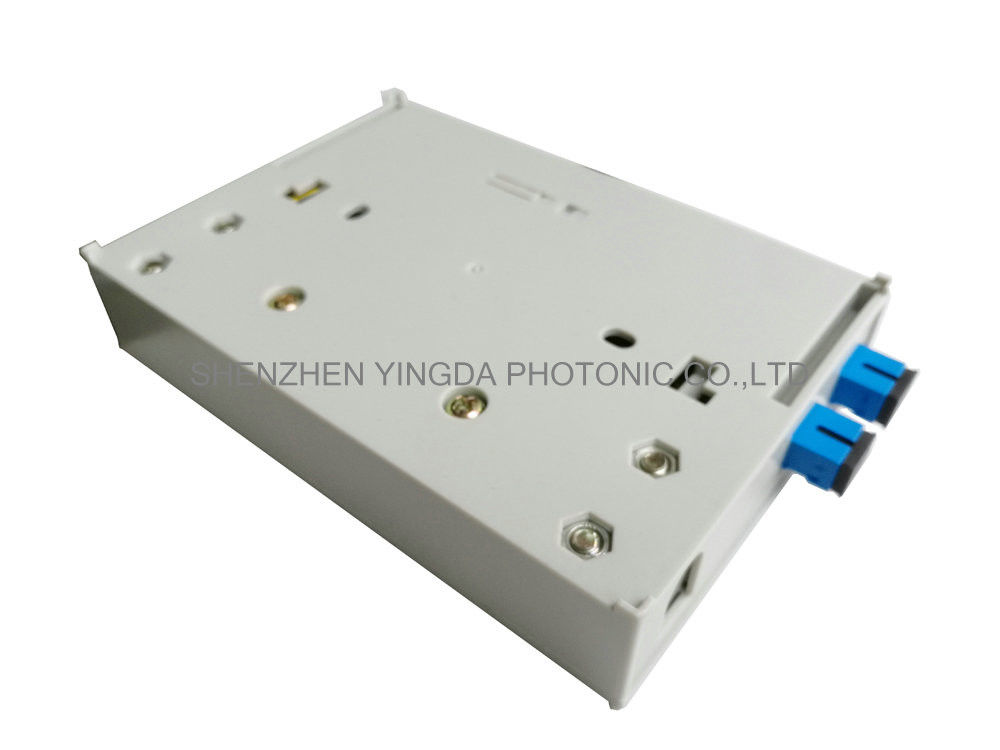

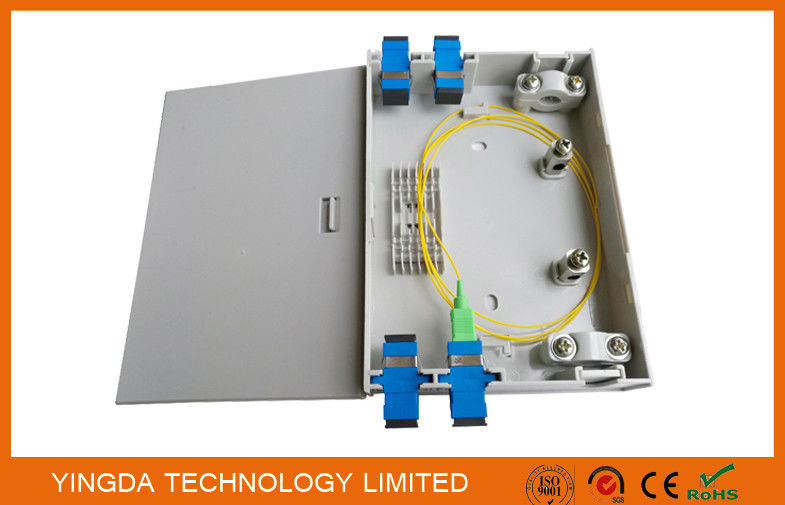

  • wall mount holes with 2x expansion screws equipped
  • each box can use 2pcs SC adapter at front and back.
  • cable port:2in, 4out
  • box with clip lock design

Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box 2Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box 3

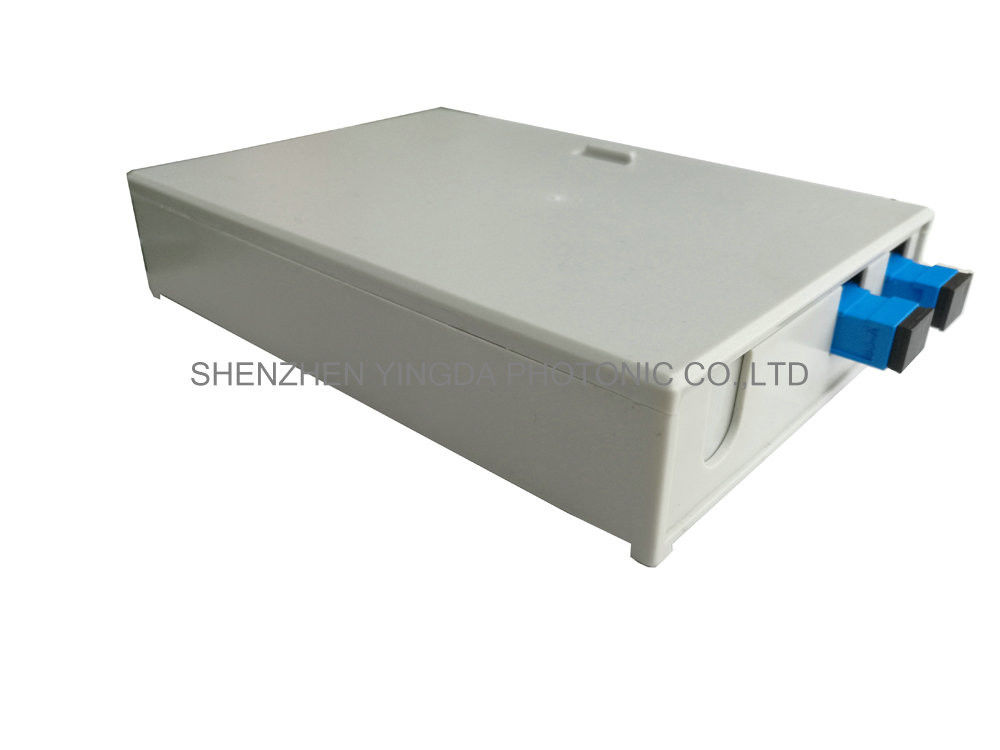

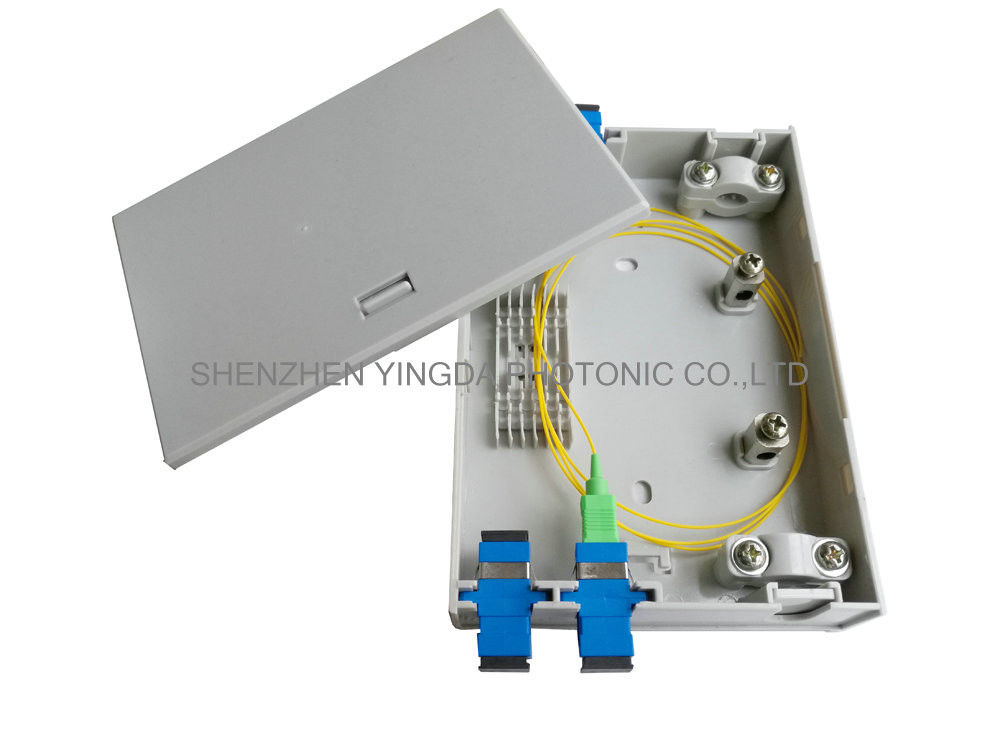

  • all metal parts are stainless steel
  • max. fusion 12fibers with splice holder,cable fixtures,etc





Specification



Model FTB104F
Dimension(mm) (LXWXH) 152x107x31
Cable port 2
Fiber count 12
Max.Pigtail 12
Max.Adapters 4
Material ABS
Color gray



Standard accessories

Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box 4Wall Mount FTTH Fiber Optic Termination Box , Indoor Plastic ABS PC 2 Ports Fiber Optic Box 5

Sand paper 1pcs
Nylon tie 4pcs
Heat shrinkable tube 6pcss
Wall mount expansion screws 2pcs
Drop cable clip 6pcs
Number mark 1set
