| Brand Name: | YINGDA |
| Model Number: | FDB0216G |
| MOQ: | 200pcs, first order accept small order |
| Price: | negotiable |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |

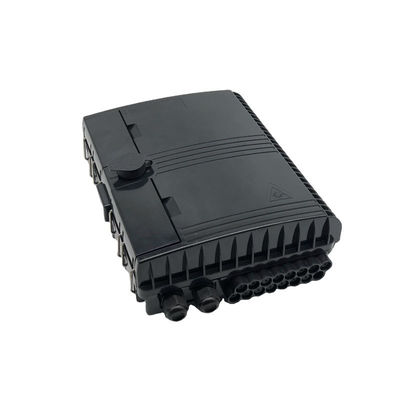

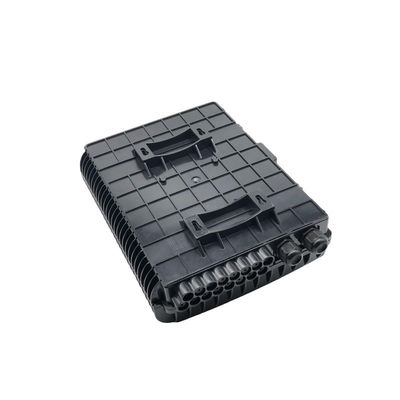

Outdoor Mid Span Optical Splitter Distribution Box Black ABS for 1x16 PLC Splitter
FDB0216G optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
Technical Specification
| Dimensions (W*H*D) |
292*218*83mm |
| Adapter Capacity | SC 8; LC 16; PLC 1X8. |
| Number of Cable Entrance/Exit | 2/12 |
| Optional Accessories | Adapters, Pigtails,PLC splitter |
| Insertion loss | ≤0.2dB |
| UPC return loss | ≥50dB |
| APC return los | ≥60dB |
| Life of insertion and extraction | >1000 times |
| Weight | 1.0KG |
| Max diameter of entry cable | 16mm |
| Operation Condition | |
|
Temperature -40℃ -- 60℃ Humidity 93% at 40℃ Air Pressure 62kPa–101kPa |
|
| Shipping Information | |
|
Quantity/Carton: 10pcs Carton size: 60*35*51cm Gross weight/Carton: 16.9kg |
|
Product Details
Total box is high quality, nice design with fusion, distribution, splitting, storage, and routing in one box, multi-functional.

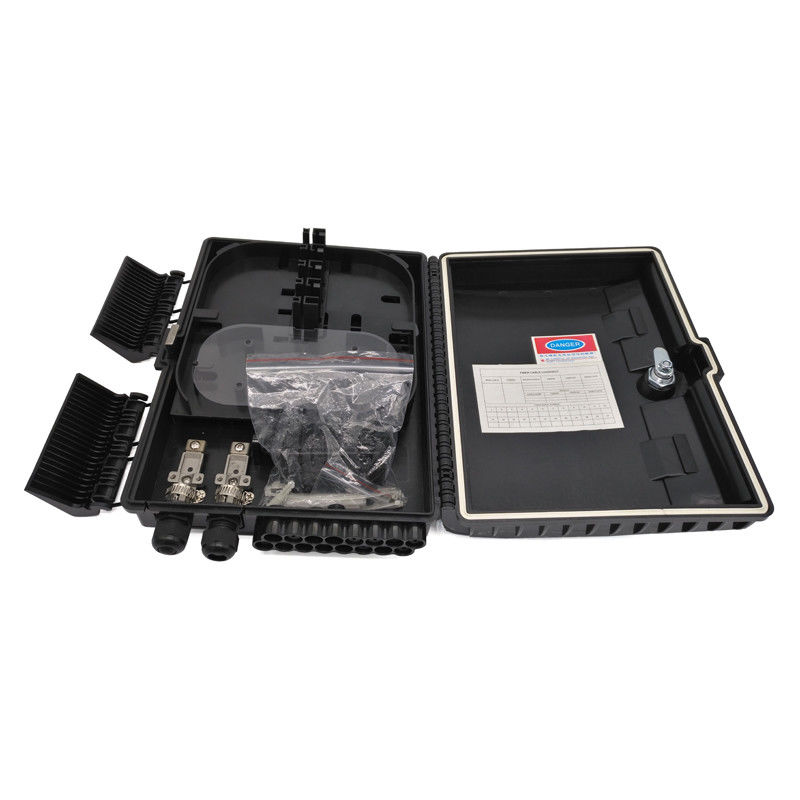

The cable inlet with cable glands PG13.5, IP68 protection grade, and the internal with cable fixture and cable clamps to keep the metal or FRP strength members in place.

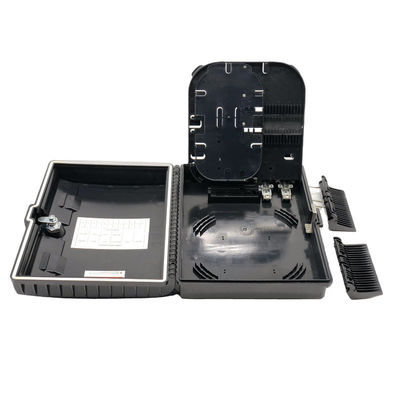

There are a plastic transparent cover for the cable routing area, and 4slots for 16pcs SC adapters in 4ways to fix, no need screws.
On the back of the adapter plate, there is fusion area for maximum 24cores optical fiber, and there is rubber to protect them in place. Beside this slots, there are 2 slots for 2pcs 1x8 mini splitter stainless tube. The size is the same.
The box is enclosed with a speical design waterproof cover lock key and there is OPEN and LOCK size direction.
Except the key, there are 2buckles at sides to keep the box more sealed, high performance and easy to open and use.
The cable ports for this optical distribution box NAP is 2 inports, 16 outports. Input cable ports must be 13.5mm diameter, the output cable ports is 3mm round rubber seals, which can use 3mm or 2x3mm drop cable.
The box is used for outdoor use with waterproof rubber ring around the cover, and the key is metal, long term life span.
Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.
Return and Warranty
All products have been tested before ship out.
All products have 1 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen, our team will do our best to solve.
video
video
|
