FDB Optical Terminal Box FDB0216G



This Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Optical characteristic

Model FDB0216G
Dimension 292*218*83mm
Max capacity 16 cores
Cable port 2 in, 16 out
Adapter qty 16 pcs SC
Cable diameter In:7-10mm, out: 2*3.0mm or indoor cable
Color White, black, gray
Material ABS+PC
Installation Outdoor Pole mounting, wall mounting
Waterproof grade IP65 / 68




Installation dimension



                         A*B*C=292*218*83mm                                               D*E=154*82mm

16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 0

Product Details

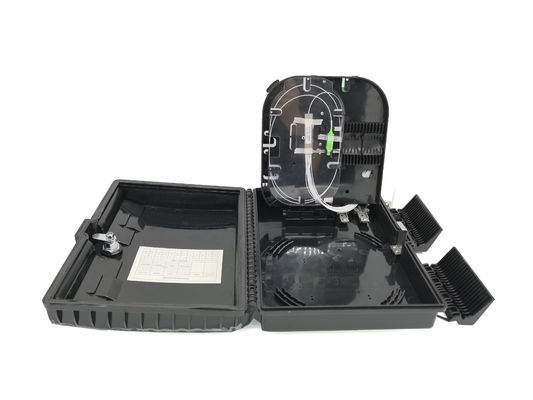

Outer appearance:

waterproof anti-thief locking system.  black color, high strength engineering plastic ABS+PC,ROHS certified.

Arieal mount, wall mounted or pole mounting



16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 1 16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 2

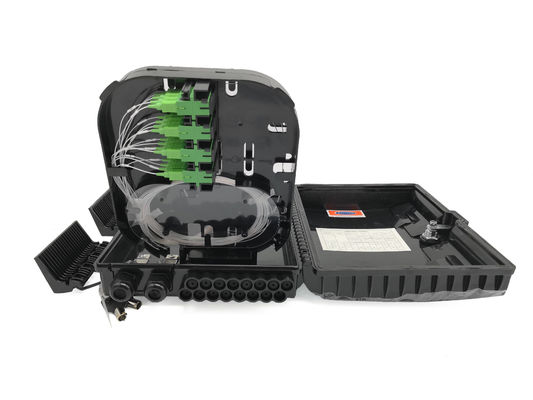

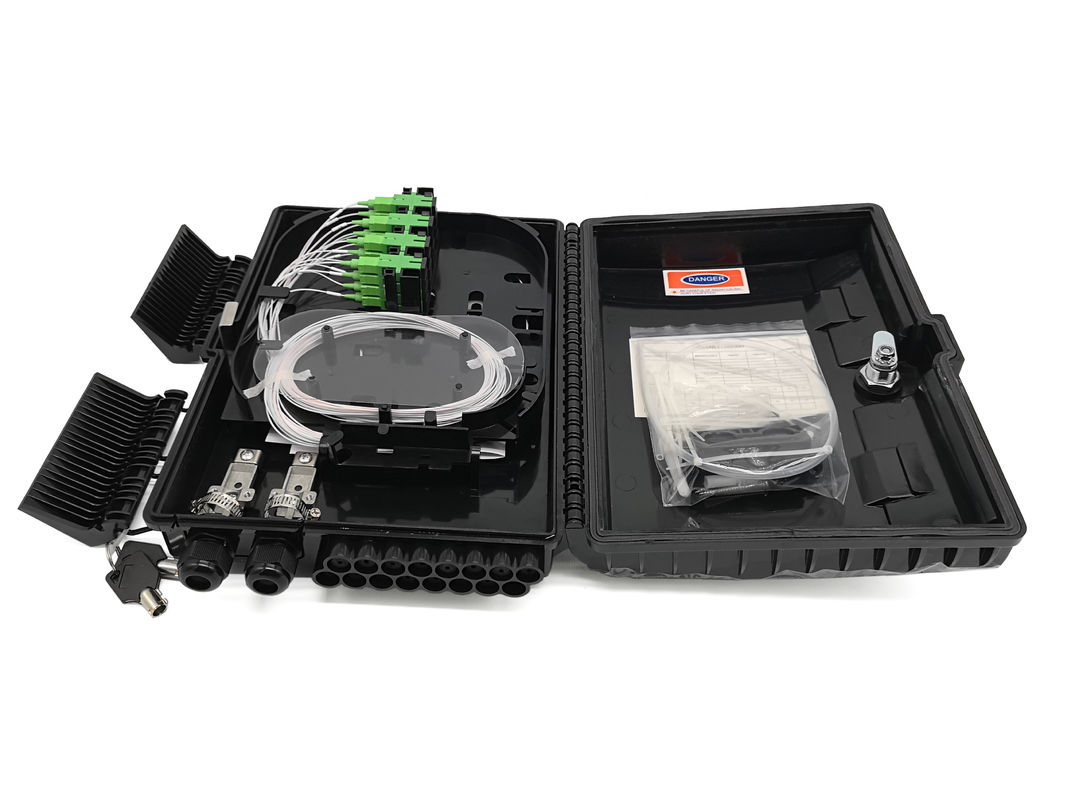

Splitting,Distribution and Fusion Tray

The splice tray is 24cores. two layer: uppper for adapter and storage, lower for splitting, fusion and distribution.

2 types of PLC splitter can used in this box:



       A:Mini PLC splitter with steel tube and output connectors insert into the adapter panel.



 16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 316 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 4



      B: LGX splitter module, then no need adapter panel.

16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 5 16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 6

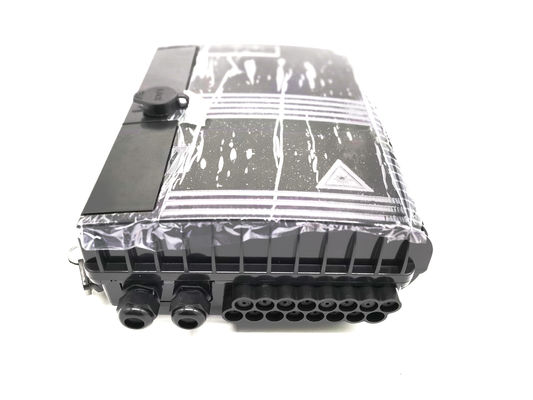

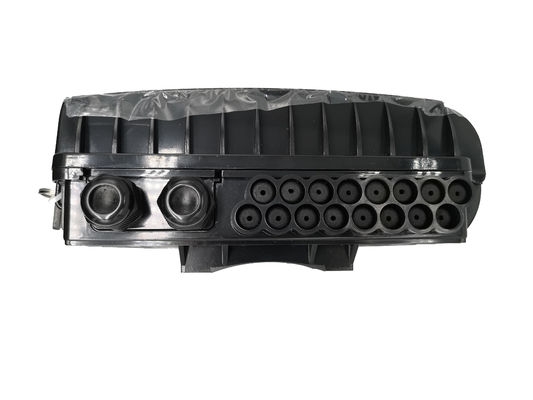

Cable ports:



whole box is 2in, 6out for fiber optic cables. in: 6-10mm, out: 2*3.0mm ftth drop cable or indoor cable

all cable ports with rubber sealing, good protection leve up to IP65.

the cable entry can be cable gland or express port for uncut cable go through the box., easy to operate.

16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 7 16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 8

16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 9 16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 10

Other details:

Inside of the cover, there is label marking for fiber routing, laser mark, waterproof sealing around the box to prevent water, dust.

Metal Key, speical design, can not open by hand.



16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 11 16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 12

16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 13 16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic NAP 14



Features

  • Total close structure, nice shape
  • Protects and manages cable effectively
  • Secured with anti-theft locking mechanism
  • Standard size, light weight
  • High quality PC + ABS material,high strength material
  • Good properties of dust, and moisture proofing, IP65/68
  • Clamping for feeder cable and drop cable, fiber spliding, fixation, storage, distribution, etc in one unit
  • Suitable for SC and LC duplex adaptor and pigtail
  • Easy to operate and re-open
  • Wall mounting or pole mounting
  • Both outdoor and indoor use

Application

  • Telecommunication subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN

Technical data

Work temperature -40°C~+85°C
Reliable humidity ≤85% (+30°C)
Atmospheric pressure 70kPa~106kPa
Insertion loss ≤0.2dB
Return loss upc ≥50dB
Return loss apc ≥60dB
Insert and pull out life ≥1000times
insulation The grounding device is insulated with teh termination box, IR≥1000m Ω/500V (direct current)
Withstand voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover,U≥3000V(direct current)



Order information

Model PLC SPLTITER Spitter qty Adapter Adapter qty Cable entry
FDB0216G 102=1X2 01=1pcs SA=SC/APC 01=1pcs A=cable gland
104=1X4 02=2pcs SU=SC/UPC 02=2pcs B=uncut cable
108=1X8 N=not include LU=LC/UPC 03=3pcs
116=1X16   LA=LC/APC ...
N=not include   N=not include 16=16pcs
