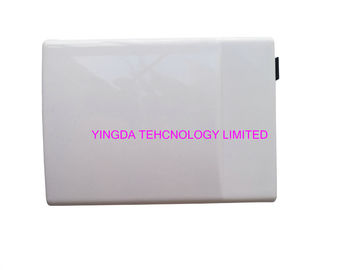

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate





Model:FTB86D



Used in the end termination of residential buildings and villas, to fix and splice with pigtails.



Features

  • Small size, light weight, pleasing in appearance
  • Can be installed on the wall with mechanical protective function
  • May adapt variety of optical connection styles.
  • Optical fiber can be managed effectively
  • Set strengthen device and fiber optic cable mounting seat
  • SC 1cores, LC 2 cores.
  • Max capacity for SC 1 cores or LC 2 cores
  • Suitable for indoor wall mount

Specification



Item FTB-86D
Dimension(mm) H120×W90×D25
Weight(Kg) 0.075
Cable diameter (mm) Φ7~Φ14
Cable port 2 holes
Max capacity of splice tray 2-4(single fiber)
Max No of splice tray 1
Max capacity of cable 4(single fiber)



Kit content



Item Type Quantity
Fiber protective sleeves 60mm According to cores
Cable tie 60mm 10×splice tray

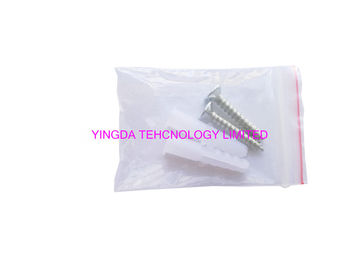

Nails of installation Nail 2pcs



Packing information

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 0 1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 1

Model Dimension (mm) Outer carton dimension (mm) Outer carton weight(kg) No of units per carton(pcs)
FTB-86D 120×90×25 530x390x535 23.0 260





Installation tool

1 Knife

2 Screwdriver

3 Plier

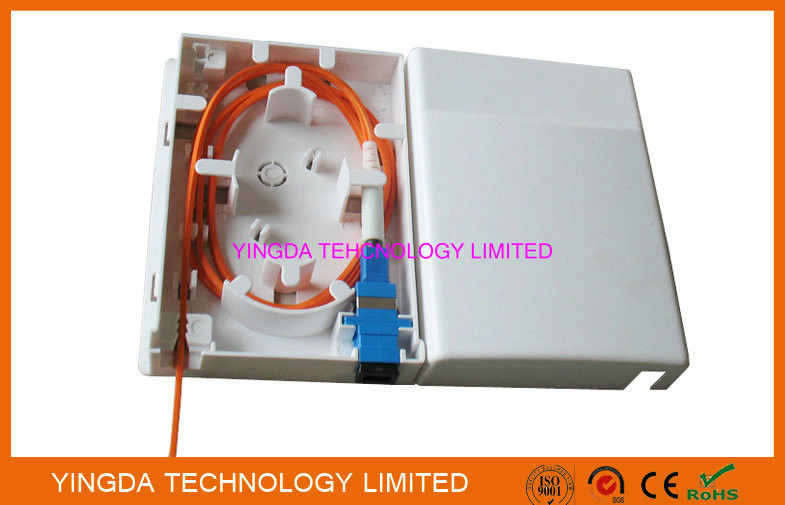

Component

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 2





1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 31 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 4

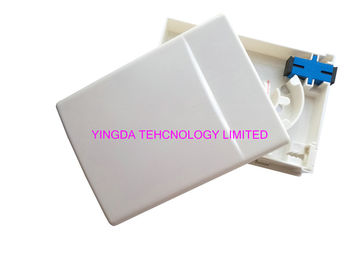

terminal box can use 1x SC adapter, all box include wall mounting accessories.



1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 51 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 6

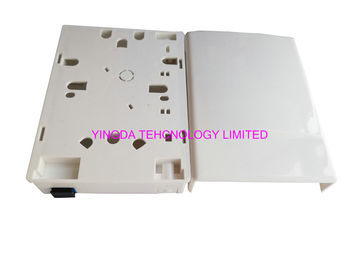

all the box is self-clip design, slide in



1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 71 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 8

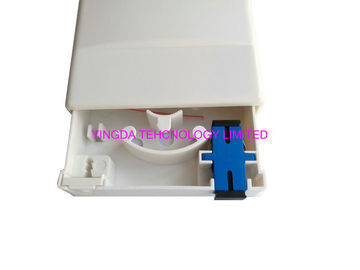

there is 1 cable port in front and back, and 1 pc SC adapters.





Method of installation



1 Measure distance of two installation holes, then drill holes on the wall, then fix the base of the box on the wall by expansion nails.

2 Peel cable, take out required fibers, then fix the input cable on the body of the box..

3 Splice drop cable and pigtail as below splice slot.

4 Store connected fibers on the below tray, then fixed by tie, then lead out on the output port by 1 Simplex SC or 1 Duplex LC adaptors. The lower part of the adaptor slot can be remove by plier.

5 Insert the body on the base’s hook, close cover, the installation is over.
