Fiber Optic Termination Box
Created with Pixso. 4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box

4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box

Brand Name: YINGDA
Model Number: FTB104C 106C
MOQ: 100PCS
Price: NEGOTIABLE
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, MoneyGram
Detail Information
Place of Origin:
china
Certification:
ISO
Capacity:
4 Fibers Single
Cable Inport:
1 Inports, 4 Outports
Dimension:
210*140*40mm
Cable Diameter:
7-10mm
Material:
ABS Anti-UV, Flame Retartant
Color:
White
Application:
FTTH FTTX,FTTB
Adapter:
4xSC, 4XFC,4X LC Duplex
Cable Output:
7-10mm Or 2.0*3.0mm FTTH Drop Cable
Packaging Details:
1 pc / box, 60 pcs / carton shipping box
Supply Ability:
100000 pcs / month
Highlight:

fiber optic junction box

,

fiber optic distribution box

Product Description

4 Port UV Weather Resistant FTTH Fiber Termination Box, 4 Fibers SC Wall Mount Box





Model:FTB104C



YINGDA 4 port FTTH fiber termination box is wall mountable and rack mountable and can be used for exterior walls, basements, and other locations needing FTTH. The box is UV and weather resistant and can be used with a variety of adapters with a SC footprint.





Features

  1. Wall mountable and rack mountable
  2. UV Resistant
  3. Weather Resistant
  4. The base and cover of the box adopts a "self-clip" method, which is easy and convenient to open and close
  5. Can be used with SC simplex adapters or LC duplex adapters with a SC footprint
  6. The max capacity is 4 fibers



Specifications



Material PC + ABS
UV Resistant Yes
Weather Resistant Yes
Size (LxWxD) 210*140*40mm
Splitting 1piece 1:4 micro splitter
Capacity 4 single fibers (max)
Cables Not included





More pictures

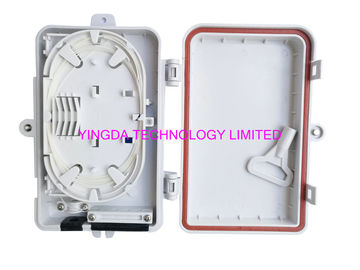

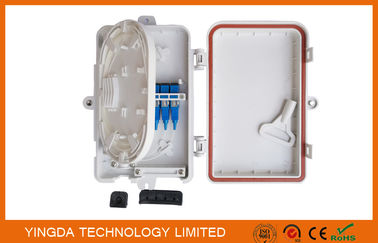

                          external                                                              internal



4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 04 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 1

  1. terminal box FTB104C is made of ABS+PC export material, high strength, high quality
  2. compact size, light weight
  3. total box is white color, with special wrench to open
  4. it is self-clip design, easy open and close repeatly.
  5. the box is waterproof, IP65 protection level with black rubber seal and silicon rubber sealing cirle in red
  6. good performance in harsh environment

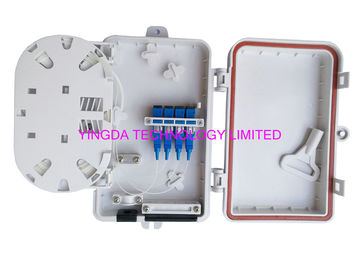

  7. the adapter panel under the splice tray is fix on the box, max. can install 4 pieces X SC simplex adapters, but also this adapter panel can change into FC, ST,LC etc., see below picture:4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 2

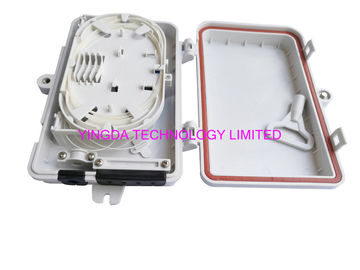

                cable ports from top side                             cable ports from back side



4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 34 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 4



  1. cable ports: 1inports, 4 outports
  2. inports cable diameter: 7-10mm;
  3. outports cable diameter: 0.9mm,2.0mm,3.0mm or 2x3.0mm drop cable





                                          cable ports  and splice tray view in details



4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 54 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box 6

Package information



Model Carton size Carton qty G.W.
FTB104C/106C 51.5*47.5*46.5 cm 60 pcs 22.5 kgs
