2 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White

2 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Color
    White
  • Fiber Capacity
    2 Core
  • Adapter Qty
    1pc SC/UPC Duplex Adapter
  • Dimension
    125*80*26mm
  • Accessory
    2 Pieces Expansion Screws
  • Application
    Indoor Wall Mount Box
  • OEM
    Yes
  • Cable Port
    2pcs Indoor Cable Or Drop Cable
  • Adapter And Pigtails
    Can Be Pre-terminated At Factory
  • Fiber Mode
    Single Mode Or Multimode
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB-86G-SU
  • Minimum Order Quantity
    500PCS
  • Price
    negotiable
  • Packaging Details
    1pc/ box, individual pacakge with bubble inside
  • Delivery Time
    5days
  • Payment Terms
    T/T, Western Union, MoneyGram

2 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White

2 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White



Features

  • Compact size, light weight
  • Reasonable inner space design
  • Embedded chart and logo position make it easy to identity
  • Support MM or SM fiber connection
  • interfaces for users, can install SC duplex, LC quad Adapters
  • FTTH indoor wall mounted with mechanical protection function
  • Max capacity 4fibers, suitable for indoor cable or drop cable
  • clip with cover design, easy and fast to open and close
  • May store surplus fiber inside, easy for operation

2 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White 0

Application

  • A user end product to realize optical fiber to desktop solution in FTTH network
  • It can be used in home or working area to accomplish double-core fiber access and port output.
  • Used in the end termination of residential buildings and villas, to fix and splice with pigtails.



Specifications



Model FTB86G
Dimension 125*80*26mm
Maximum Capacity 4 fibers
Adapter qty 1xSC, 1XLC quad
Cable ports 2pcs
Cable type Indoor or drop cable
Material ABS
Carton size 450*450*405mm
Qty/carton 400pcs
Gross weight 25kgs
Connector insertion loss <0.3dB
Connector return loss ≥50dB (upc),≥55dB (Apc);≥35dB (pc)
Working temperature -40~+85°C



Order information



Model Fiber count connector type Adapter type Pigtail adapters
FTB86G

01=1fibers

02=2fibers

03=3fibers

04=4fibers

SCA=SC/APC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

SX=Simplex

DX=duplex

QD=quad

Y=included

N=not included

Y=included

N=not included



For example

Part no.: FTB-86G-02-SCA-DX-YY

                FTB86G box with 2pcs SC/APC adapters and pigtails.





More pictures:

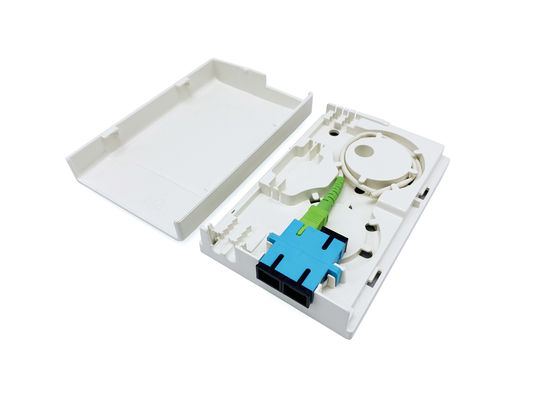

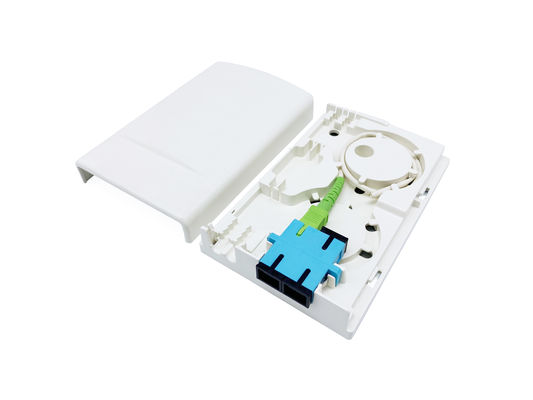

2 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White 12 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White 2

  • FTB86D terminal box with SC duplex adapters empty, not include pigtails.
  • White color, light weight, compact size
  • ABS plastic, high strength material
  • with 2pcs indoor drop cable or normal cable outputs at the left of adapter ports.
  • clip design, and cover can be taken off by hand, easy and fast to operate.

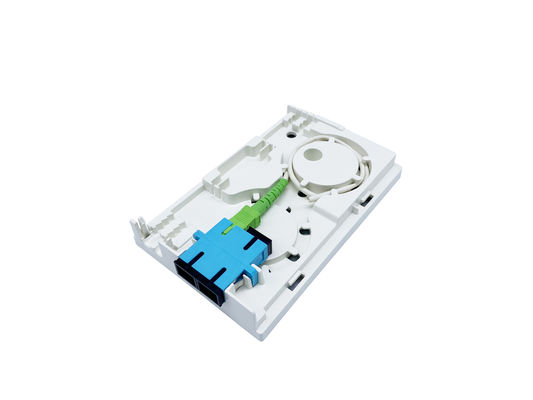

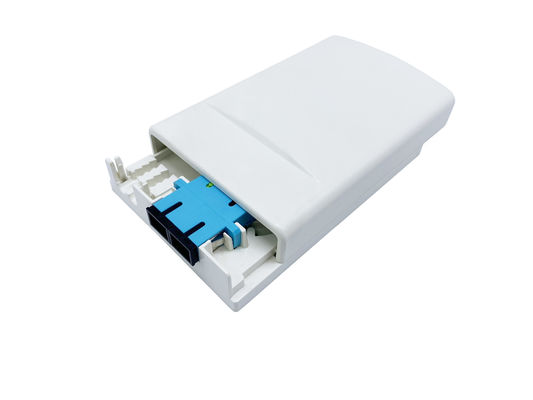

2 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White 32 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White 4

  • 1 piece SC duplex fiber optical adapter / adaptor / coupler available, or LC quad / 4 way couplers available.
  • fiber type can be singlemode or multimode.
  • each box with one tray design for better fiber routing and distribute.
  • have place to fix the cable in and out.

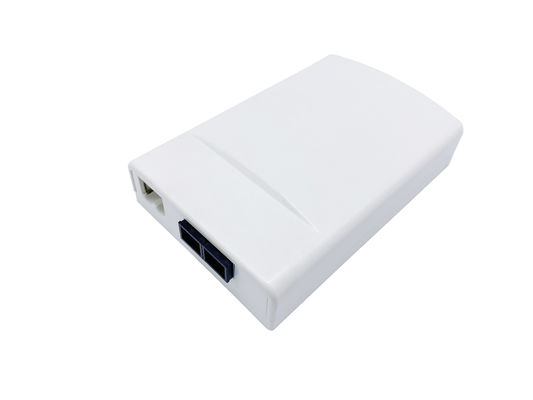

2 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White 52 Core Mini FTTH Fiber Optic Distribution Wall Outlet Faceplate ABS Plastic White 6



        the socket panel view - closed                           the wall mount socket view - open





if customer need to print your logo, ask free sample, pre-terminated pigtails and adapters , or have speical design, please tell us, we can do for you.
