Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box

Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Color
    White
  • Fiber Capacity
    8 Cores / 8 Fibers
  • Adapter Qty
    8x SC / FC Couplers Simplex
  • Dimension
    200*120*46 Mm
  • Accessory
    Screws, Cable Tie, Nylon Tie, Buffer Tube, Sleeve,labeling Mark
  • Application
    Wall Mounting
  • Customer Model
    Yes
  • Customer Logo
    Yes
  • Sample
    Can Be Offer
  • Adapter And Pigtails
    Can Be Pre-terminated At Factory
  • Material
    ABS
  • Cable Ports
    1ports, 8pcs SC Outputs
  • Cable Diameter
    8-16mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    GPT-02A
  • Minimum Order Quantity
    500PCS
  • Price
    negotiable
  • Packaging Details
    1pc/ box, individual pacakge with bubble inside
  • Delivery Time
    5days
  • Payment Terms
    T/T, Western Union, MoneyGram

Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box

Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box, 8 Ports SC Splice Box





Model: GPT-02A





Application

Termination box is suitable for fixing the end of fiber and splicing the fiber pigtail, meantime it protects fiber splice tie-in and helps to distribute fiber. Termination box is mainly used in telecom equipment room or network equipment room



Features



  • The structure of GPT-02A is designed in box type, it easy in opening the box and allos fiber cable and pigtails to pass in and out in one side.
  • The termination box is made of high strength ABS plastic materials, which has mechanical strength, therefore it is reliable and long lasting .
  • Cable can be in three fix
  • The plastic material is used to fix pigtails
  • A few adapters can be equipped in out ports.



Specification



Model GPT-02A
Dimension 200*120*46mm
Cable ports 1pcs
Cable diameter 8-16mm
Adapter qty SC X 8PCS
Max. Capacity 12 fibers / 24fibers (2pieces tray)
Material ABS



Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 0Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 1

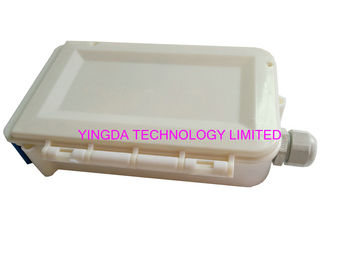

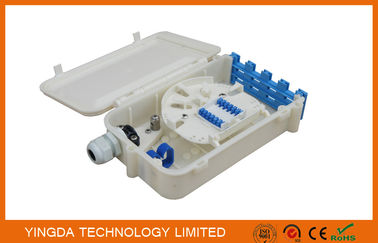

box is made of ABS plastic, high strength, good quality,compact size, light weight, save shipping cost.

white color, flip design, clip design, easy to open and closure, no need keys or screws.





Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 2Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 3

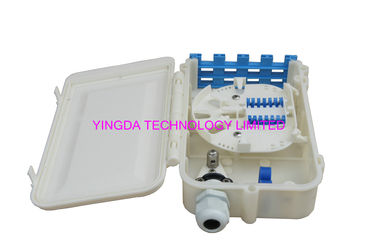

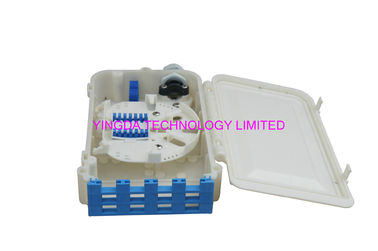

box backwards and upwards view,all smooth outer appearance and design.

it can maximum instlal 8pcs SC apdaters, with plastic blue adaper panels, it can be changed and taken off.



Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 4Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 5

this adapter panel can  use SC adapters, FC adatprs, LC duplex adapters, ST adapters on customer request, only change the adapter panel, so it is widely used in FTTH and good to use in many different situtations.



Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 6Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 7



  • all box is standard equipped with high quality plastic ABS splice trays, each tray 12fibers,maximim can hold 2pcs splice trays.
  • each fiber optic splice tray can ben take off by hand to ease the installation and fiber fusion splicing.



Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 8  Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 9

  • cable outports: outports can use SC, FC,LC, ST adapter / couplers, total 8 pieces.
  • cable inports: 1pieces cable gland with rubber seal, and cable diameters: maximum 8-16mm



Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 10  Wall Mount ABS Plastic White FTTH Fiber Optic Termination Box 8 Ports SC Splice Box 11



  • there are cable fixture and ties inside of the box designed, easy for fiber storage and routing.
  • all mounting accessories inclulded when make delivery at factory in a seperate plastic bag:

insulation tape, buffer tube, labeling mark, protection sleeves, sand paper, nylon tie, screws, etc.







if need to install pigtails, adapters at factory pre-assembled, tell us, we can do for you.



Welcome inquiry.
