Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex

Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Color
    White
  • Fiber Capacity
    4fiber(LC), 2fibers(sc)
  • Adapter Qty
    2xSC, 2XLC Duplex
  • Dimension
    130*84.3*24.1mm
  • Accessory
    2 Pieces Expansion Screws
  • Application
    Wall Mounting
  • Customer Model
    Yes
  • Customer Logo
    Yes
  • Sample
    Can Be Offer
  • Adapter And Pigtails
    Can Be Pre-terminated At Factory
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB102H
  • Minimum Order Quantity
    500PCS
  • Price
    negotiable
  • Packaging Details
    1pc/ box, individual pacakge with bubble inside
  • Delivery Time
    5days
  • Payment Terms
    T/T, Western Union, MoneyGram

Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex

Fiber Optic Termination Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex





Flame retardant material

Flame retardant class POLYAC ABS imported from Grmany, high performance on heat-resistance and insulation-resistance, eliminate hidden dangers to fire and electric shock.



Dimension: 130*84.3*24.1mm

Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex 0



Application

Optical fiber communication system

Fiber optical CATV, FTTH fiber to the home

Optical fiber access network

Testing instruments, fiber optic sensors

Optical fiber patch panel, cabinet type or wall mounted type fiber optical distribution system



Product details:

Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex 1

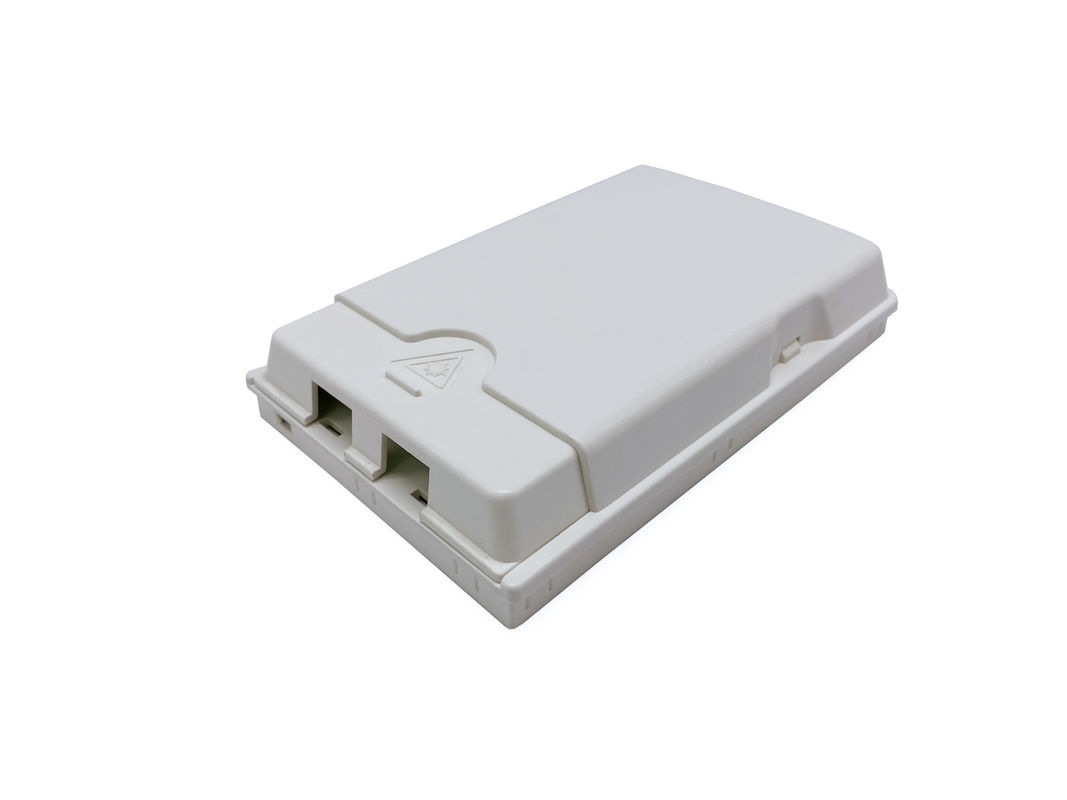

The outlet is with a removable plastic cover, and a laser marking on it, embedded type surface, easy for installation and removal the box is open and close by clip on both sides, press the clip at the both sides at the same time, then take off the cover to open.

Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex 2

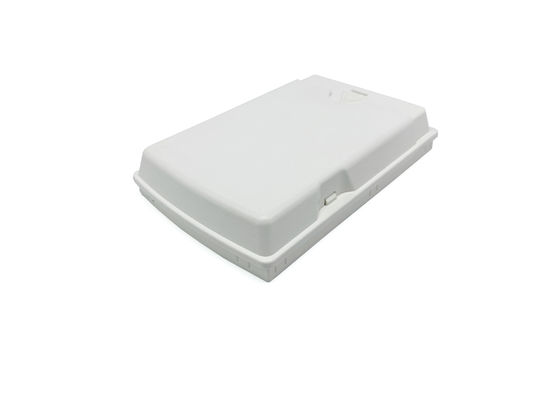

White color, high engineering PC+ABS material, good outer appearance and smooth surface, compact size, light weight.

Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex 3

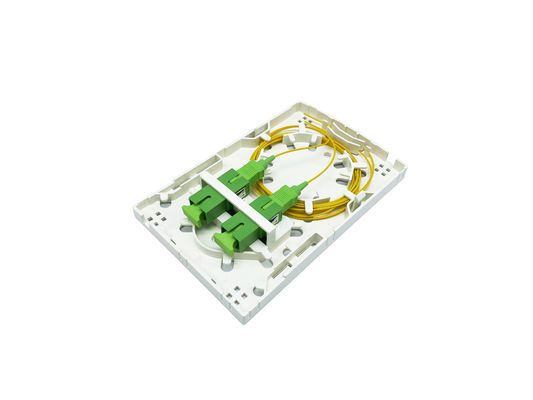

Available for 2SC simplex or LC duplex fiber optical adaptors and , there is enough storage for pigtails G657A1 LSZH 0.9mm 1meter long.Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex 4

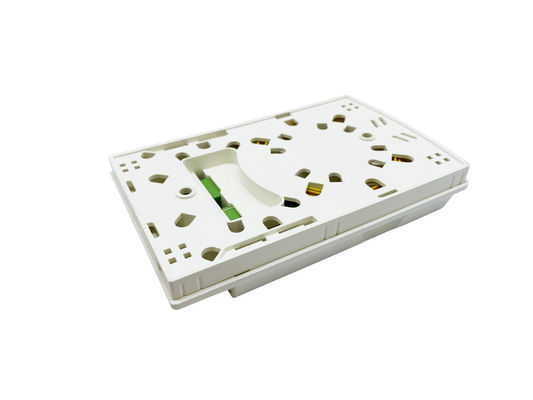

FTB102H fiber optic socket panel have 2 mounting holes, can be wall mounted by 2pieces expansion screws, which will be equipped in the accessory bag.

Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex 5

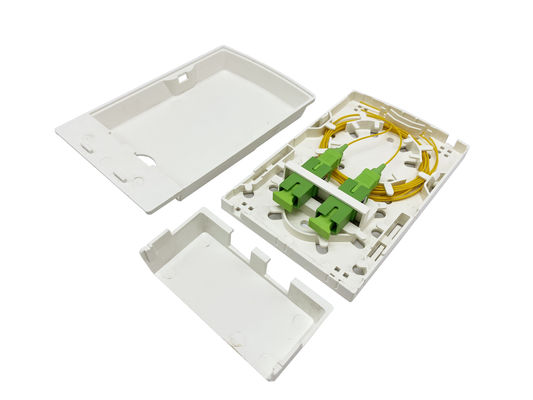

The plastic adapter cover can be take off easily, and  then you can see clearly the fiber routes and box internal views.

Fiber Optic Junction Box FTB102H Wall Mounting Socket Panel SC Adapter Simplex 6

Any other similar boxes can be provided, if you have inquiry, please send us mail at sales@yingdapc.com.
