Fiber Terminal Access Box For FTTH Wall Outlet , Wall Mount 2 Port SC Adapters Flame Retardant

Fiber Terminal Access Box For FTTH Wall Outlet , Wall Mount 2 Port SC Adapters Flame Retardant

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Fiber Count
    2 Single Fiber
  • Cable Ports
    4pcs
  • Dimension
    83.4*130*24.1mm
  • Cable Diameter
    2.0*3.0mm Drop Cable Or Indoor Cable
  • Material
    High Strength Plastic PC+ABS
  • Color
    White Or Gray
  • Application
    Indoor FTTH
  • Outports
    2pcs SC Coupler
  • Features
    Mid Span Ports, Pull In And Out Cvoer For Adapter
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB102H
  • Minimum Order Quantity
    500 PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / box, 200 pcs/carton box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union, MoneyGram
  • Supply Ability
    50000pcs/month

Fiber Terminal Access Box For FTTH Wall Outlet , Wall Mount 2 Port SC Adapters Flame Retardant

Fiber Terminal Access (FTA) Box For FTTH Wall Outlet, Wall Mount 2 Port SC Adapters Flame Retardant Plastic





Features

  • With protection doors dustproof
  • Suitable for many types of modules, used in cabling network area subsystem
  • Embedded type surface, easy for installation and removal
  • Available for fiber optic SC simplex or LC duplex and can be used in both surface mounted installation and concealed panel installation
  • All modules are solderless mode

Technical datas



Item Parameters
Cable used 2.0*3.0mm drop cable or indoor cable
Fiber cladding diameter 125um (G652 or G657)
Fiber diameter 250um or 900um
Fiber mode Single mode and multimode
Tensile strength >50N
Operating temperature -40~+85°C
Adapter SC&LC
Insertion loss ≤0.2dB (1310&1550nm)
Fiber count 2cores

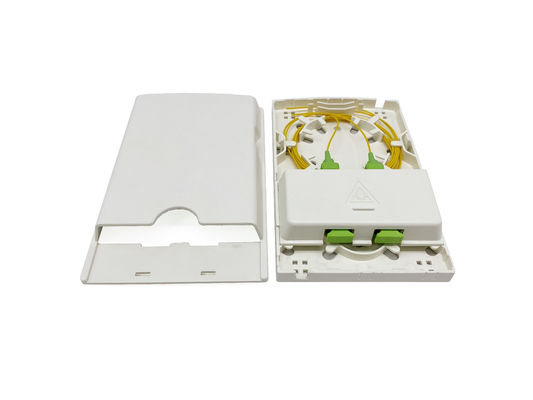

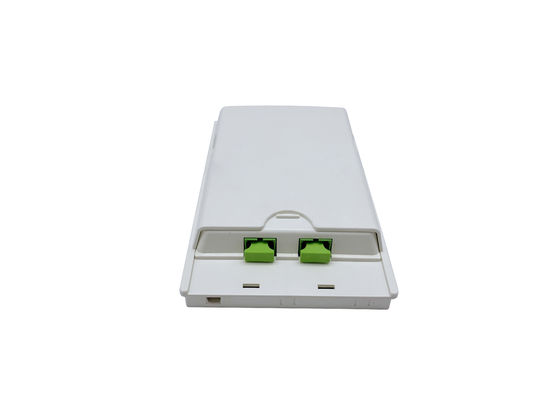

Fiber Terminal Access Box For FTTH Wall Outlet , Wall Mount 2 Port SC Adapters Flame Retardant 0Fiber Terminal Access Box For FTTH Wall Outlet , Wall Mount 2 Port SC Adapters Flame Retardant 1

Specifications



Model Dimension(a*b*c) Max capacity PLC splitter Adapter Cable port Material
FDB-102H 83.4*130*24.1mm 2cores 1X2(sc),1X4(lc) 2xSC, 2XLC duplex 4pcs Abs+pc






Fiber Terminal Access Box For FTTH Wall Outlet , Wall Mount 2 Port SC Adapters Flame Retardant 2Fiber Terminal Access Box For FTTH Wall Outlet , Wall Mount 2 Port SC Adapters Flame Retardant 3

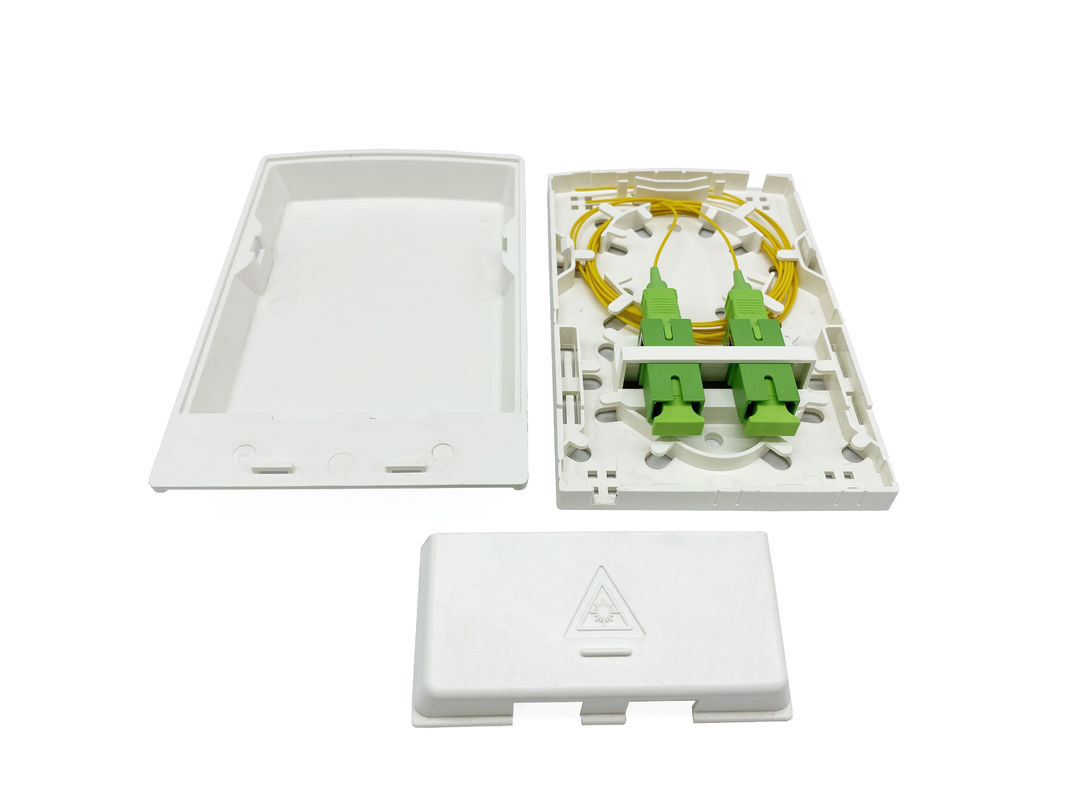

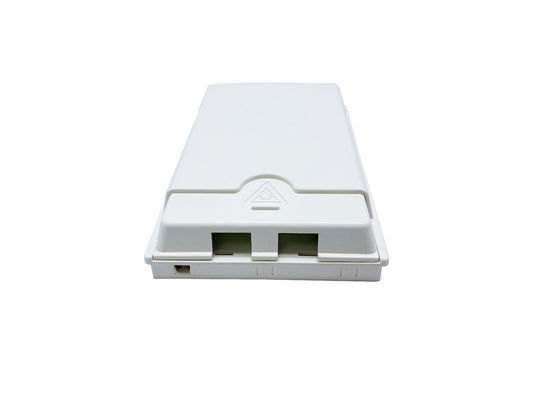

box top view box front view

clip design,anti-UV mateiral, white color SC adapter outputs 2xpcs, cable input:2pcs

Fiber Terminal Access Box For FTTH Wall Outlet , Wall Mount 2 Port SC Adapters Flame Retardant 4Fiber Terminal Access Box For FTTH Wall Outlet , Wall Mount 2 Port SC Adapters Flame Retardant 5

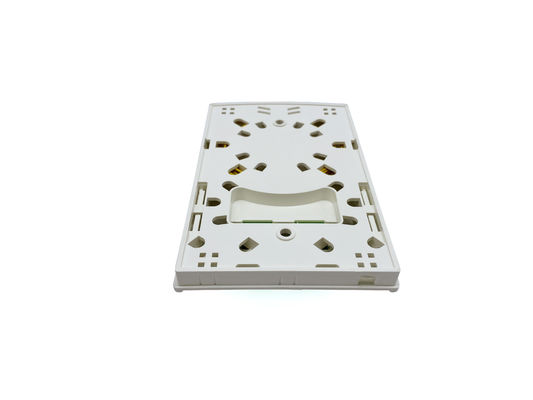

box front view 2 box internal view

the cover can be taken off, easy to operate and instalation





Application

  1. Optical fiber communication system
  2. Fiber optic CATV, FTTH fiber to the home
  3. Optical fiber access network
  4. Testing instruments, fiber optical sensors
  5. Fiber optic patch panels, cabinet type or wall-mounted type fiber optic distribution units



Wall mount installation



drill 2 holes over the wall based on the size in table 1, place the expansion boltφ5.5*30, place the

box to match up the holes and use bolt to fasten.(pic 4)
