Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure

Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure

  • High Light

    fiber optic terminal box

    ,

    fiber optic distribution box

  • Capacity
    24 Fibers Single Fusion
  • Cable Inport
    2 PCS
  • Dimension
    264x154x56mm
  • Input Cable Diameter
    16 Mm
  • Material
    High Strength Plastic PC
  • Color
    Gray
  • Application
    Fiber To The Home FTTH Or Indoor Use
  • Adapter
    Yes, Can Install Max 8pcs SC Adapter
  • Splice Tray
    Maximum 2 Pcs, Each 12 Fibers
  • Special
    Un-cut Cable Go Through The Box
  • Output Diameter
    24 Small Ports For Pigtails
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB001
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc per box, 32 pcs per carton shipping box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union, MoneyGram

Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure

Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure



FTB002 optical cable terminal box is made of high performance plastic, and undergoes static plastic spraying treatment to ensure its reliability and stability; the box can be installed on the indoor wall and table; it is strong mechanical strength; it is capable of providing protection for the direct, terminal or branching connection of the fiber.



Connection function: layered turn-cover structure, equipped with special inside device to stop the connection tray from moving forth and back.

Reservation function: reserve the redundant fiber on the cabling rack outsie the connectdino tray to ensure the regularity of the fiber within the connection tray.



Specification

Model No. Of ports Fiber optic splcie tray (FOST) including heat shrinkable protective cable Max. Capacity (core) Dimension(LXWXH)
FTB001 2 FOST with 6 cores (1-4 pieces tray) 24 pcs pigtails or 6 pcs of 12 core pigtails (with 48cores) 265x153x55mm
FTB002 2 FOST with 6 cores (1-3 pieces tray) 12 pcs pigtails or 3 pcs of 12 core pigtails (with 48cores) 198x112x45mm

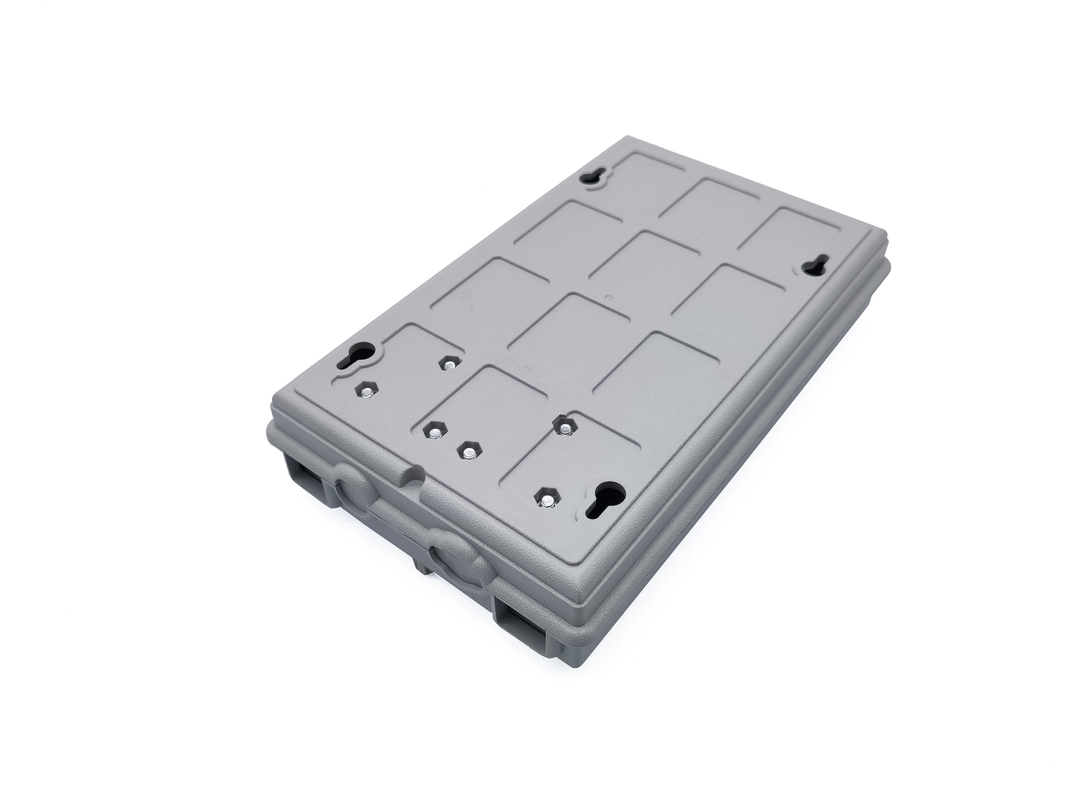

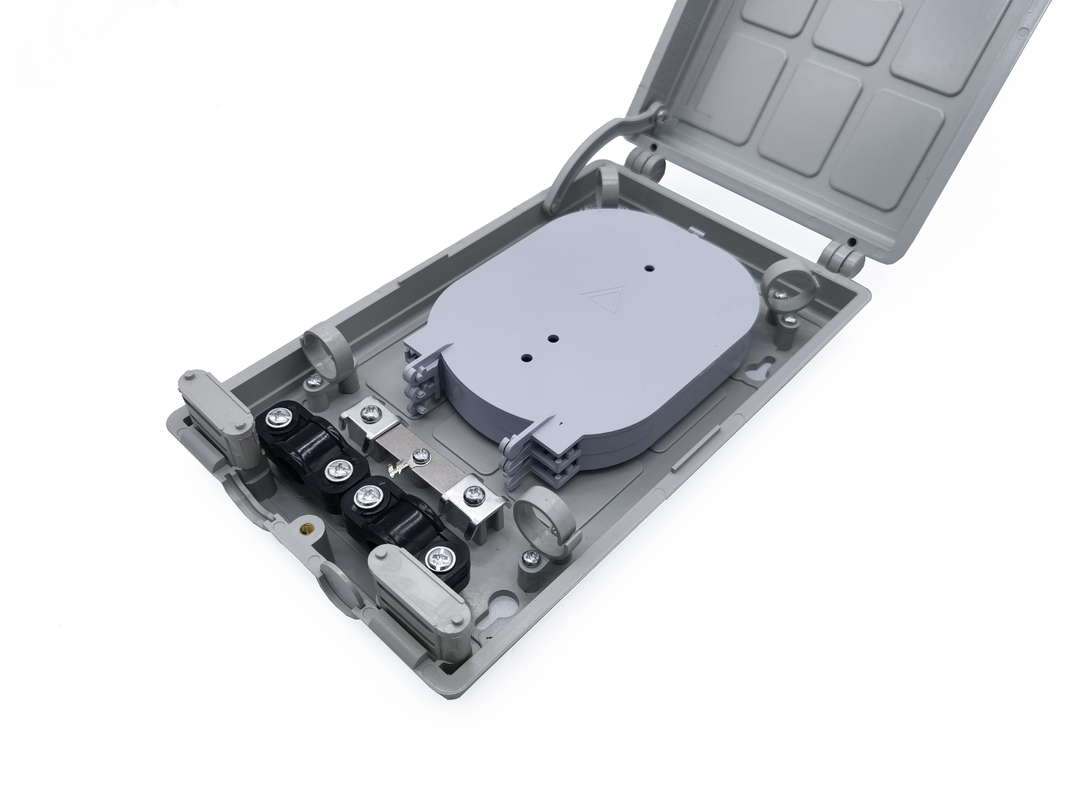

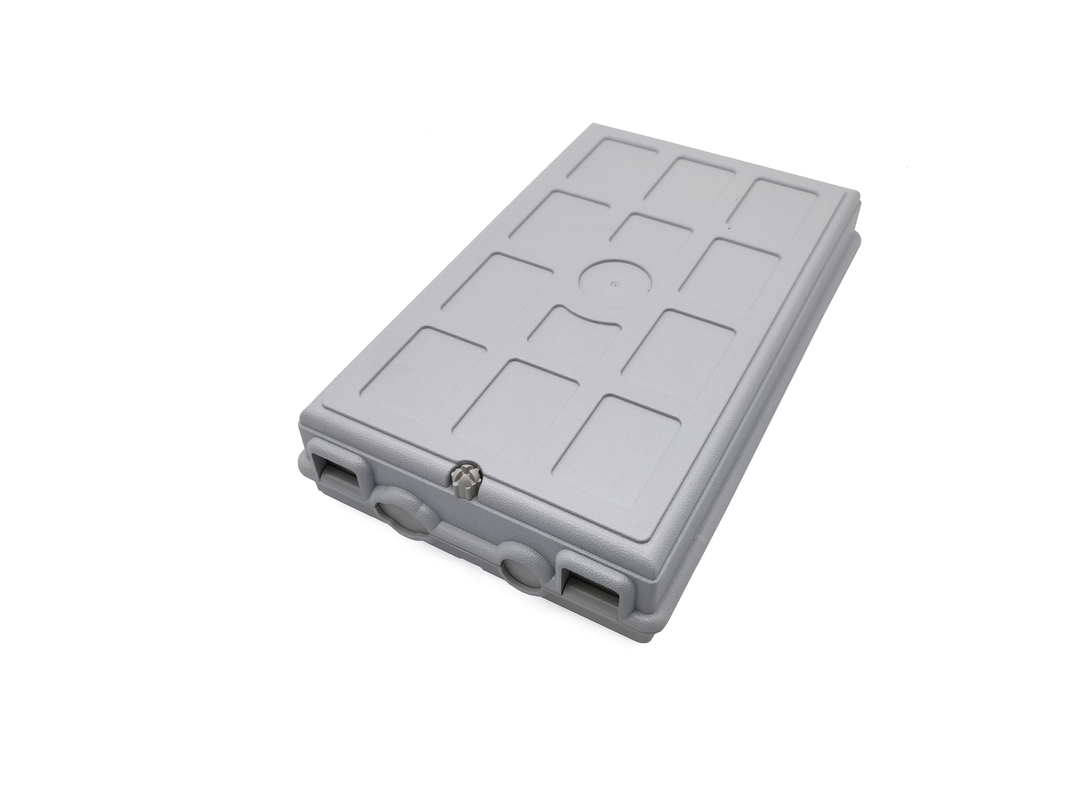

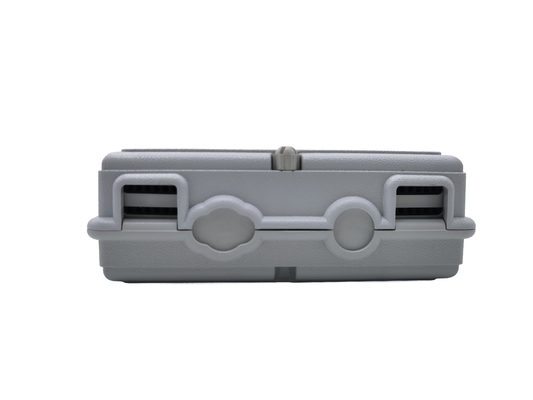

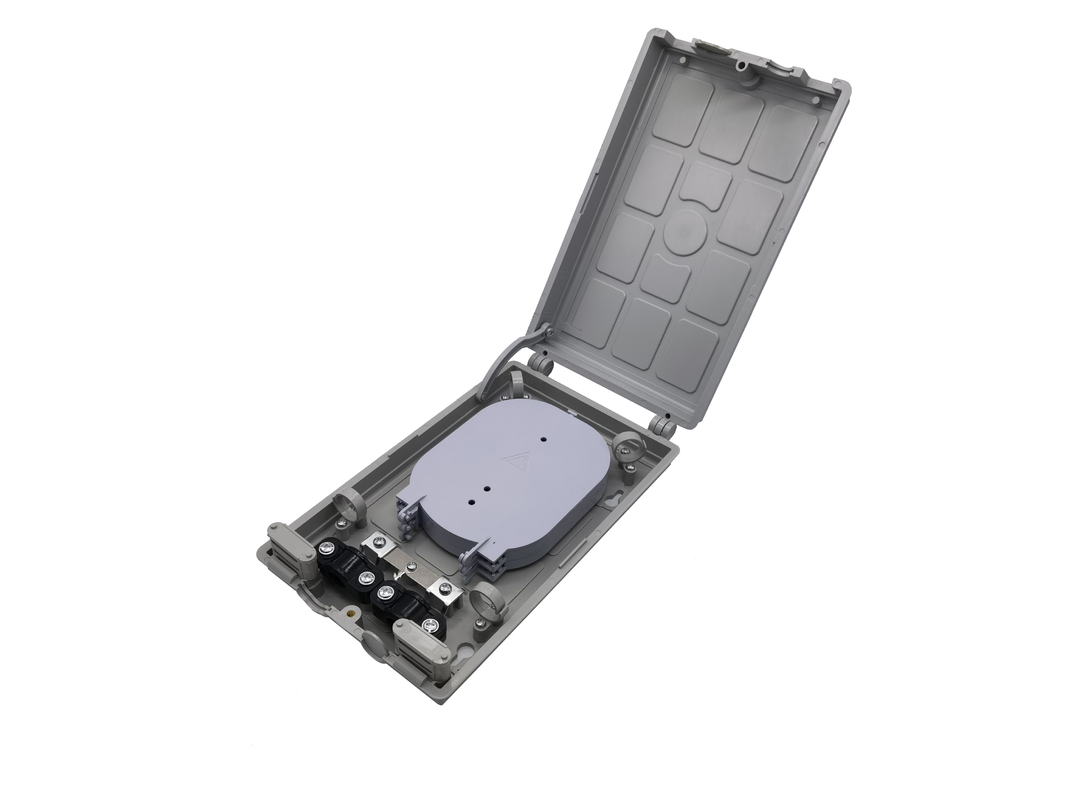

Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure 0Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure 1Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure 2Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure 3Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure 4

Application

  • Suitable for jointing fiber pigtail
  • To protect fier optic splices and help to distribute
  • It is a wall mounting or desktop type
  • Mainly used in telecommunication equipment and network indoor and outdoor.

Features

The structure of the terminal box is innovative, designed in up-down bisection.

By un-tightening one piece of fixing nut, it succeeds in opening the housing and it allows fiber cable and fiber pigtail to pass in and out in single side.

The housing of the terminal box is made of high strength poly carbonate plastic materials, good mechanical strength, reliable and long-lasting.

Compact size, nice shape and beautiful appearance, large capacity, cost effective;

SLIDE-IN-LOCK fiber optic spcie tray FOST with its opening angle is above 90°, easy for installation and maintenance. The curved diameter meets with the international standard.

The capacity of tray is 6-12cores.

The elastic material is used to fix fiber pigtails. When the end of fiber pigtail can not be determined (it is not used for the moment), it is possible to wind fiber pigtails into clasp. Whenever it is needed, the active connector could be installed outside of the housing. Therefore it can connect termination equipment without connecting adapters.



Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure 5



Accesory list table

Name Unit Quantity Remark
Heat shrinkable protective sleeve Pc Configuration as per capacity
Nylon tie Pc Configuration as per capacity
Labeling paper Pc 1
Plastic shrinkable tube Pc 4
blots Pc 4
Manual Pc 1
