Fiber Optic Termination Box
Created with Pixso. Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores

Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores

Brand Name: YINGDA
Model Number: FTB104A
MOQ: 100 PCS
Price: Negotiable
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Color:
White
Material:
Cold Rolled Steel
Connector:
SC Adapter
Fiber Count:
4 Cores
Size(H*W*D):
115*135*41.5 Mm
Cable Port:
2 Pcs
Cable Diameter:
5~10mm
Packaging Details:
1pc/ box, 50pcs/ carton box
Highlight:

fiber optic terminal box

,

fiber optic distribution box

Product Description



Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores



Model: FTB104A



Sell point:

  • indoor wall mounting
  • cold rolled steel material
  • sample, LOGO OK
  • Individual pacakge
  • empty or fully load OK
  • 100% test in house before shipment



Description:



Used in the end termination of residential buildings and villas,to fix and splice with pigtails.

 Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function;

Max fiber capacity is 4 fibers SC, 4 adapters SC output, available for FC, SC, ST, LC Adapters.

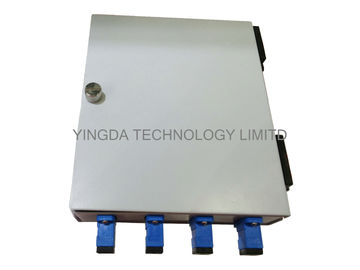

Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores 0

Features:

  1. small size,light weight,pleasing in appearance
  2. wall mounted with mechanical protection function
  3. max fiber capacity 4 fibers,4 adapter output
  4. available for FC,SC,ST,LC adapters
  5. hinge and convenient press-pull button lock design
  6. Environmental Temperature:-25°C~40°C;
  7. Self-clip design,easy to operate



Application

  • FTTH network
  • Indoor
  • wall mount



Specifications:

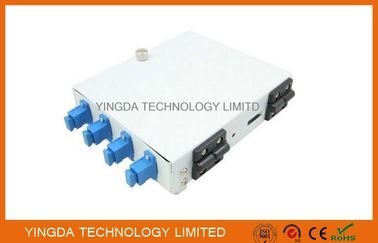

Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores 1

Model

FTB104A

FTB108A

Size(H*W*D)mm

115*135*41.5

115*135*41.5

Cable diameter (mm)

5~10

5-10

Cable ports

2 pcs

2 pcs

Max capacity of splice

4 cores

8 cores

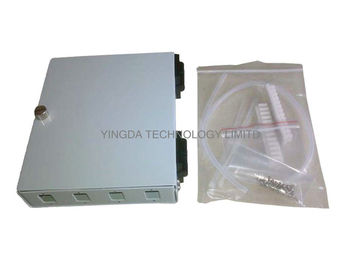

Standard accessories:



white protection kits 2 pcs
cable tie 4 pcs
adapter screws 16 pcs
buffer tube 1 pcs
