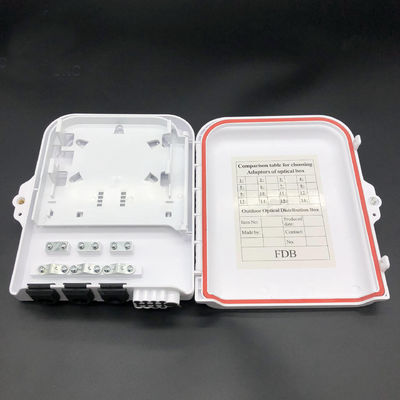

1x8 SC Plastic Outdoor Fiber Optic Splitter Box For Fiber Optic Cable, Screw and buckle seal
Model:FDB0208C
FDB0208C is designed for the FTTH application and widely used in Telecommunication networks,
CATV networks, Data communications networks, Local Area networks.
Application:
Features:
Up to 8 FTTH drops
Can accommodate 1x4, 1x8 PLC blockless splitter
Specification:
Model No. | Cable port | PLC splitter |
Dimension (LxWxH) |
Qty / Carton | G.W. / Carton | CTN Size |
FDB0208C | 2 cable ports (max cable diameter 12mm) +8 drop cable ports(2*3m) | 1x4,1x8,max 8pcs SC adapter |
195*240*66 mm |
20pcs | 14KGs | 61*25*46 cm |
Kit content:
There are two ways for fiber splicing.
One (1)is the one of the twelve fibers splices with the 1x8 PLC splitter. Here is about fibe splices with the 1x8 PLC splitter. The other(2) is that fibers directly splice with pigtais.
(1) splice with the 1x8 PLC splitter
A. put one optical fiber out of twelve fibers into the splice protective tube
B. Splice it with 1x8 PLC splitter and put the tubes which had been heat shrunk into groove.
C. After that, coil the extra fiber to the bottom for storage.
D. Fasten the splice tray and screw up the fixing screw of splice tray tightly
(2) Splice with the pigtails.
A. Install the adapter and connect with the pigtails.
B. Then coil the pigtail in the bottom or in the splice tray (the least radium is more than 30mm)
C. After that, put 12 optical fibers into the splice protective tubes separately, splice them one by one directly with pigtails.
D. At last, connect other pigtails from the drop cable entry ports with the other side of adapters.

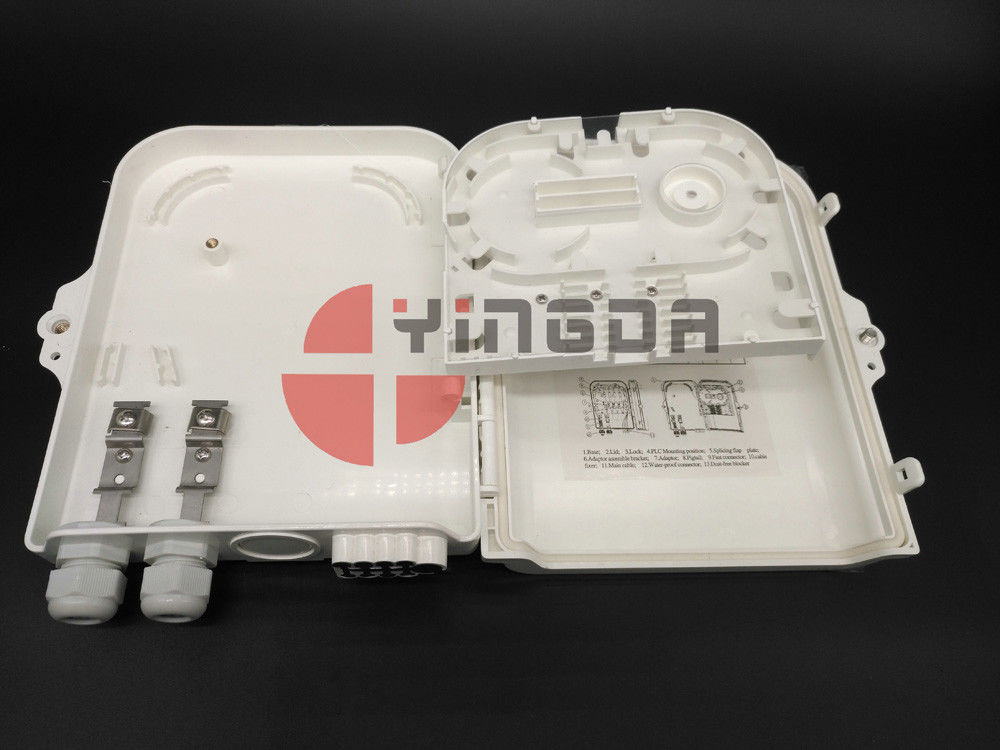

More photos

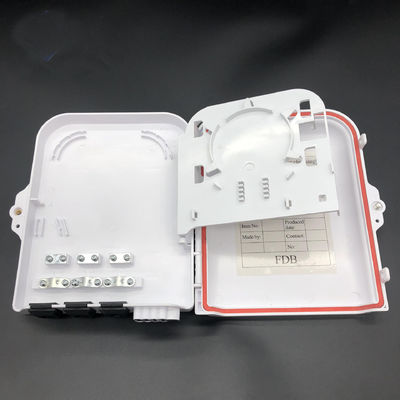

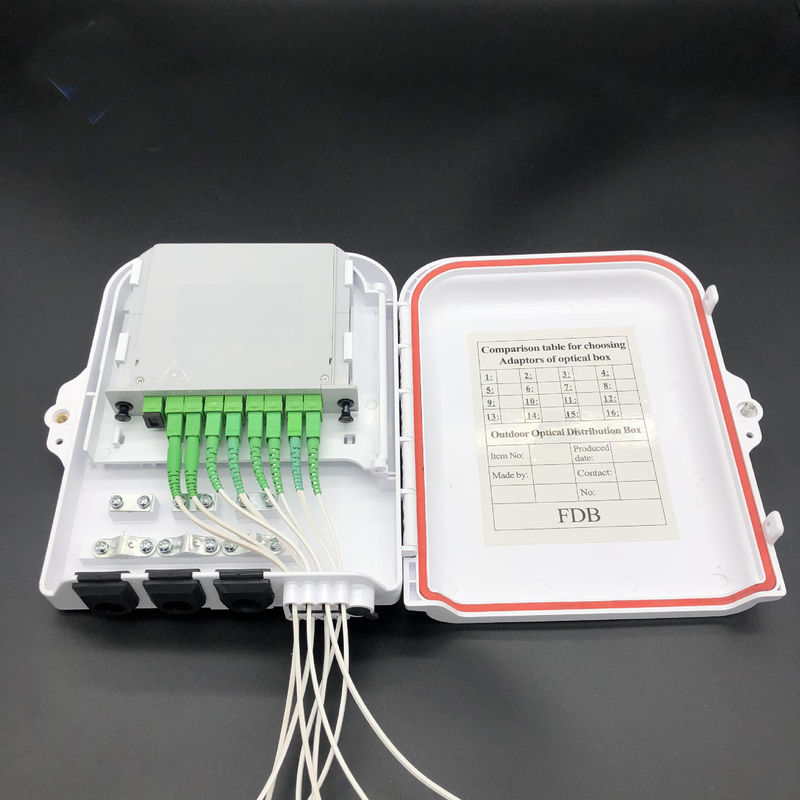

1. Shows the ports

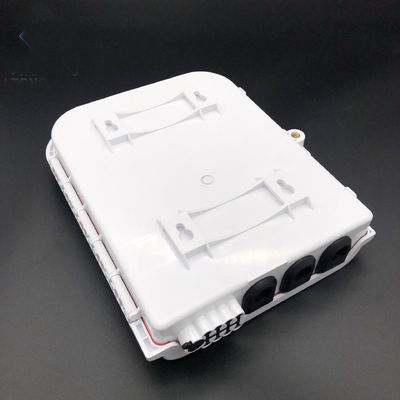

2. Side of the box, seal with screw and buckle

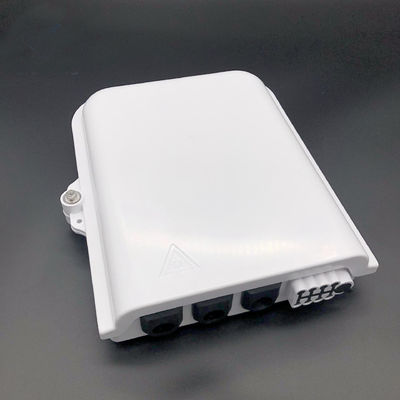

3. Size: 195*240*66mm
Order information
Model | Adapter | PLC splitter |
FDB0208C |
SCA=SC/UPC SCU=SC/UPC LCA=LC/APC LCU=LC/UPC NU=NULL |
102=1X2 104=1X4 108=1X8 NU=NULL |
