Fiber Optic Termination Box
Created with Pixso. Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type

Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type

Brand Name: YINGDA
Model Number: FTB86X
MOQ: 100PCS
Delivery Time: 5-8days
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Material:
Abs
Color:
White
Max Capacity:
4fibers
Adaper:
SC Or LC
Pigtail Length:
SC Pigtails 1 Meter 0.9mm
Applicable:
Ftth Drop Cable, Fast Connector, Indoor Fiber Cable
Customer Logo:
Ok
Packaging Details:
400pcs/carton box
Supply Ability:
10000pcs /month
Highlight:

fiber optic junction box

,

fiber optic distribution box

Product Description



Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type



FTTH Wall Outlet 86 type can be multi-use to achieve a variety of fiber optic cable in multimode

access, and fixed fiber optic cable. No additional insertion loss, protect optical fiber and cable,

reduce the potential risk, simple and convenient for construction.



Features:

  1. Made of high class engineering plastic ABS or PC,flame retardant.
  2. Used for splicing and termination between indoor fiber optic cable and pigtails
  3. Light weight, small size
  4. Wall mounting screws included
  5. Φ0.2-Φ3.0mm pigtail & 3.1x2.0mm indoor drop cable available
  6. Compatible with SC & FC adapter, optical fast connectors
  7. Snap on cover, use splice tray to ease operation
  8. wall mounted or desktop

Terminal Box Structure

Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type 0

Specifications



Model FTB86X
Material Cold rolled steel for the box, ABS for the tray
Operating Temperature -40°C~+60°C
Relative Humidity <95%(+40°C)
Insulated resistance ≥2x10MΩ/500V(DC)
Capacity 4core
Installation Method (in overstriking ) Floor Standing / wall mounted / pole mounted / rack mounted / corridor mounted / mounted in cabinet
Tensile strength >50N





Application

  • FTTX applications
  • Single mode
  • Wall mount or fiber distribution



Package information



Model FTB86X
Carton size 53*39*54cm
Quantity/carton 400pcs
Weight/carton 33kgs





More photos

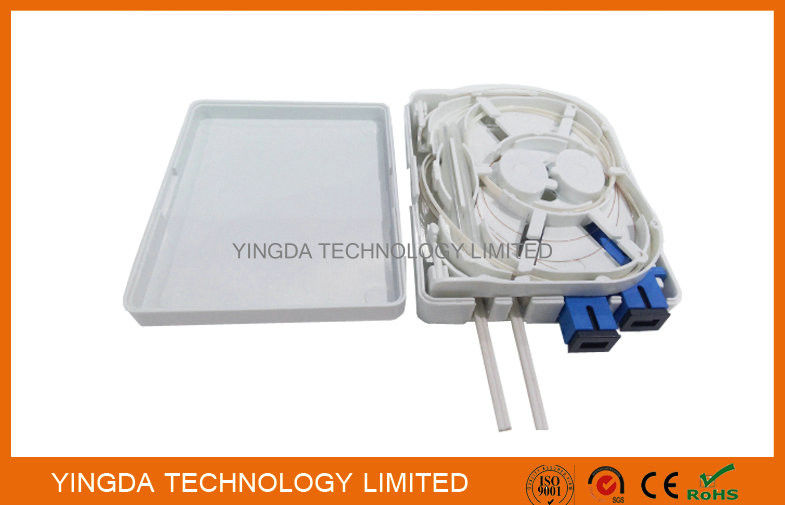

Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type 1Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type 2

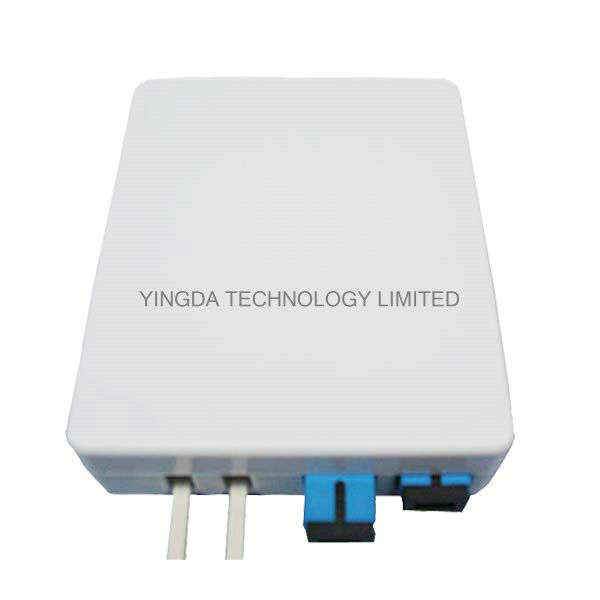

                            Box surface                                                       box inside



Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type 3Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type 4

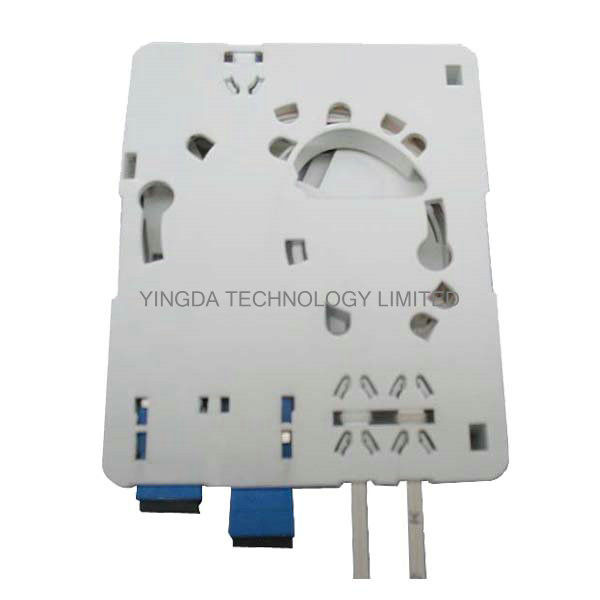

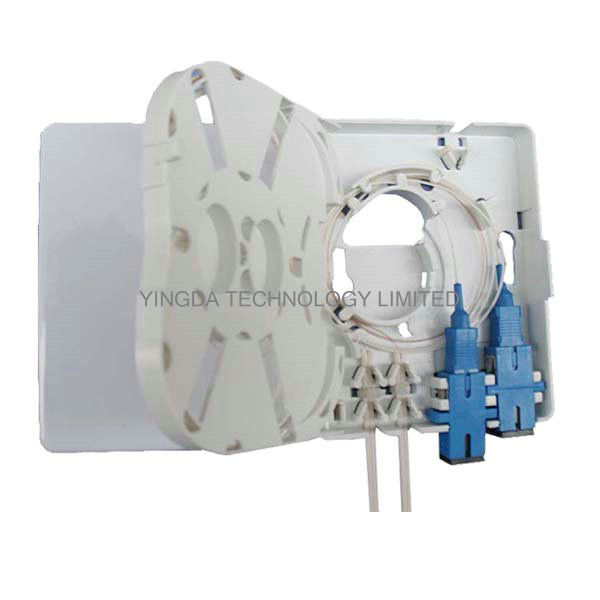

                               box back                                                       box inside



Can use FTTH drop cable with FAST CONNECTORS



Plastic Fiber Optic Termination Box Wall Socket 2 Port SC 86 Type 5
