SC Duplex FTTH Fiber Optic Termination Box Wall Outlet Optical Terminal Box Socket

Quick Details of FTB86E Faceplate

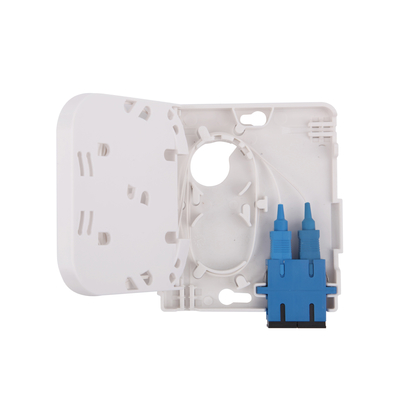

• SC simplex or duplex adapter
• 1core 2core 4core available
• pre-terminated sc pigtails or adapters in box if customer need
• logo print or samples available
• transparent cover for cable exit

Fiber to home network wall outlet is an indoor terminal applied in the FTTX network to connect the drop cable andoptical devices through fiber port. TB024 covers the capacity of 1core, 2cores and 4 cores and supports splicing, mechanical connection and FMC, wall mounted installation.

FTTH  fiber optic terminal box Specification

1Core optic termination box Features

1. Excellent ergonomics design, graceful appearance and convenience operation.
2. White color, graceful style and good adaptability to environment.
3. Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
4. All the materials complied with ROHS standard.
5. Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
6. Plug fiber without having to open the shell, easily accessible fiber operation,
7. With rotated transparent cover, port vertically downward to avoid causing personal injury.
8. Remarkable laser warning identification.
9. With clear introductions, effectively prevent the miss-operation.
10. Easy operation, saving installation working hours, lower cost

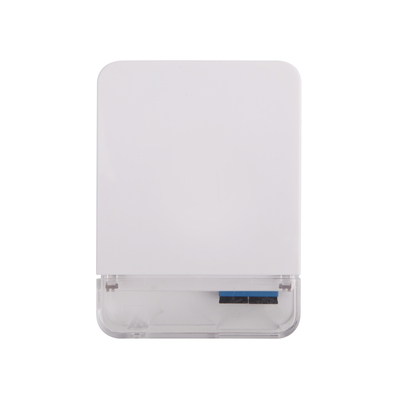

FTB86 socket panel is plastic material, white color, small size, light weight; The transparent cover is 90degree filp up, and visible and easy to operate; press down at both sides to open the top cover;

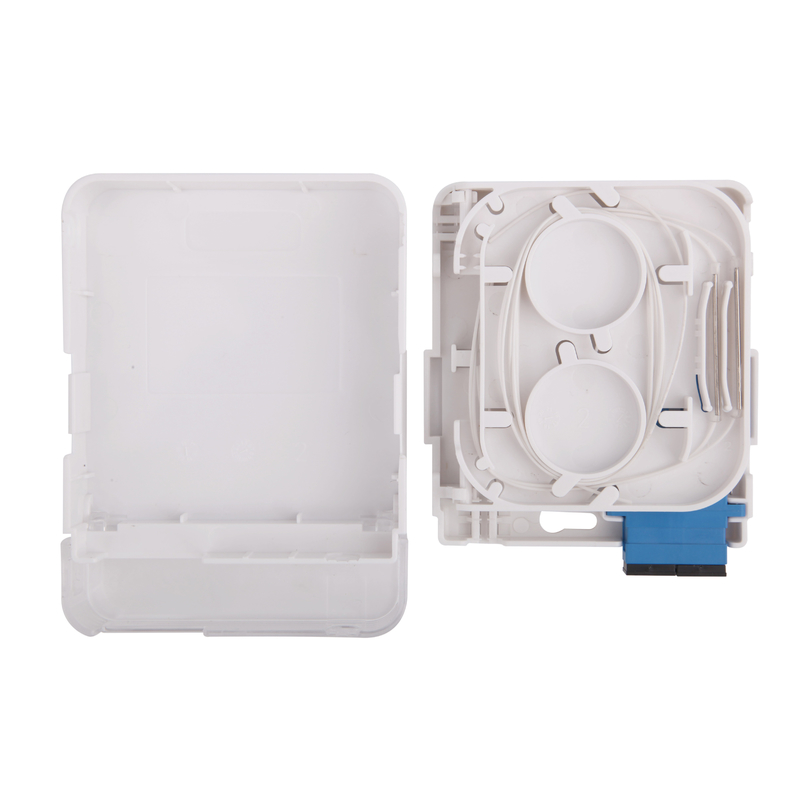

FTB86E optica rossette have 1pc mini tray, maxmimum fusion 2 cores single fiber.

There is heat shrink protection sleeve holders and fiber routing management area.

Below the tray is cable entry and exit, and fiber routing area.

Silk print: customer logo, brand, name, model number, project information, etc.

Fiber Termination Box Standards Compliance

• Fiber optic connector interfaces Standard
• RoHS (Directive on Restriction of Hazardous Substances. )
• TIA/EIA 568.C, Optical Fiber Cabling Components Standard
• ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
• UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
• GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )

Wall-mounted installation

Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box

to match up the holes and use bolt to fasten.

Order information

YINGDA Produce all kinds of FTTH terminal box, socket panel, wall outlet for Fiber to the home network,

capacity 1 fibers, 2 fibers, 4 fibers all available. If you have inquiry, pls don't forget to send inquiry or questions. Thanks.
