2 Port LC/APC Duplex FTTH Fiber Optic Terminal Box Wall Outlet IP54 Indoor ABS+PC
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Max Capacity||2 Fibers||Material||Pc+abs|
|Color||White||Applicable||FTTH Drop Cable, Indoor Cable, Round Cable|
|Size||116*86*23mm||Adapter||LC Duplex (sc Footprint, No Flange)|
|Structure||Clip, Dustproof Design||Fiber Mode||Single Mode, Multimode|
fiber optic junction box,
fiber optic distribution box
2 Port SC LC Fiber Optic Terminal Distribution Box Dustproof Socket Panel Outlet IP54
FTB86E wall outlet is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port. Max can fusion 1 core, 2 cores and 4 cores and supports splicing, mechanical connection and FMC, wall mounted installation.
- Excellent ergonomics design, graceful appearance and convenience operation.
- White color, graceful style and good adaptability to environment.
- Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
- All the materials complied with ROHS standard.
- Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
- Plug fiber without having to open the shell, easily accessible fiber operation,
- With rotated transparent cover, port vertically downward to avoid causing personal injury.
- Remarkable laser warning identification.
- With clear introductions, effectively prevent the miss-operation.
- Easy operation, saving installation working hours, lower costs.
|Working temperature||-25~+60°C||Storage temperature.||-40~+70°C|
|Size (H×W×D) mm||86×115×23||Weight (kg)||0.1|
|Capacity (cores)||1,2,4||Connect Models||Fusion splicing,
Mechanical Splicing, FMC
|Installation Models||Wall Mounted||Drop cable (Flat)||Indoor Flat Drop cable 2mm×3mm|
|Drop cable (Round)||Φ5mm~Φ7mm||Curvature Radius(mm)||≥15|

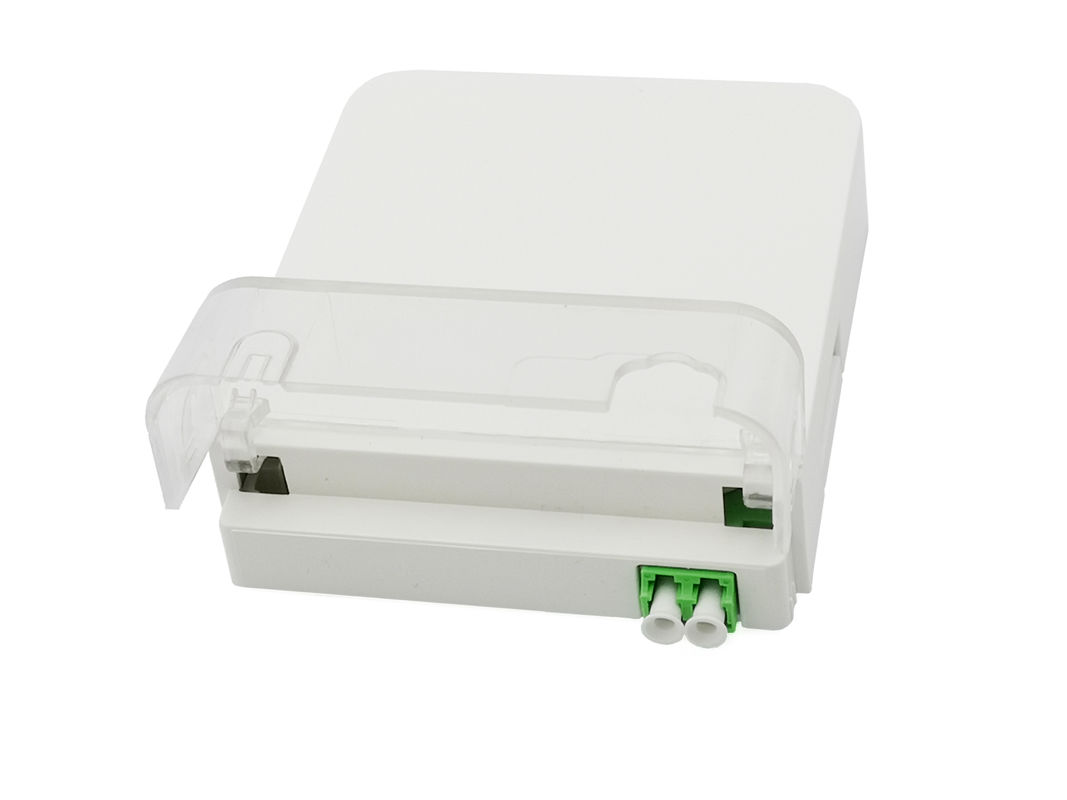

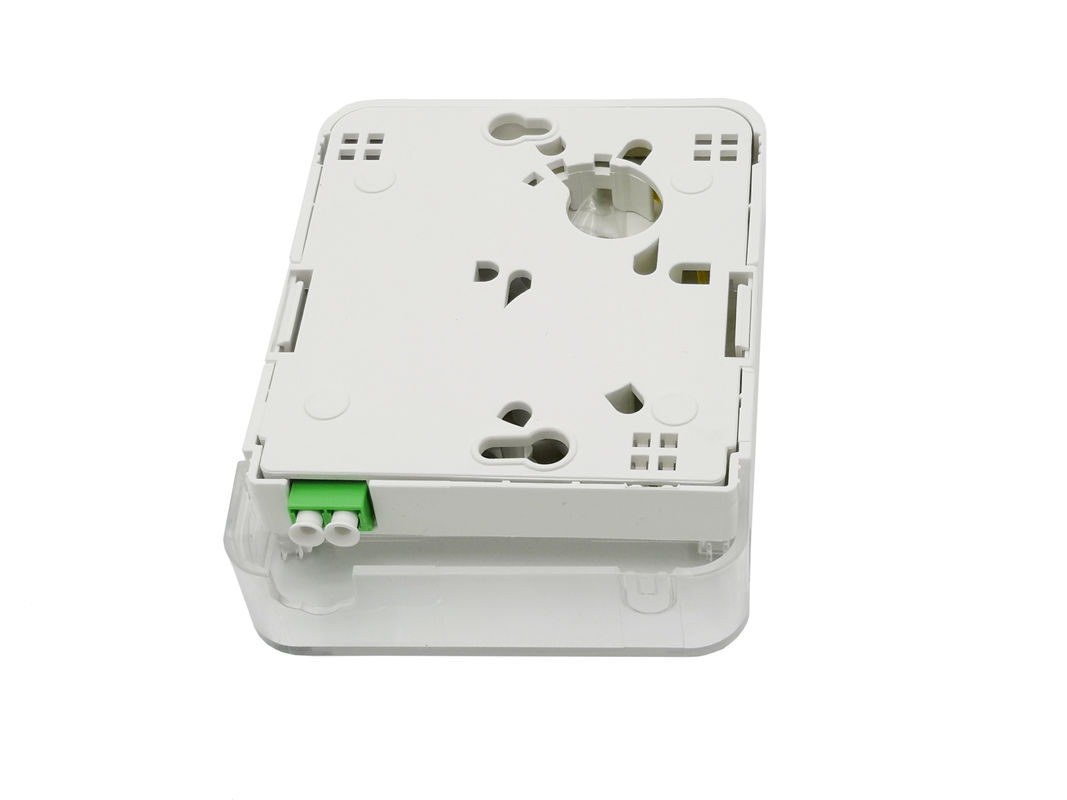

transparent cover for dust proof, can see the adapter port by human eye, wall mount hole on bottom back.

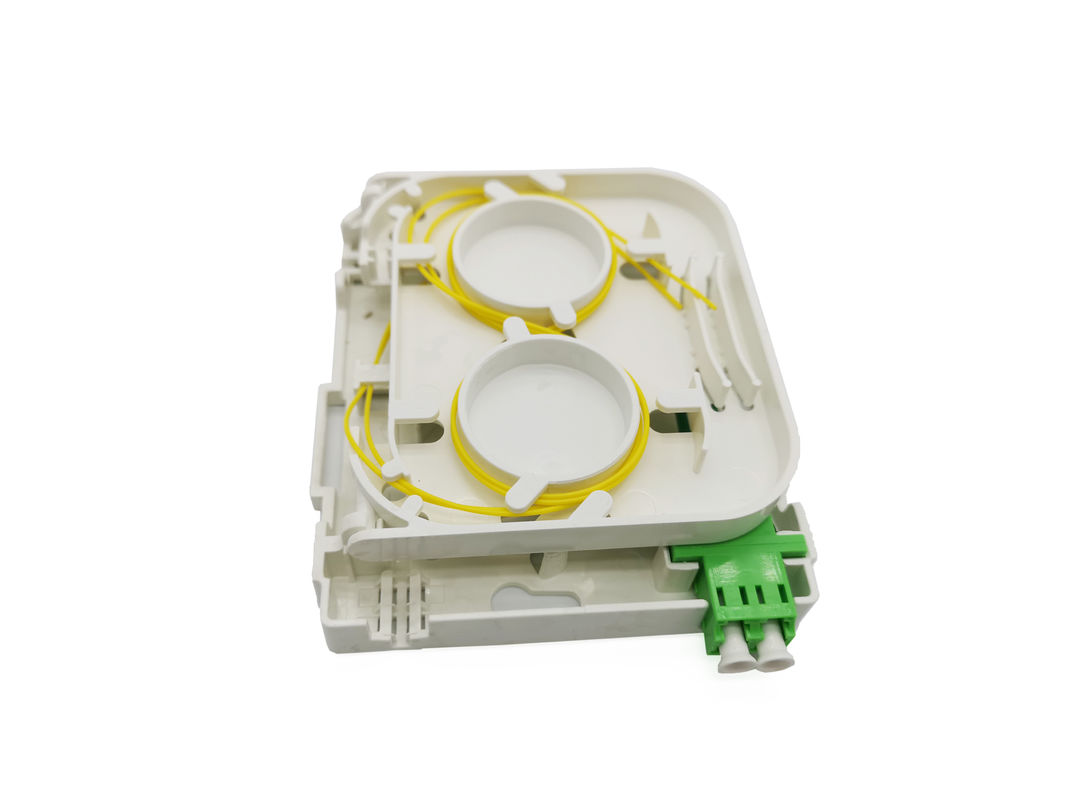

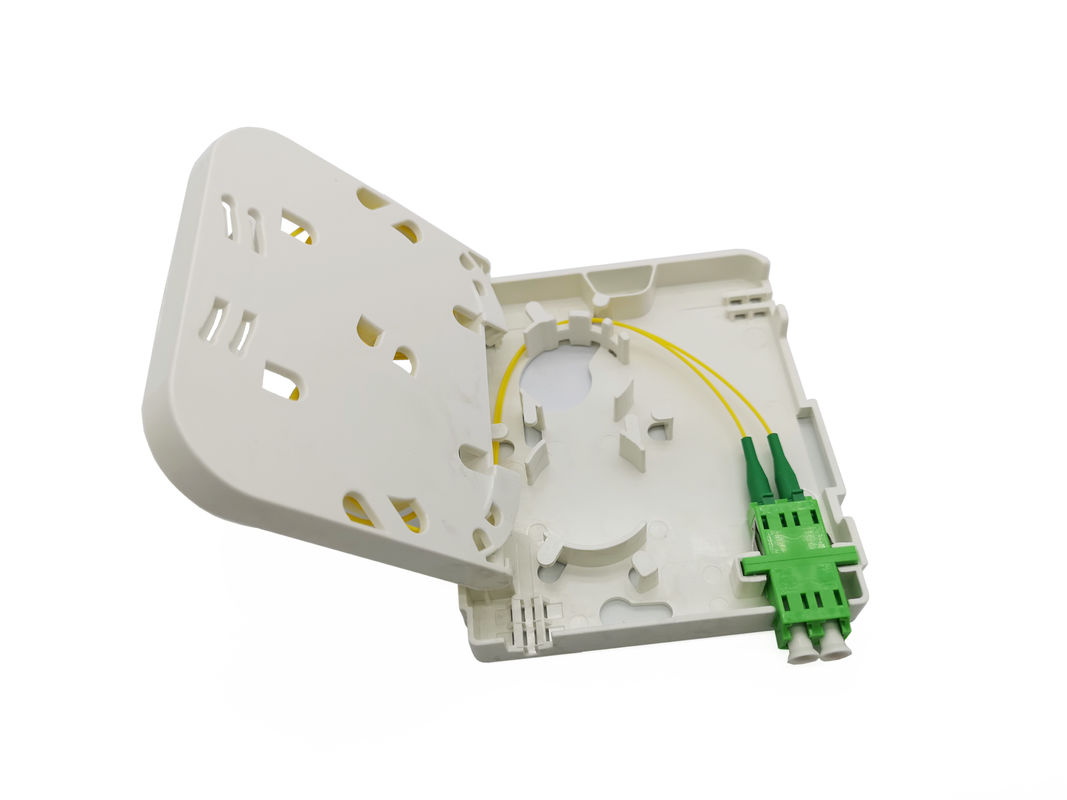

cover is cilp design with box, internal is flip type splice tray, max. fusion 2core and storage routing.
bottom for cable in and out, and 1 port LC dpulex with flange. accessory bag will put in box if empty.
pacakge: 1pc with a bubble bag+1 cardboard box, then put in master shipping box, best protection during transporation.
In order to save cost, accept simple package on customer request.
cable port in front and back, can use ftth figure-8 drop cable or soft indoor cable.

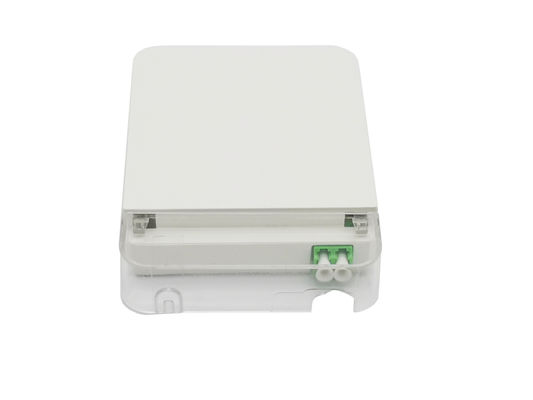

front tranparent cvoer with sign of cable entry and adapter ports, PP material brand new.
|Fiber Capacity||01=1 Fiber, 02=2 Fibers, 04=4 Fibers|
|configuration||E=only Termination box, L=With Adaptor, F=With Adaptor and Pigtail|
|Adaptor Mode||SM=Singlemode, MM=Multimode, OM3=Multimode 10G|
|Fiber Type||OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3,
OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A
|Fiber Length||05=0.5M, 10=1M|
- . TIA/EIA 568.C, Optical Fiber Cabling Components Standard
- . IEC61754, Fiber optic connector interfaces Standard
- . ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
- . GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
- . UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
- . RoHS (Directive on Restriction of Hazardous Substances. )
Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box
to match up the holes and use bolt to fasten.
Ordering for example:
|1 Fiber FTB86E Termination Box, without adaptor and pigtail.|
|2 Fibers FTB86E Termination Box With Singlemode Duplex SC/PC Adaptor.|
|4 Fibers FTB86E Termination Box With Singlemode Quad LC/PC Adaptor.|
|2 Fibers FTB86E Termination Box With Singlemode Duplex LC/PC Adaptor and 0.5M Singlemode LC/PC Pigtail.|
|2 Fibers FTB86E Termination Box With Singlemode Duplex SC/APC Adaptor and 1M Singlemode SC/APC Pigtail.|
YINGDA Produce all kinds of FTTH terminal box, socket panel, wall outlet for Fiber to the home network,
capacity 1 fibers, 2 fibers, 4 fibers all available. If you have inquiry, pls don't forget to send inquiry or questions. Thanks.
