1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors

1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Max Capacity
    4 Cores
  • Outport
    Adapter Port Or Drop Cable
  • Material
    Pc+abs
  • Color
    White
  • Applicable
    2*3 Mm Drop Cable, Indoor Round Cable
  • Size
    116*86*23mm
  • Adapter
    SC/APC Simplex Coupler
  • Structure
    Clip, Transparent Dustproof Design
  • Fiber Mode
    Single Mode, Multimode
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO,SGS
  • Model Number
    FTB86E
  • Minimum Order Quantity
    100 PCS
  • Price
    USD0.6
  • Packaging Details
    92 pcs per carton box
  • Delivery Time
    5-8days
  • Payment Terms
    Western Union, MoneyGram, T/T

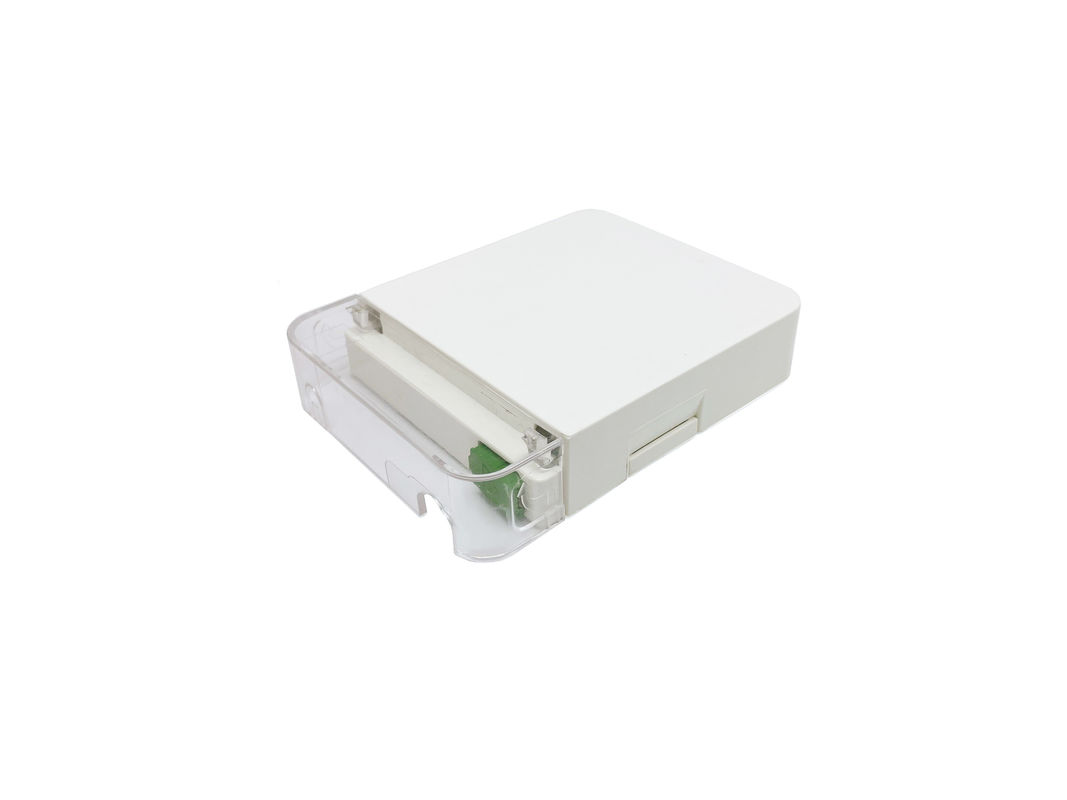

1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors

1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors





The internal customer outlet box is designed for use inside the home. The operator has the choice to

have the box unloaded or equipped with adaptors, the box is designed with integrated shutters to

comply with safety standards.

1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors 01 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors 1

Features

  1. ABS material, high strength plastic
  2. Multiple cable entry points
  3. Integrated heatshrink splice holder
  4. Hinged splice Tray
  5. Holds up to 4 single fibres 1 x SC Duplex or 1 x LC Quad
  6. Integrated fibre management system
  7. Integrated shutter protects against laser exposure and dust
  8. Suitable for indoor cable
  9. Wall mounted with expansion screws
  10. Special design, compact size
  11. Pigtails, adapter pre-assembly acceptable

Specifications



Model FTB86E
Maximum Single Fibre Count 4 fibers LC
Maximum Number of heat splice 4 pcs single fusion
Number of cable entry points 4port
Height 86mm
Width 116mm
Depth 23mm
Color White
Material ABS
Flame Retardant Yes or not, on customer request
Designed in accordance with TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1




Applications

  • FTTH (fiber to the home system)
  • CATV, LAN,WAN network

Order information



Model no. FTB86E
Fiber Capacity 01=1 Fiber, 02=2 Fibers, 04=4 Fibers
configuration E=only Termination box, L=With Adaptor, F=With Adaptor and Pigtail
Adaptor Mode SM=Singlemode, MM=Multimode, OM3=Multimode 10G
Fiber Type OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3,
OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A
Fiber Length 05=0.5M, 10=1M
Connectors SC/UPC,SC/APC,LC/APC,LC/UPC
Adapter mode Simplex, duplex



More photos

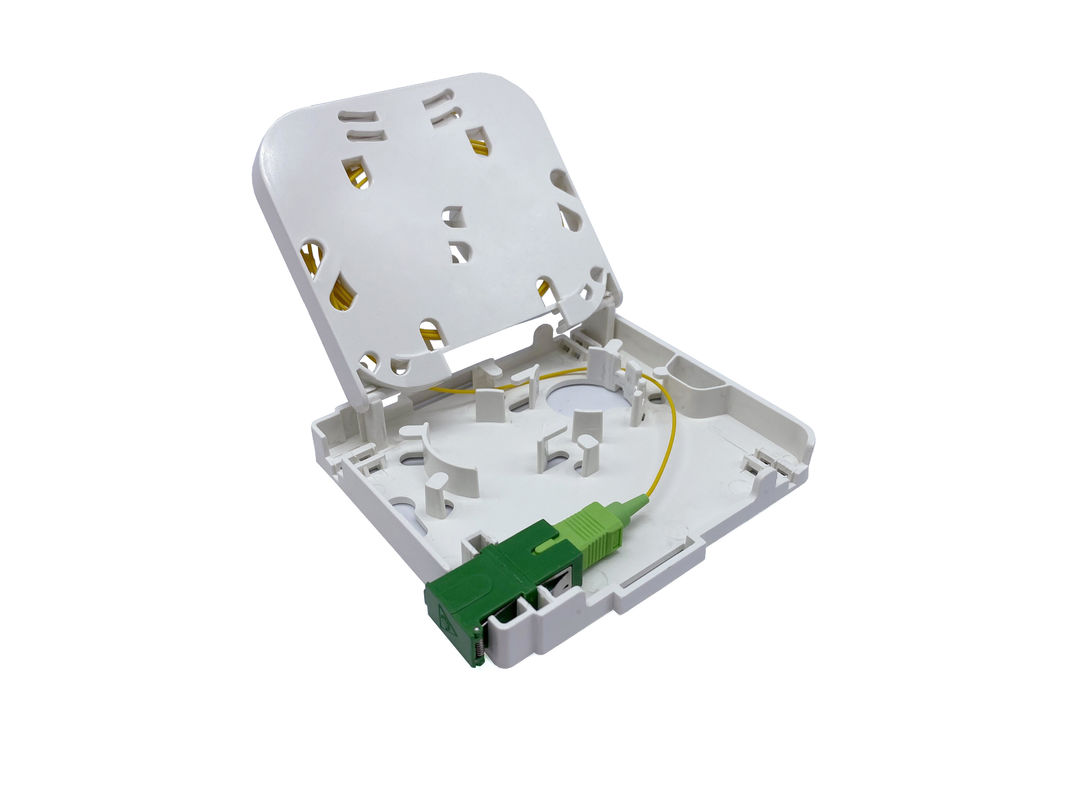

1. Front side with tray overview

1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors 2

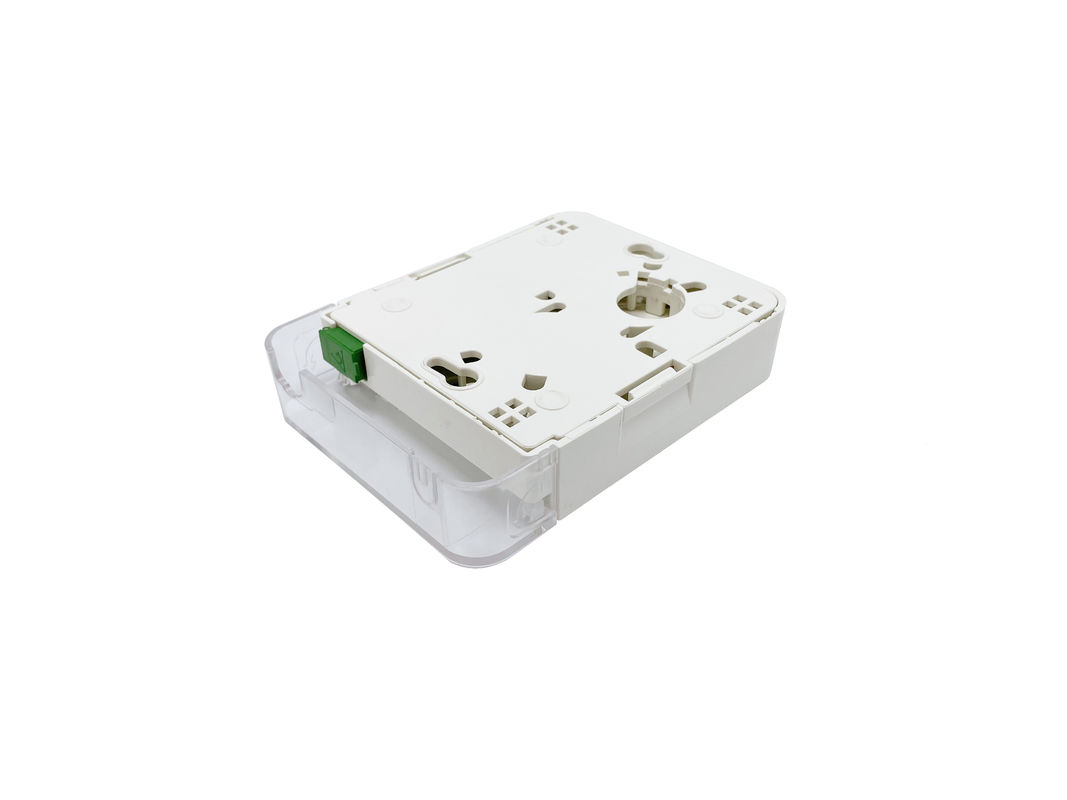

2. Back side with tray overview

1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors 3

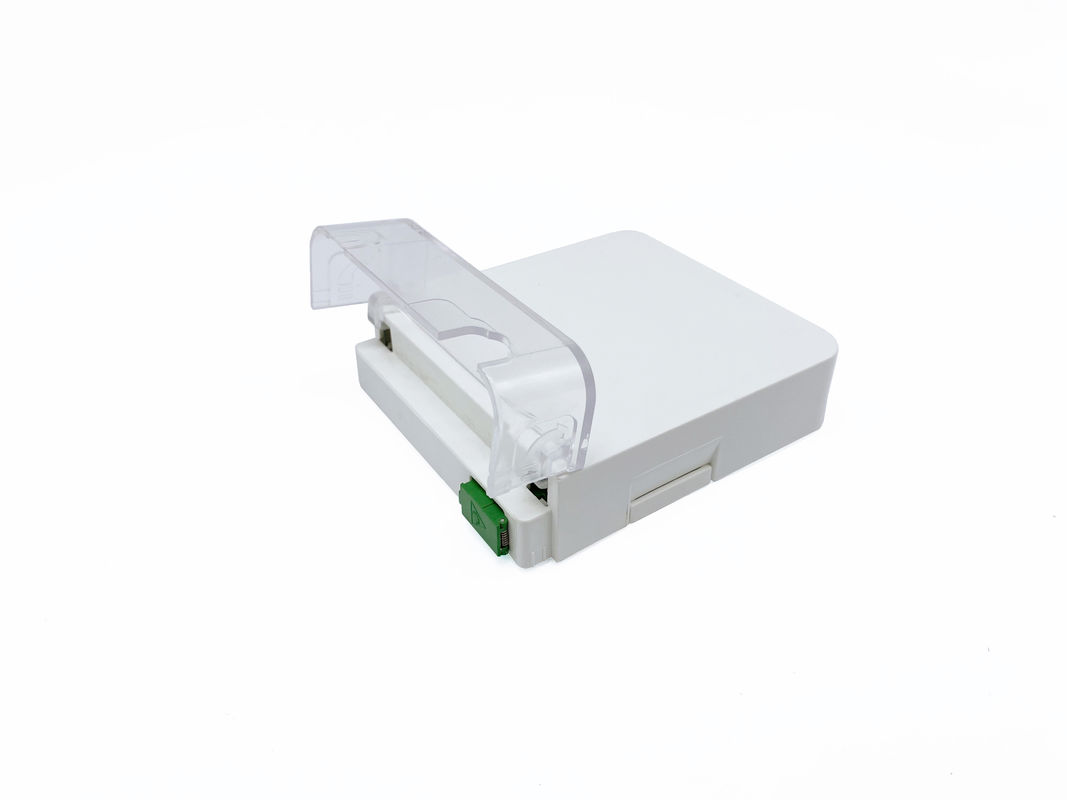

3. One side with tray view1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors 4

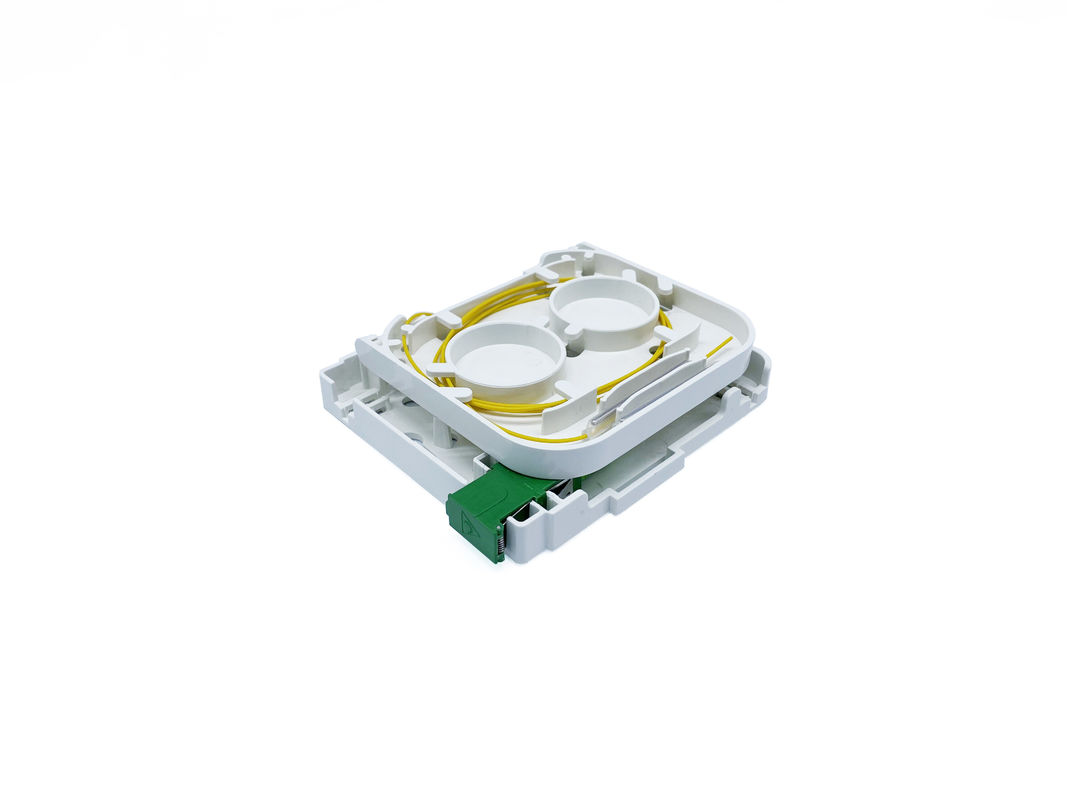

3. Back coer view

1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors 5

FTTH Network on-site installation on the wall, the wall mounting expansion screws included when delivery. Pls don't worry.



1 Port Customer Wall Outlet Fiber Terminal Box Faceplate SC / APC Connectors 6
