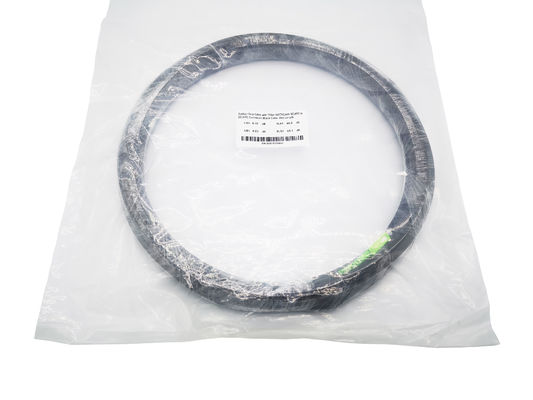

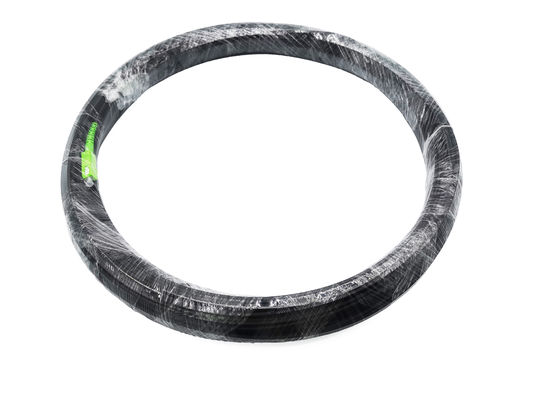

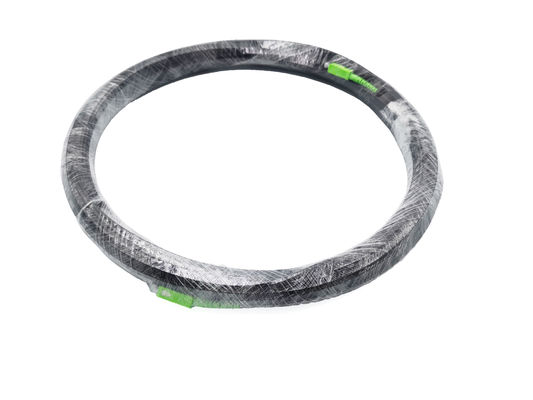

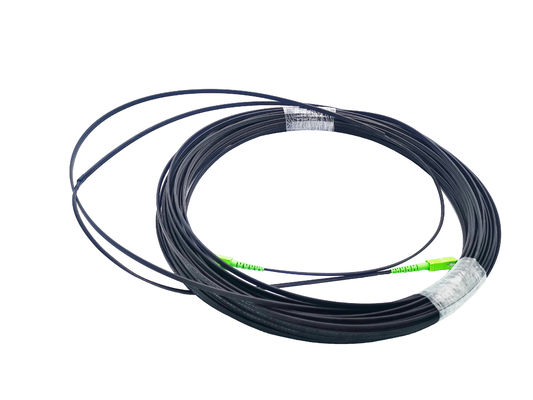

FTTH SC Patch Cord Self supporting 3 Steel Wire Drop Cable 2x5mm G657A1 Black Outdoor
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | FTTH Outdoor Wiring | Connector | SC / APC |
|---|---|---|---|
| Fiber Count | 1 Core | Fiber Type | G657A1 |
| Cable Sheath | LSZH /PVC | Cable Length | 3 Meters |
| Cable Color | Black / White | Insertion Loss | < 0.3dB |
| Cable Strength Member | FRP / Steel Wire | Cable Diameter | 2.0*5.0mm |
| High Light | fiber optic patch cable,fiber optic jumper |
||
Product Description
FTTH SC Patch Cord Self supporting 3 Steel Wire Drop Cable 2x5mm G657A1 Black Outdoor
This outdoor self supporting ftth flat drop cable is also called butterfly drpo cable. Itis widely used in FTTH on-site construction.
The strcture is like below:
the optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP are placed at the two sides,
then the cable is completed with a black or color LSZH Sheath.
Specification
|
Item |
SC FC ST LC drop cable PATCH CORD |
||
|
IL(dB) |
≤0.2 |
Max IL(dB) |
≤0.3 |
|
Working temperature(°C) |
-40~+80 |
Temperature cycle(°C) |
-40~+75 |
|
Storage temperature(°C) |
-40~+85 |
Interchangeability (dB) |
≤0.2 |
|
Plug times |
1000 times |
Repeat ability(dB) |
≤0.1 |
|
RL (dB) |
≥45 ≥50 ≥60 |
Immersion |
Temperature 43°C, PH5.5 for 7days |
Features
- High bandwidth and excellent communication transmission property;
- Two parallel FRP strength members make sure good performance of crush resistance to protect the fiber;
- Simple structure,light weight and high performance;
- Low smoke zero halogen and flame retardant sheath.
Application
- Optical fiber pigtail, also named
- CATV
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
Order information
FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
|
FHPC |
Connector type
|
Fiber count |
Cable type |
Strength member |
Fiber type |
Cable color |
Cable Length |
|
FH=ftth |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Pc=patch cord |
SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... |
01=1core 02=2core 04=4core .... |
F8=Figure 8 SF=self-supporting |
F=FRP S=steel |
5D=G.652D A1=G.657A1 A2=G.657A2
|
W=white B=Black Y=yellow |
01=1m 02=2m ... 10=10m ... |
key word: ftth patch cord, ftth patch cable, drop cable patch cord
