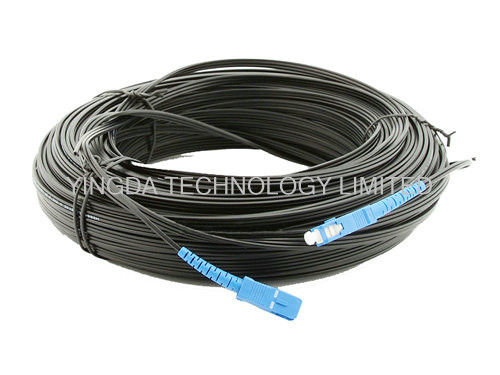

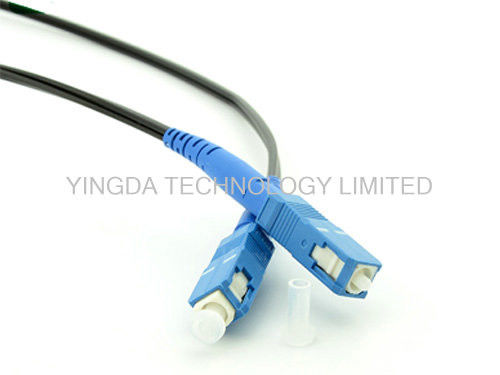

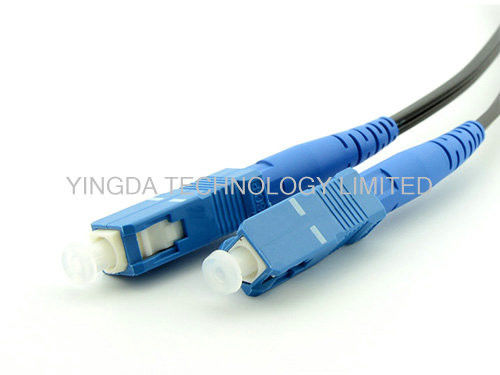

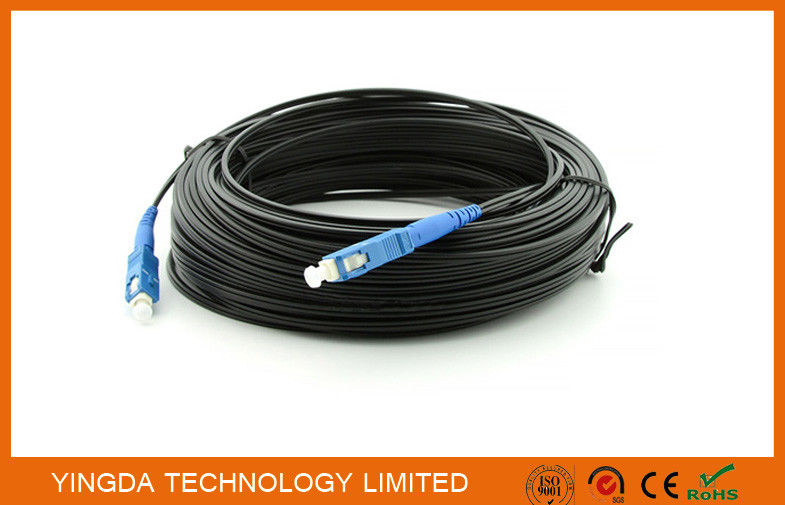

Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black

Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black

  • High Light

    fiber optic patch cable

    ,

    fiber optic jumper

  • Application
    FTTH Indoor Outdoor Wiring
  • Connector
    SC / UPC
  • Fiber Count
    1 Core
  • Fiber Type
    G657A1
  • Cable Sheath
    LSZH
  • Cable Length
    200meters
  • Cable Color
    Black / White
  • Insertion Loss
    < 0.3dB
  • Cable Strength Member
    0.5mm Phosphating Steel Wire
  • Drop Cable Diameter
    2*3.0mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS,ROHS
  • Model Number
    FHPC-SCU-01-SFS-A1B-200
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1 piece / bag

Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black



Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black



We are leading manufacturer who specialized in cable assembling and connectors, our main products

including fiber optics patch cord, pigtail, connector, adapter, coupler/PLC Splitter ect.



Features:

  1. Single mode and Multimode
  2. drop cable 1core, 2core, 4core,...12cores available
  3. Custom order length
  4. Cable color:white, black, yellow or customized
  5. All parts compliant with RoHS
  6. IEC standard compatible
  7. GR-326-CORE Compliant



Application

  • FTTX + LAN
  • Optical fiber CATV
  • Optical communication system
  • Telecommunication



Specification



Parameter

type

PC

SPC

UPC

APC

Insertion Loss

SM

≤0.25dB

≤0.20dB

≤0.20dB

≤0.15dB



MM

≤0.30dB

≤0.20dB

≤0.20dB

≤0.30dB

Return Loss

SM

≥45dB

≥50dB

≥55dB

≥65dB



MM

≥35dB

≥35dB

≥35dB

≥35dB

Mating Durability(500 timer)

Additional Loss≤0.1dB, Return Loss Variability<5dB

Temperature Stability(-40°C~75°C)

Additional Loss≤0.2dB, Return Loss Variability<5dB

Operating Temperature

-40°C~+75°C



Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black 0

Order information



FHPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7



FHPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...



Self-supporting Bow-type drop cable (GJXFCH) structure

Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black 1



Mass Production:



Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black 2Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black 3
