Outdoor Fiber Optic Patch Cord FTTH Network Patch Cable 1 Core SC / UPC - SC / UPC 40M

Place of Origin china
Brand Name YINGDA
Certification ISO,SGS,ROHS
Model Number FHPC-SCU-01-SFS-A1B-40
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details 1 piece / bag

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application FTTH Indoor Outdoor Wiring Connector SC / UPC
Fiber Count 1 Core Fiber Type G657A1
Cable Sheath LSZH Cable Length 40 Meters
Cable Color Black / White Insertion Loss < 0.3dB
Cable Strength Member Steel Wire Drop Cable Diameter 2*3.0mm
High Light

fiber optic patch cable

,

fiber optic jumper

Leave a Message
Product Description



Outdoor Fiber Optic Patch Cord FTTH Network Patch Cable 1 Core SC / UPC - SC / UPC 40M



The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP are placed at the two

sides. A steel wire as the additional strength member is also applied,then the cable is completed with a black

or color LSZH Sheath.



Features

  • low-bend-sensitivity fiber,high bandwidth and excellent communication transmission property;
  • Two parallel FRP strength members, good performance of crush resistance to protect the fiber;
  • Single steel wire or messagers as the additional strength member ensures good performance of tensile strength;
  • Simple structure, light weight and high practicability;
  • Novel flute design, easily strip and splice, simplify the installation and maintenance;
  • Low smoke, zero halogen and flame retardant sheath.
  • LC SC ST FC connectors available
  • FTTH fast connector can be used.



Application

  • Used in access network or access cable from outdoor to indoor in customer premises network
  • Used as access building cable in premises distribution system,especially used in indoor or outdoor aerial
  • access cabling



GJXFCH Drop Cable

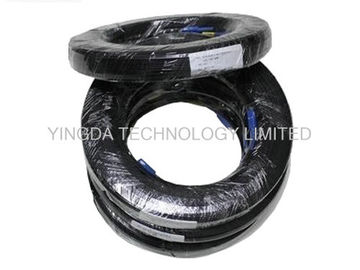

Outdoor Fiber Optic Patch Cord FTTH Network Patch Cable 1 Core SC / UPC - SC / UPC 40M 0

Implementation standards

  • YD/T1997-2009 access network butterfly optical drop cable

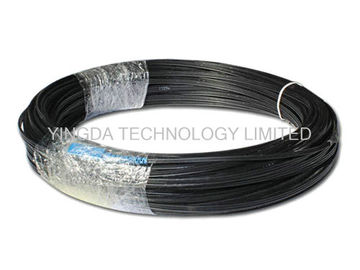

Outdoor Fiber Optic Patch Cord FTTH Network Patch Cable 1 Core SC / UPC - SC / UPC 40M 1

Specification



Item

SC FC ST LC drop cable PATCH CORD

IL(dB)

≤0.2

Max IL(dB)

≤0.3

Working temperature(°C)

-40~+80

Temperature cycle(°C)

-40~+75

Storage temperature(°C)

-40~+85

Interchangeability (dB)

≤0.2

Plug times

1000 times

Repeat ability(dB)

≤0.1

RL (dB)

≥45 ≥50 ≥60

Immersion

Temperature 43°C,

PH5.5 for 7days





Order information



FHPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7



FHPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...





More photos:

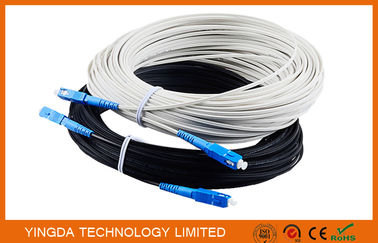

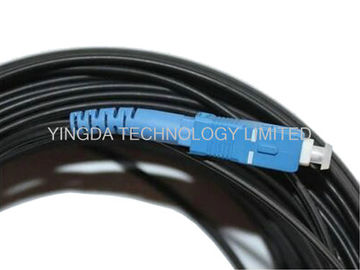

Outdoor Fiber Optic Patch Cord FTTH Network Patch Cable 1 Core SC / UPC - SC / UPC 40M 2Outdoor Fiber Optic Patch Cord FTTH Network Patch Cable 1 Core SC / UPC - SC / UPC 40M 3Outdoor Fiber Optic Patch Cord FTTH Network Patch Cable 1 Core SC / UPC - SC / UPC 40M 4
