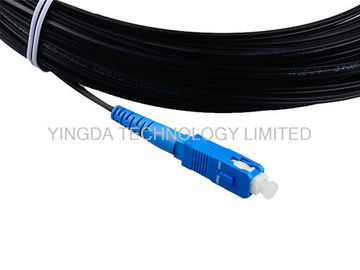

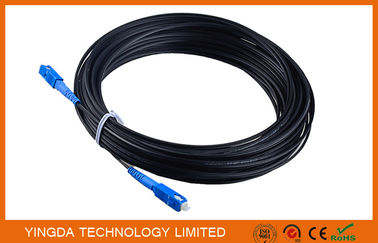

Self Supporting FTTH Patch Cord SC - SC Fiber Drop Cable Black FRP LSZH 20M

  • Self Supporting FTTH Patch Cord SC - SC Fiber Drop Cable Black FRP LSZH 20M
  • Self Supporting FTTH Patch Cord SC - SC Fiber Drop Cable Black FRP LSZH 20M
  • Self Supporting FTTH Patch Cord SC - SC Fiber Drop Cable Black FRP LSZH 20M
  • Self Supporting FTTH Patch Cord SC - SC Fiber Drop Cable Black FRP LSZH 20M
  • Self Supporting FTTH Patch Cord SC - SC Fiber Drop Cable Black FRP LSZH 20M
Place of Origin china
Brand Name YINGDA
Certification ISO,SGS,ROHS
Model Number FHPC-SCU-01-SFF-A1B-20
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details 1 piece / bag

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application FTTH Indoor Outdoor Wiring Connector SC / UPC
Fiber Count 1 Core Fiber Type G657A1
Cable Sheath LSZH Cable Length 20meters
Cable Color Black / White Insertion Loss < 0.3dB
Cable Strength Member FRP (Fiber Reinforced Plastic) +Steel Wire Drop Cable Diameter 2*3.0mm
High Light

fiber optic patch cable

,

fiber optic jumper
Leave a Message
Product Description


Self Supporting FTTH Patch Cord SC - SC Fiber Drop Cable Black FRP LSZH 20M

We are leading manufacturer who specialized in cable assembling and connectors, our main products
 including fiber optics patch cord, pigtail, connector, adapter, coupler/PLC Splitter ect.

Features

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
  • transmission property;
  • Two parallel FRP strength members ensure good performance of crush resistance to protect the
  • fiber;
  • Single steel wire or messagers as the additional strength member ensures good performance of
  •  tensile strength;
  • Simple structure, light weight and high practicability;
  • Novel flute design, easily strip and splice, simplify the installation and maintenance;
  • Low smoke, zero halogen and flame retardant sheath.
  • LC SC ST FC connectors available
  • FTTH fast connector can be used.



FTTH drop cable Optical Characteristics




G.652

G.655

50/125μm

62.5/125μm

Attenuation
(+20℃)

@850nm





≤3.5 dB/km

≤3.5 dB/km

@1300nm





≤1.5 dB/km

≤1.5 dB/km

@1310nm

≤0.45 dB/km

≤0.50 dB/km





@1550nm

≤0.30 dB/km

≤0.50dB/km





Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm






FTTH drop cable Technical Parameters


Fiber
Count

Cable
Diameter
mm

Cable
Weight
kg/km

Tensile
Strength
Long/Short
Term
N

Crush
Resistance
Long/Short
Term
N/100mm

Bending
Radius
Static
/Dynamic
mm

1

(2.0±0.2)×(5.0±0.2)

20

60/120

300/1000

15/30

2

(2.0±0.2)×(5.0±0.2)

20

60/120

300/1000

15/30

3

(2.0±0.2)×(5.6±0.2)

21

60/120

300/1000

15/30

4

(2.0±0.2)×(5.6±0.2)

22

60/120

300/1000

15/30


Storage/Operating Temperature : -20℃ to + 60℃

Self Supporting FTTH Patch Cord SC - SC Fiber Drop Cable Black FRP LSZH 20M 0
Patch Cord Specification


Item

SC FC ST LC drop cable PATCH CORD

IL(dB)

≤0.2

Max IL(dB)

≤0.3

Working temperature(°C)

-40~+80

Temperature cycle(°C)

-40~+75

Storage temperature(°C)

-40~+85

Interchangeability (dB)

≤0.2

Plug times

1000 times

Repeat ability(dB)

≤0.1

RL (dB)

≥45 ≥50 ≥60

Immersion

Temperature 43°C,
PH5.5 for 7days



Order information

FHPC-XXX-XX-XXX-XXX-XX
        1 - 2  - 3 4 - 5 6 - 7


FHPC

Connector
type


Fiber
count

Cable
type

Strength
member

Fiber type

Cable
color

Cable
Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch
cord

SCU=SC/UPC
SCA=SC/APC
LCU=LC/UPC
....

01=1core
02=2core
04=4core
....

F8=Figure 8
SF=self-supporting

F=FRP
S=steel

5D=G.652D
A1=G.657A1
A2=G.657A2


W=white
B=Black
Y=yellow

01=1m
02=2m
...
10=10m
...


GJXFCH Drop Cable

Self Supporting FTTH Patch Cord SC - SC Fiber Drop Cable Black FRP LSZH 20M 1

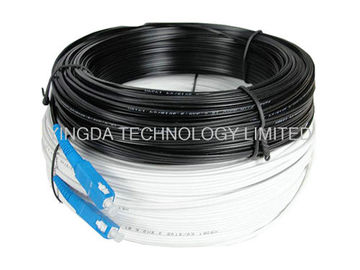

More photos:
