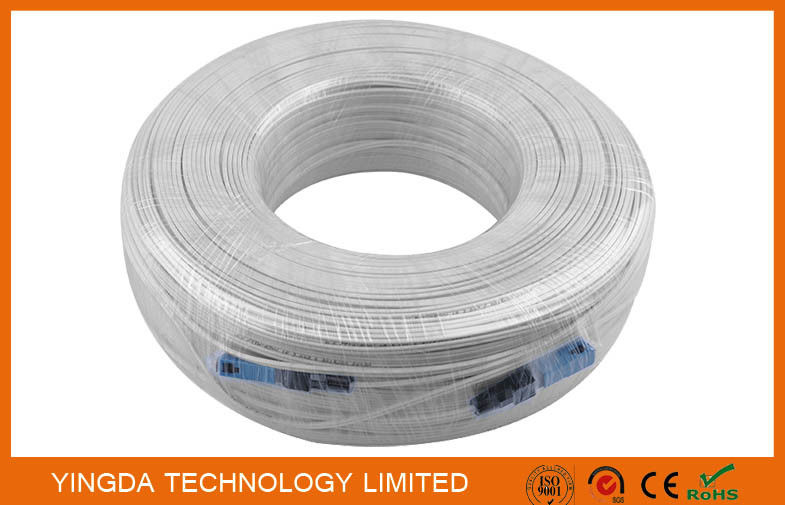

White Fibre Optic Patch Leads With FIC Fast Connector SC Simplex SM 200M IL<0.3dB

Place of Origin china
Brand Name YINGDA
Certification ISO,SGS,ROHS
Model Number YPDC-SASA-23200
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details 1 piece / bag
Delivery Time 3days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application FTTH Patch Cord Connector SC UPC Connectors
Fiber Count 1 Core Fiber Type G652D
Cable Sheath LSZH Cable Length 200 Meters
Cable Color White Insertion Loss <0.3dB
Cable Strength Member FRP (Fiber Reinforced Plastic) Drop Cable Diameter 2.0*3.0mm
High Light

fiber optic patch cable

,

fiber optic jumper

Leave a Message
Product Description

White Fibre Optic Patch Leads With FIC Fast Connector SC / UPC Simplex SM 200M IL<0.3dB



Quick details of fast connector patch cord

  • Ftth drop cable 2.0*3.0mm
  • connector is fast connector, not normal type
  • IL<0.3db
  • Length can be customized



Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center, on both sides is two parallel nonmetallic

reinforcing element (FRP) or metallic strength member,finally extrusion black or color polyvinyl chloride (PVC) or low smoke

halogen-free flame retardant (LSZH) sheath.



Features

  • Low-bend sensitivity fiber,high bandwidth, excellent communication transmission property;
  • 2pcs parallel FRP strength members, good performance of crush resistance
  • Low smoke, zero halogen and flame retardant sheath.
  • Simple structure, light weight and high practicability;
  • Novel flute design, easily strip and splice, simplify the installation and maintenance;

Application

  • Used as access building cable
  • Used in indoor cabling especially used for FTTH

Patch cord Specification



Item

SC FC ST LC drop cable PATCH CORD

IL(dB)

≤0.2

Max IL(dB)

≤0.3

Working temperature(°C)

-40~+80

Temperature cycle(°C)

-40~+75

Storage temperature(°C)

-40~+85

Interchangeability (dB)

≤0.2

Plug times

1000 times

Repeat ability(dB)

≤0.1

RL (dB)

≥45 ≥50 ≥60

Immersion

Temperature 43°C,

PH5.5 for 7days





FTTH drop cable GJXFH specification

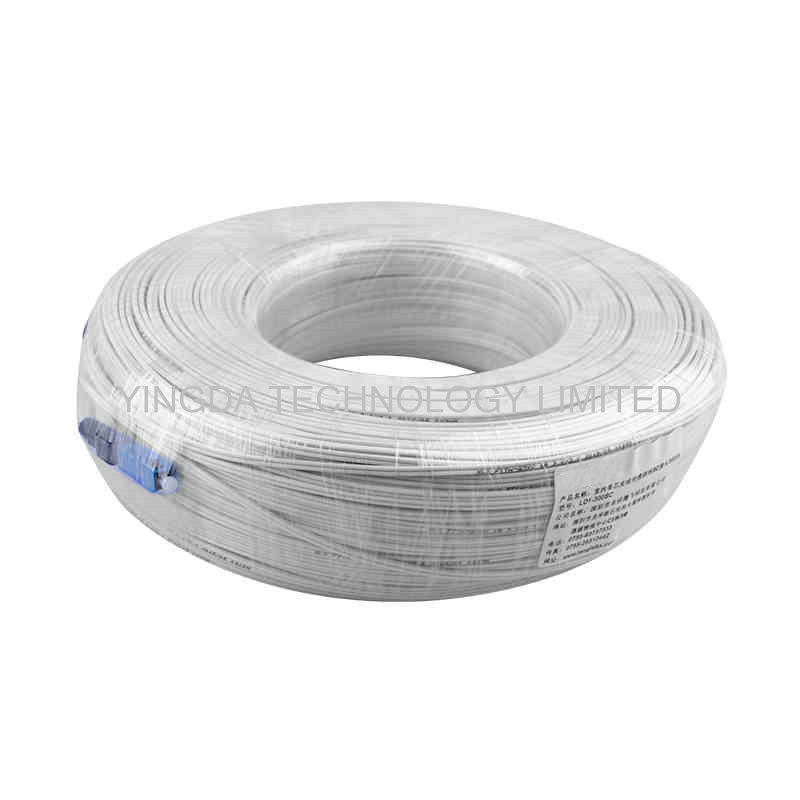

White Fibre Optic Patch Leads With FIC Fast Connector SC Simplex SM 200M IL<0.3dB 0

Fiber

Count

Cable

Diameter
mm

Cable

Weight
kg/km

Tensile Strength
Long/Short Term
N

Crush Resistance
Long/Short Term
N/100mm

Bending Radius
Static
/Dynamic
mm

1

(2.0±0.2)×(3.0±0.2)

8

30/60

300/1000

15/30

2

(2.0±0.2)×(3.4±0.2)

8.5

30/60

300/1000

15/30

3

(2.0±0.2)×(3.8±0.2)

9

30/60

300/1000

15/30

4

(2.0±0.2)×(4.0±0.2)

10

30/60

300/1000

15/30

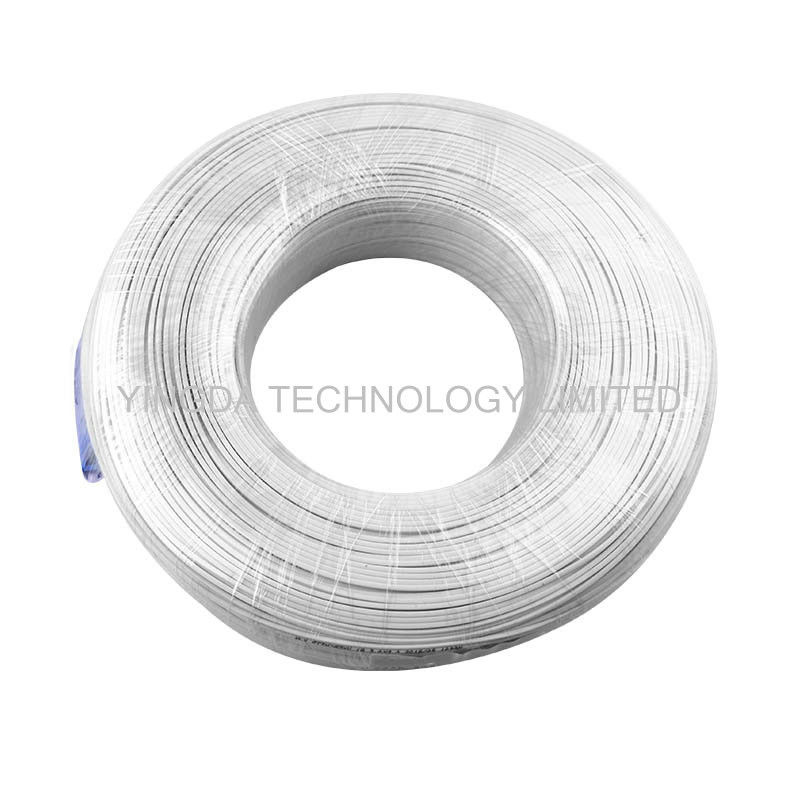

White Fibre Optic Patch Leads With FIC Fast Connector SC Simplex SM 200M IL<0.3dB 1


Order information

YDPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7

YDPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...

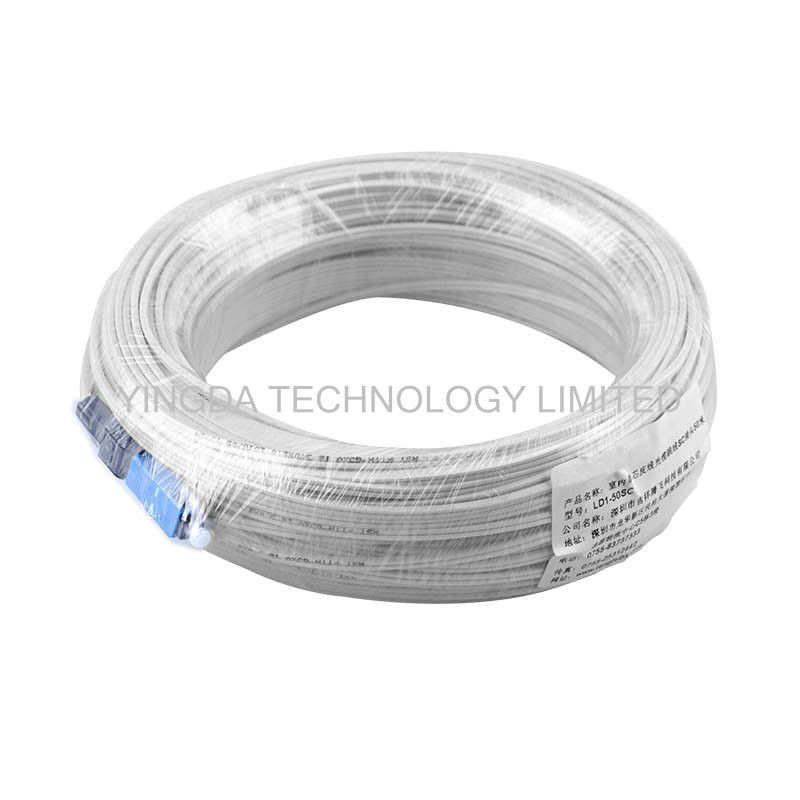

More photos:
