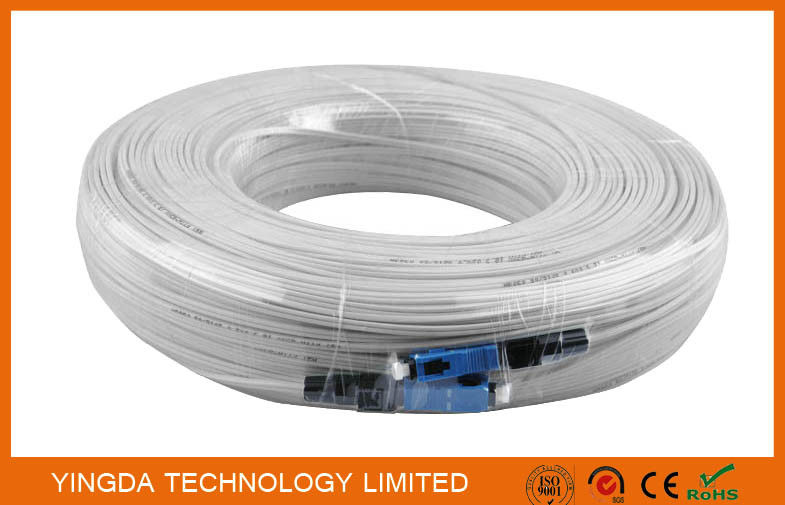

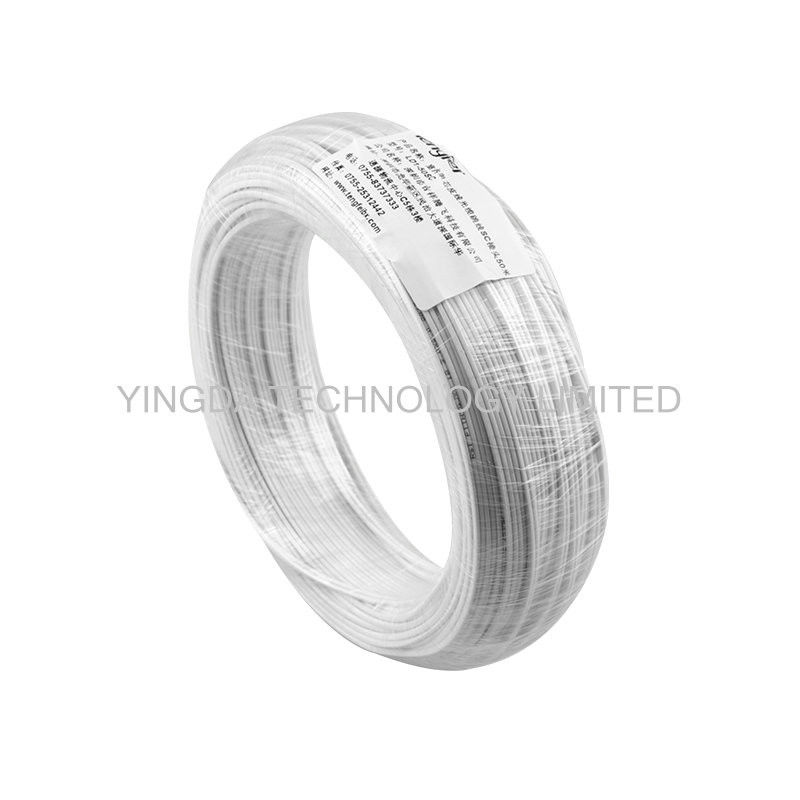

150M Fibre Patch Leads In FTTH Network Patch Cord Indoor Wiring LSZH Sheath GJXFH
-
High Light
fiber optic patch cable
,fiber optic jumper
-
ApplicationFTTH Indoor Wiring
-
ConnectorSC / UPC
-
Fiber Count1 Core
-
Fiber TypeG657A2
-
Cable SheathLSZH
-
Cable Length150 Meters
-
Cable ColorWhite
-
Insertion Loss<0.3dB
-
Cable Strength MemberFRP (Fiber Reinforced Plastic)
-
Drop Cable Diameter2*3.0mm
-
Place of Originchina
-
Brand NameYINGDA
-
CertificationISO,SGS,ROHS
-
Model NumberFHPC-SCU-01-F8F-A2W-150
-
Minimum Order Quantity100PCS
-
PriceNegotiable
-
Packaging Details1 piece / bag
150M Fibre Patch Leads In FTTH Network Patch Cord Indoor Wiring LSZH Sheath GJXFH
150M Fibre Patch Leads In FTTH Network Patch Cord Indoor Wiring LSZH Sheath GJXFH
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are
placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
GJXFH Cable Structure
Features
- Special high bending radius optical fiber, provides wider bandwidth, enhance the network
- transmission performance;
- Two parallel FRP or metallic strength member so that the cable has good compression
- performance, protect the fiber;
- Simple structure, light weight, strong practicability;
- The unique groove design, easy to peel, convenient connection, simple installation and maintenance;
- Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath,
- environmental protection.
- Can be matched with a plurality of field connector, can be terminated at site.
- Due to its soft and light, it is widely used in access network; so it is also called indoor access
- network butterfly cable, and due to its shape called butterfly optical cable, figure 8 cable.
Application
- Used as access building cable
- Used in indoor cabling especially used for FTTH
FTTH Cable Specification
|
Fiber Count |
Cable Diameter |
Cable Weight |
Tensile Strength |
Crush Resistance |
Bending Radius |
|
1 |
(2.0±0.2)×(3.0±0.2) |
8 |
30/60 |
300/1000 |
15/30 |
|
2 |
(2.0±0.2)×(3.4±0.2) |
8.5 |
30/60 |
300/1000 |
15/30 |
|
3 |
(2.0±0.2)×(3.8±0.2) |
9 |
30/60 |
300/1000 |
15/30 |
|
4 |
(2.0±0.2)×(4.0±0.2) |
10 |
30/60 |
300/1000 |
15/30 |
Patch Cord Specification
|
Item |
SC FC ST LC drop cable PATCH CORD |
||
|
IL(dB) |
≤0.2 |
Max IL(dB) |
≤0.3 |
|
Working temperature(°C) |
-40~+80 |
Temperature cycle(°C) |
-40~+75 |
|
Storage temperature(°C) |
-40~+85 |
Interchangeability (dB) |
≤0.2 |
|
Plug times |
1000 times |
Repeat ability(dB) |
≤0.1 |
|
RL (dB) |
≥45 ≥50 ≥60 |
Immersion |
Temperature 43°C, PH5.5 for 7days |
Order information
FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
|
FHPC |
Connector type
|
Fiber count |
Cable type |
Strength member |
Fiber type |
Cable color |
Cable Length |
|
FH=ftth |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Pc=patch cord |
SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... |
01=1core 02=2core 04=4core .... |
F8=Figure 8 SF=self-supporting |
F=FRP S=steel |
5D=G.652D A1=G.657A1 A2=G.657A2
|
W=white B=Black Y=yellow |
01=1m 02=2m ... 10=10m ... |
FTTH Drop Cable can do with another connectors like FC ST LC MTRJ, ETC..
Below is FC/PC, FC/UPC, FC/APC for your reference:
Our products are sold all over the world, you can rest assured.
