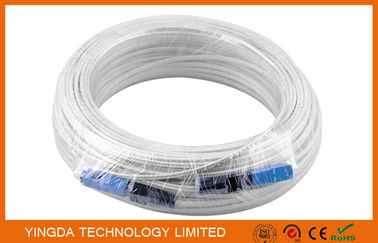

100 Meters Fiber Optic Patch Cord SC / SC SM SX Patch Cord FTTH Drop Cable

Name: 100 Meters Fiber Optic Patch Cord SC / SC SM SX Patch Cord FTTH Drop Cable
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FHPC-SCU-01-F8F-A1W-100
Price: 14.36 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FHPC-SCU-01-F8F-A1W-100
MOQ:	100PCS
Price:	0.36USD-30USD

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO,SGS,ROHS

Application:

FTTH Indoor Wiring

Connector:

SC / UPC

Fiber Count:

1 Core

Fiber Type:

G657A1

Cable Sheath:

LSZH

Cable Length:

100 Meters

Cable Color:

White

Insertion Loss:

<0.3dB

Cable Strength Member:

FRP (Fiber Reinforced Plastic)

Drop Cable Diameter:

2*3.0mm

Product Name:

Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord

Packaging Details:

1 piece / bag

Highlight:

fiber optic patch cable

fiber optic jumper

Product Description

100 Meters Fiber Optic Patch Cord SC / SC SM SX Patch Cord FTTH Drop Cable

Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center, on both sides is

two parallel nonmetallic reinforcing element (FRP) or metallic strength member,finally extrusion black or

color polyvinyl chloride (PVC) or low smoke halogen-free flame retardant (LSZH) sheath.

GJXFH Cable Structure

Features

Special high bending radius optical fiber, provides wider bandwidth, enhance the network
transmission performance;
Two parallel FRP or metallic strength member so that the cable has good compression
performance, protect the fiber;
Simple structure, light weight, strong practicability;
The unique groove design, easy to peel, convenient connection, simple installation and maintenance;
Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath,
environmental protection.
Can be matched with a plurality of field connector, can be terminated at site.
Due to its soft and light, it is widely used in access network; so it is also called indoor access
network butterfly cable, and due to its shape called butterfly optical cable, figure 8 cable.

Application

Used as access building cable
Used in indoor cabling especially used for FTTH

Specification

Item	SC FC ST LC drop cable PATCH CORD
IL(dB)	≤0.2	Max IL(dB)	≤0.3
Working temperature(°C)	-40~+80	Temperature cycle(°C)	-40~+75
Storage temperature(°C)	-40~+85	Interchangeability (dB)	≤0.2
Plug times	1000 times	Repeat ability(dB)	≤0.1
RL (dB)	≥45 ≥50 ≥60	Immersion	Temperature 43°C, PH5.5 for 7days

Implementation standards

YD/T1997-2009 access network butterfly optical drop cable

Order information

FHPC-XXX-XX-XXX-XXX-XX

1 - 2 - 3 4 - 5 6 - 7

FHPC

Connector

type

Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2

W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...
