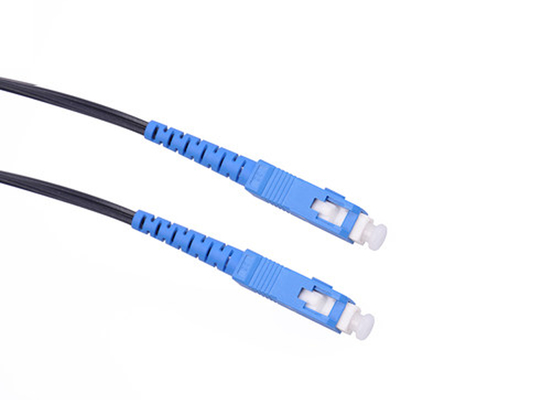

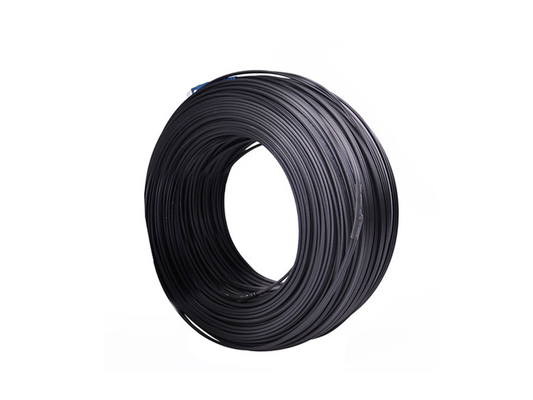

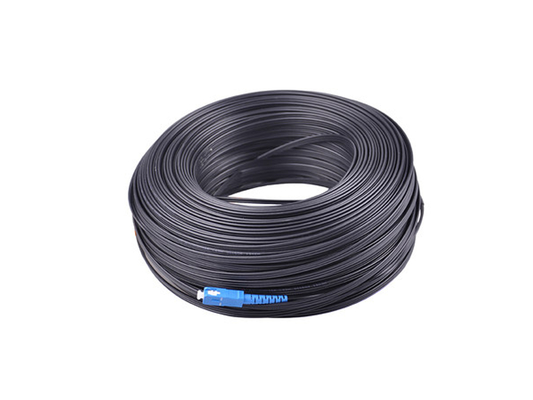

FTTH Figure 8 Flat Drop Cable Fiber Optical Patch Cord SC Connector 200M Black 2.0*3.0mm

  • FTTH Figure 8 Flat Drop Cable Fiber Optical Patch Cord SC Connector 200M Black 2.0*3.0mm
  • FTTH Figure 8 Flat Drop Cable Fiber Optical Patch Cord SC Connector 200M Black 2.0*3.0mm
  • FTTH Figure 8 Flat Drop Cable Fiber Optical Patch Cord SC Connector 200M Black 2.0*3.0mm
  • FTTH Figure 8 Flat Drop Cable Fiber Optical Patch Cord SC Connector 200M Black 2.0*3.0mm
  • FTTH Figure 8 Flat Drop Cable Fiber Optical Patch Cord SC Connector 200M Black 2.0*3.0mm
Place of Origin china
Brand Name YINGDA
Certification ISO,SGS,ROHS
Model Number FHPC-SCU-01-F8F-A1W-50
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details 1 piece / bag

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application FTTH Indoor Wiring Cable Connector SC UPC Connector
Fiber Count 1 Core Fiber Type G657A1
Cable Sheath LSZH Cable Length 50 Meters Patch Cord
Cable Color White Insertion Loss <0.3dB
Cable Strength Member FRP (Fiber Reinforced Polymer/Plastic) Cable Diameter 2.0*3.0mm Flat Drop Cable
High Light

fiber optic patch cable

,

fiber optic jumper
Leave a Message
Product Description

FTTH Figure 8 Flat Drop Cable Fiber Optical Patch Cord SC Connector 200M Black 2.0*3.0mm





Quick Details of FTTH patch cord

  • Flat drop cable 2.0*3.0mm
  • Fiber type: single mode G657A1 lszh 1core
  • Connectors: SC LC FC ST all can be added
  • length can be customized



2.0*3.0mm FTTH access network fiber optic drop cable for indoor wiring is to put fiber optic unit in the center, on both sides are two parallel nonmetallic reinforcing elements FRP or metallic strength member, finally extrusion black or color polyvinyl chloride PVC or low smoke halogen free flame retardant LSZH sheath.





FTTH drop cable SC Patch cord Features

  1. Special high bending radius optical fiber, provides wider bandwidth, enhance the network transmission
  2. performance;
  3. Two parallel FRP or metallic strength member so that the cable has good compression performance,
  4.  protect the fiber;
  5. Simple structure, light weight, strong practicability;
  6. The unique groove design, easy to peel, convenient connection, simple installation and maintenance;
  7. Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath,
  8.  environmental protection.
  9. Can be matched with a plurality of field connector, can be terminated at site.
  10. Due to its soft and light, it is widely used in access network; so it is also called indoor access
  11. network butterfly cable, and due to its shape called butterfly optical cable, figure 8 cable.

SC-SC Patch Cord Technical Specification

Item SC FC ST LC drop cable PATCH CORD
IL(dB) ≤0.2 Max IL(dB) ≤0.3
Working temperature(°C) -40~+80 Temperature cycle(°C) -40~+75
Storage temperature(°C) -40~+85 Interchangeability (dB) ≤0.2
Plug times 1000 times Repeat ability(dB) ≤0.1
RL (dB) ≥45 ≥50 ≥60 Immersion

Temperature 43°C,

PH5.5 for 7days





SC Fiber Optic Patch Cord Application

  • Used as access building cable
  • Used in indoor cabling especially used for FTTH



Fiber Patch Cord Implementation standards

  • YD/T1997-2009 access network butterfly optical drop cable



Delivery Length:

1-300METERS / PACK

FTTH Figure 8 Flat Drop Cable Fiber Optical Patch Cord SC Connector 200M Black 2.0*3.0mm 0FTTH Figure 8 Flat Drop Cable Fiber Optical Patch Cord SC Connector 200M Black 2.0*3.0mm 1

Order information

FHPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7

FHPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...
