SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH

Basic Information
Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO,SGS,ROHS
Model Number: FHPC-SCA-01-F8F-A1W
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1 piece / bag
Contact Now
Detail Information
Application: FTTH Indoor Wiring Connector: SC/APC
Fiber Count: 1core Fiber Type: G657A1 Or G657A2
Cable Sheath: LSZH Cable Length: 1meter Or On Customized
Cable Color: White Insertion Loss: <0.3dB
Cable Strength Member: FRP (Fiber Reinforced Polymer/Plastic) Drop Cable Diameter: 2*3.0mm

Product Description



SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH



The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP

are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath.



Application


Used as access building cable
Used in indoor cabling especially used for FTTH





Implementation standards



YD/T1997-2009 access network butterfly optical drop cable



Specification



Item

SC FC ST LC drop cable PATCH CORD

IL(dB)

≤0.2

Max IL(dB)

≤0.3

Working temperature(°C)

-40~+80

Temperature cycle(°C)

-40~+75

Storage temperature(°C)

-40~+85

Interchangeability (dB)

≤0.2

Plug times

1000 times

Repeat ability(dB)

≤0.1

RL (dB)

≥45 ≥50 ≥60

Immersion

Temperature 43°C,

PH5.5 for 7days



Delivery Length:



1-300METERS / PACK



Order information



FHPC-XXX-XX-XXX-XXX

        1 - 2  - 3 4 - 5 6



FHPC

Connector

type



Fiber

 count

Cable type

Strength

member

Fiber type

Cable

color

FH=ftth

1

2

3

4

5

6

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow



FTTH Patch Cord can connect with all kinds of fiber optic connectors, like SC FC ST LC...

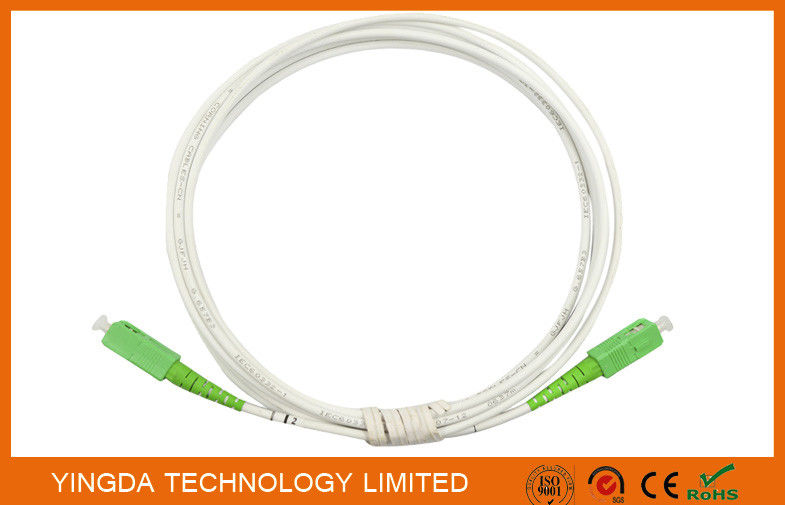

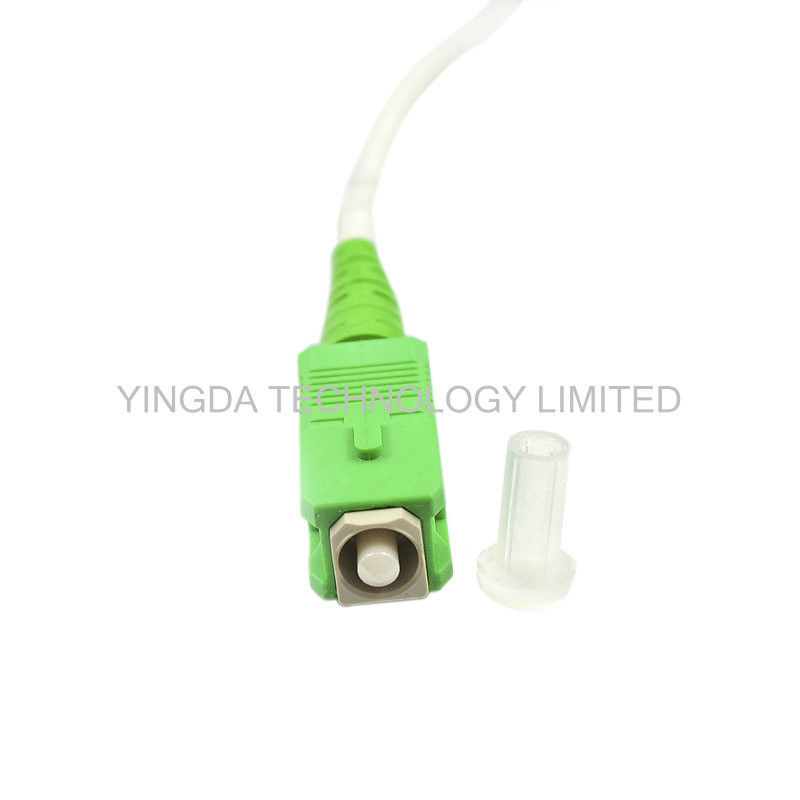

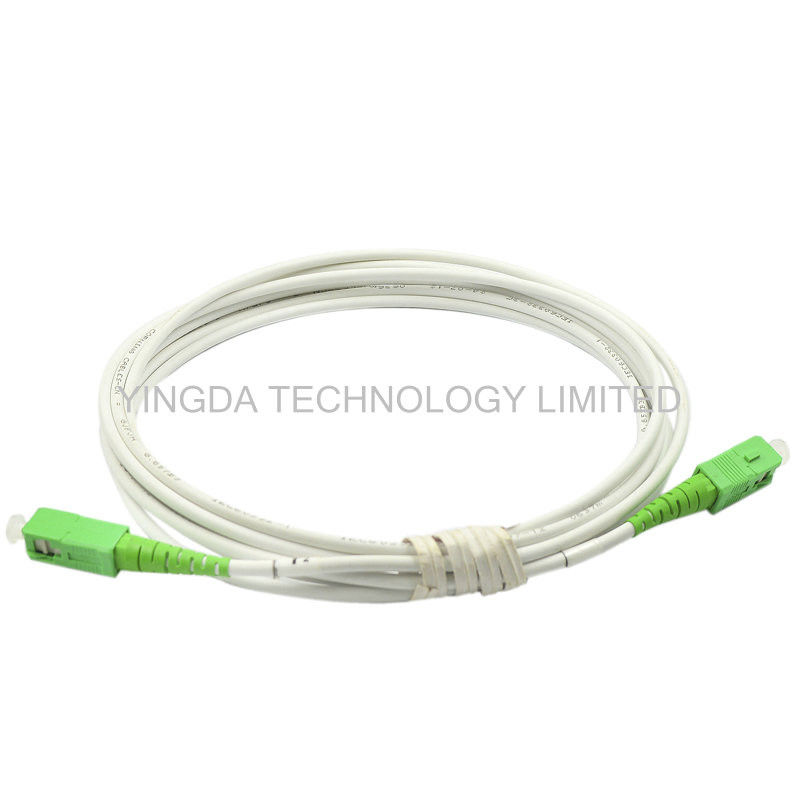

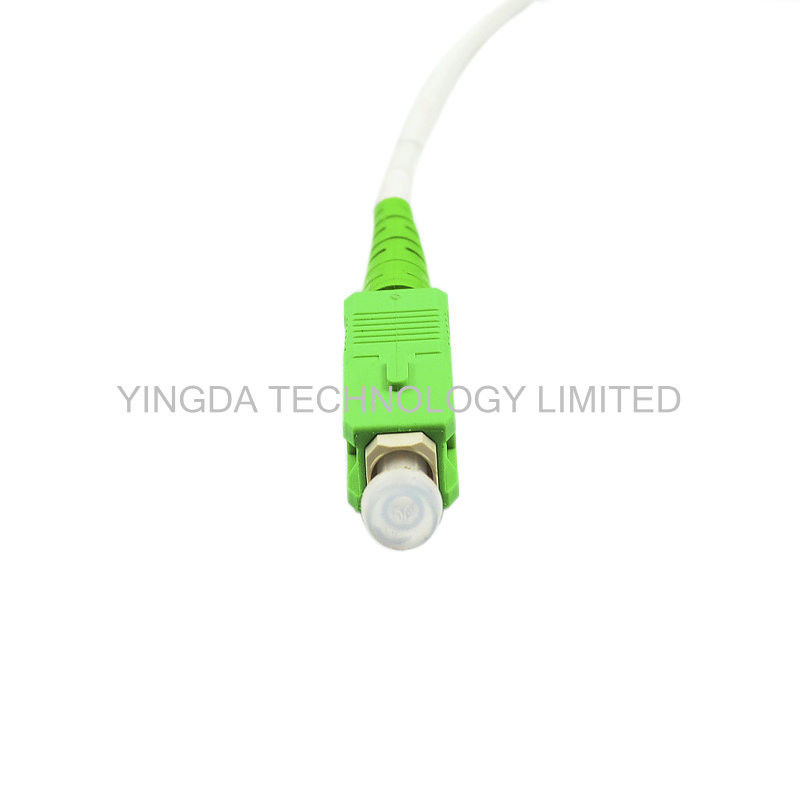

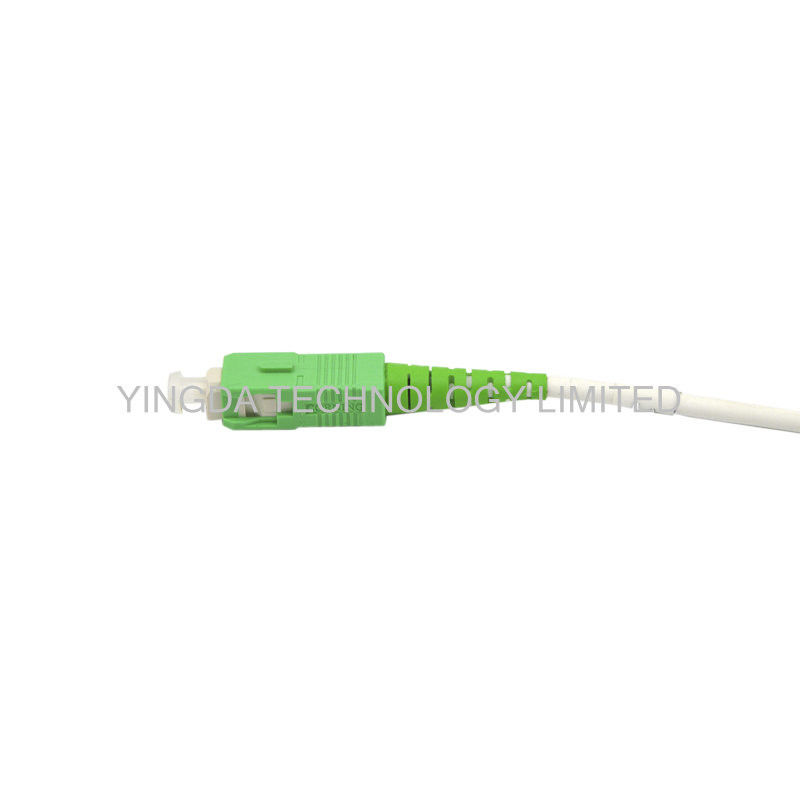

below some photo for reference:



SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH

SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH



FTTH drop cable can do in two colors: BLACK / White.

If no special advice, will do BLACK COLOR. SC / APC - SC / APC Indoor Fiber Optic Patch Cord GJXFH G657A2 LSZH
