DLC 4 Core Fiber Optic Cable Assembly Outdoor Waterproof FTTA Base Sation

Basic Information
Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO SGS CE ROHS
Model Number: LC / LC
Minimum Order Quantity: 10pcs
Price: NEGOTIABLE
Packaging Details: 1pc/pack
Contact Now
Detail Information
Application: FTTA Outoor Waterproof Cable: Base Station Cable 7.0mm GYFJH
Cable Jacket: Black LSZH Connector: LC/UPC
Fiber Count: 4 Fibers Length: On Customer Request
Logo: OEM

Product Description



DLC 4 Core Fiber Optic Cable Assembly Outdoor Waterproof FTTA Base Sation





1. GYFJH Cable



DLC 4 Core Fiber Optic Cable Assembly Outdoor Waterproof FTTA Base Sation



1.1 Structure:

DLC 4 Core Fiber Optic Cable Assembly Outdoor Waterproof FTTA Base Sation





1.2 Application



Mainly used in wireless base station horizontal and vertical cabling



1.3 Features



1, Good mechanical and environmental characteristics;

2, Flame retardant characteristics meet the requirements of relevant standards;

3, The mechanical characteristics of jacket meet the requirements of relevant standards;

4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data

transmission;

5, Meet various requirements of market and clients



1.4 Cable Parameters



Fiber

count

Cable

dimension

Tensile/N

Crush N/100mm

Min. Bend

radius/mm

Range of

temperature/°C

Mm

Long

term

Short

term

Long

term

Short

term

Dynamic

Static

4

7

200

400

1100

2200

20D

10D

-20~+60



1.5 Connector Specification



Item

Parameter

Connector

DLC/UPC

Insertion loss

≤0.3dB

Return loss

≥35dB

Fiber mode

Multi-mode,50/125um

Operating wavelength

850nm,1310nm

Test wavelength

850nm,1310nm

Repeat ability

≤0.1dB

Interchange ability

≤0.2dB

Durability

≤0.2dB

Fiber length

1m,2m.. Any length optional

Length and tolerance

10cm

Operating temperature

-40~+85°C

Storage temperature

-40~+85°C





DLC 4core Optical cable assembly

Optical cable assembly, DLC/DLC, GYFJH, 4Core. Outdoor Protected Branch Cable More photos:

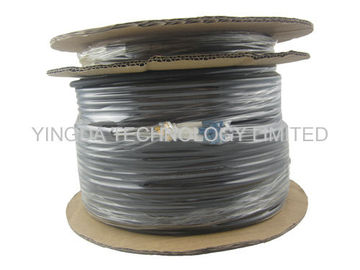

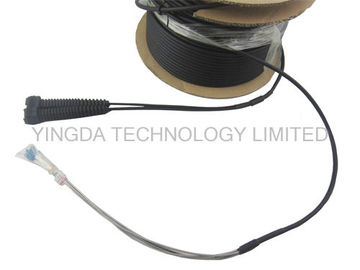

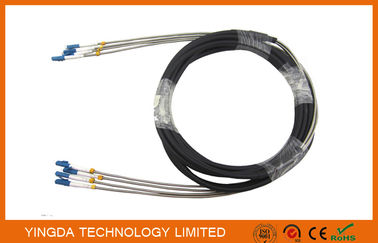

DLC 4 Core Fiber Optic Cable Assembly Outdoor Waterproof FTTA Base SationDLC 4 Core Fiber Optic Cable Assembly Outdoor Waterproof FTTA Base SationDLC 4 Core Fiber Optic Cable Assembly Outdoor Waterproof FTTA Base Sation
