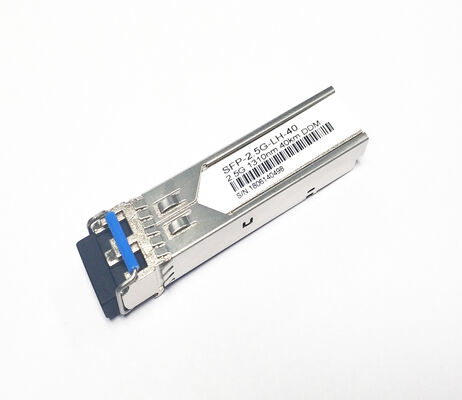

2.5G BiDi SFP 1310nm 40KM SingleMode Dual Fiber LC SMF Transceiver Module SFP-2.5G-LH-40

Name: 2.5G BiDi SFP 1310nm 40KM SingleMode Dual Fiber LC SMF Transceiver Module SFP-2.5G-LH-40
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDSP24-3140
Price: 5.60 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	YDSP24-3140
MOQ:	10pcs
Price:	3.6usd-8usd
Delivery Time:	5-7 working days
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Model Number:

2.5G Single Mode SFP 40KM

Type:

Fiber Optic Transceivers

Use:

1.25Gbps Optical Systems

Application:

Ethernet/Telecom/Fiber Channel

Max Cable Distance:

0-40KM

Data Rate:

2.5G

Supply Voltage:

3.3V

Power Dissipation:

Highlight:

SFP Transceiver Module 1310nm

2.5G BiDi SFP Module

BiDi SFP 1310nm

Product Description

2.5G BiDi SFP 1310nm 40KM SingleMode Dual Fiber LC SMF Transceiver Module SFP-2.5G-LH-40

The SFP transceivers are high performance, cost effective modules supporting data-rate of 2.5Gbps and 40km transmission distance with SMF.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA and SFF-8472.

Feature:

 Up to 2.5Gbps data links

 1310nm DFB Laser and PIN photo-detector

 Up to 40km on 9/125µm SMF

 Duplex LC receptacle optical interface compliant

 Hot pluggable

 All-metal housing for superior EMI performance

 RoHS6 compliant (lead free)

 Operating case temperature:

Commercial: -5ºC to +70ºC

Extended: -20ºC to +80ºC

Industrial: -40ºC to +85ºC

The SFP Module Full Form consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and control unit. All modules satisfy class I laser safety requirements. The gold-plated contacts on the surface of the gold fingers are thickened to enhance conductivity and allow for repeated insertion and removal. It can be used together with SC patch cords for termination connection.

Applications

 SONET OC-48/ SDH STM-16

 Fiber Channel

 Switch to Switch interface

 Switched backplane applications

 Router/Server interface

 Other optical transmission system

Module Block Diagram

Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section
Centre Wavelength	λc	1260	1310	1360	nm
Spectral Width (-20dB)	∆λ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power (avg.)	Pout	-2		3	dBm	1
Laser Off Power	Poff	-	-	-45	dBm
Extinction Ratio	ER	8.2	-	-	dB	2
Relative Intensity Noise	RIN	-	-	-128	dB/Hz	12dB reflection
Optical Rise/Fall Time	tr / tf		-	160	ps	3
Optical Return Loss Tolerance		-	-	12	dB
Output Optical Eye	Compliant with ITU-T G.957					2
Receiver Section
Receiver Center Wavelength	λc	1260		1620	nm
Receiver Sensitivity in Average Power	Sen	-22		0	dBm	4
Los Assert	LOSA	-35	-	-	dBm
Los Dessert	LOSD	-	-	-23	dBm
Los Hysteresis	LOSH	0.5	-	5	dB
Overload	Pin-max	-	-	0	dBm	4
Receiver Reflectance		-	-	-12	dB
Receiver Power (damage)		-	-	3	dBm

Mechanical Dimensions
