1X4 With 2mm Cable  Input Port LGX Type Fiber Optical Splitter Box With 0.5m Pigtail Length For Single Mode SM G657A Networks

The PLC Fiber Optical Splitter Box is a branching device used to distribute optical signals to multiple locations. In optical networks, it splits an optical signal into identical signals or combines multiple signals into one. Fabricated using silica optical waveguide technology, this device is essential for FTTx Passive Optical Networks, CWDM, DWDM, and optical cable TV systems.

YINGDA offers a variety of 1xN and 2xN PLC splitters in plug-in type. Their compact structure and small volume make them convenient for use in various places, such as 19-inch racks, cross-connect cabinets, and other devices. Our fiber splitters offer outstanding optical performance and reliability, meeting GR-1221-CORE and GR-1209-CORE specifications.

LGX Box Dimension:

Product details:

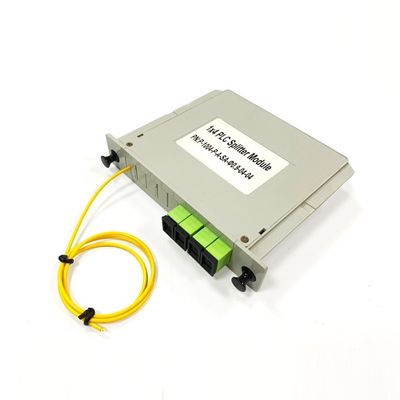

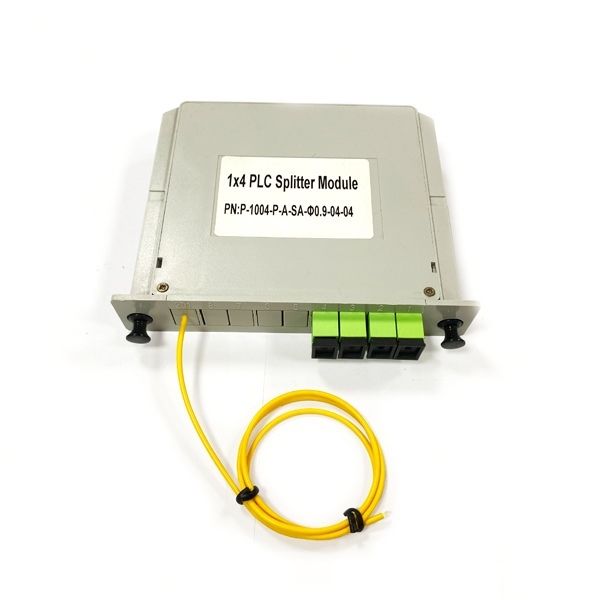

Box overview:

box size:130×100×50mm, small size, large capacity, can use maximum 2x32LC SC plc splitter with connectors lid and bottom is connected with 2screws on the top, we can make OEM logo on the label to make better marketing.

Integrated design

The LGX box type of PLC splitter integrates the light splitter, which greatly facilitates
the construction of the project and reduces the damage caused by the improper construction or storage of the conventional box splitter.

Details:

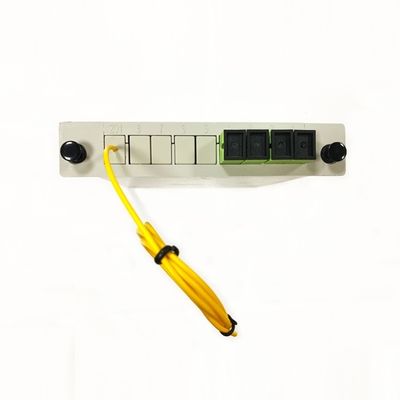

front adapter panel:  there is 123456... 16 and IN1 IN2 mark for better construction and fiber count. steel tube fix place is specially deisgn, with glue to make it more stable during transporation.enough fiber storage and wiring space, reasonable fiber bend radius.

Inlet and outlet port  with connector and cable, direct connecting to your device, no need aother adapter, save your cost and  reduce losses during connection.

Package:

suggest to use 1piece / cardboard box, but if u need cost effective, plastic bag will be ok, then about 10 or 20pcs will be in a small cardboard, it will be ok to protect the item in good condition.

welcome OEM or ODM.

Application:

CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband

Order information:

PLC-LGX-XXX/XXX

- 1 / 2

YINGDA 'S  PLC Splitter production line

1.Advanced production and testing equipment
