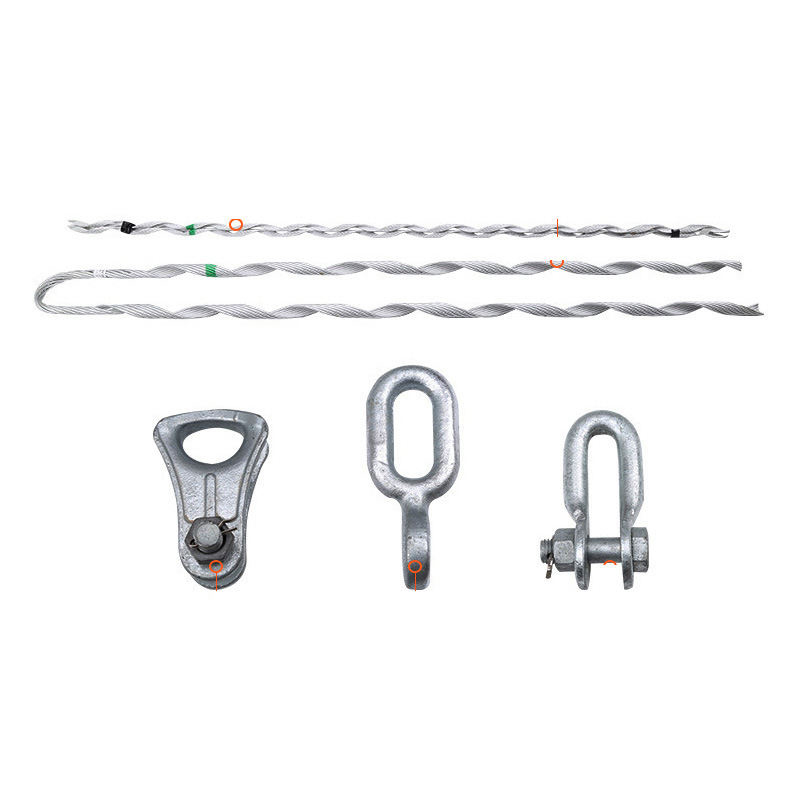

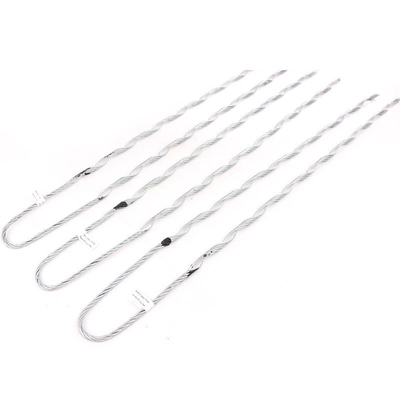

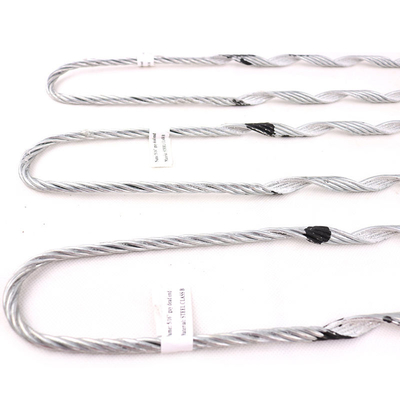

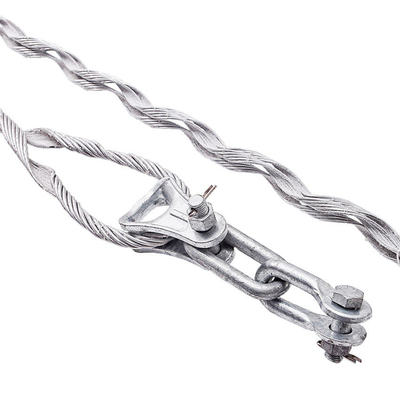

Preformed Dead End Grip 1/7" 3/16" 5/16" 3/8" Dead End Power Fitting for Adss Cable

Name: Preformed Dead End Grip 1/7" 3/16" 5/16" 3/8" Dead End Power Fitting for Adss Cable
Brand: YINGDA TECHNOLOGY LIMITED
SKU: preformed strain sets
Price: 0.90 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	preformed strain sets
MOQ:	100pcs
Price:	0.9USD-2.6USD
Delivery Time:	2-5days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Product Name:

Cable Dead End Grip

Application:

OPGW And ADSS Optical Cable

Material:

Galvanized Steel Or Aluminum Steel Wire

Surface:

Hot-dipped

Function:

Drop Wire Clamp

Color:

Silver

Supply Ability:

50000pcs per month

Product Description

Preformed Dead End Grip 1/7" 3/16" 5/16" 3/8" Dead End Power Fitting for Adss Cable

THE PREFORMED TENSION SET is widely used for the installation of bare conductors or overhead insulated conductors for transmission and distribution lines, the reliability and economic performance of the product is better than the bolt type and hydraulic type tension clamp that widely used in the current circuit.

Innovative structure and precision design, so that the preformed tension set has a reliable performance and it is usually made of aluminum clad steel, galvanized steel wire and other materials.

Features

High quality aluminum clad steel and galvanized steel Which improves themechanical properties and corrosion resistanceof wire clips.
The contact area of the optical fiber cable is increased so that the force distribytign is uniform and the stress concentration point is not concentrated.
The wire clip is simple to install and does not require any professionaltools It can be done independentlyby one person.It has good installationquality and convenient for inspection.

Preformed Dead End Grip 1/7" 3/16" 5/16" 3/8" Dead End Power Fitting for Adss Cable 0

Application

Preformed Dead End Grip 1/7" 3/16" 5/16" 3/8" Dead End Power Fitting for Adss Cable 1

Preformed Dead End Grip 1/7" 3/16" 5/16" 3/8" Dead End Power Fitting for Adss Cable 2

Specification

Type	Cable dIameter (mm)	Length of Dead end component (mm)
YD950	9.0-9.5	800
YD1050	9.6-10.5	850
YD1160	10.6-11.6	910
YD1280	11.7-12.8	960
YD1410	12.9-14.1	1080
YD1560	14.2-15.6	1160
YD1700	15.7-17.0	1160

Preformed strain sets workshop:

Preformed Dead End Grip 1/7" 3/16" 5/16" 3/8" Dead End Power Fitting for Adss Cable 3

Preformed Dead End Grip 1/7" 3/16" 5/16" 3/8" Dead End Power Fitting for Adss Cable 5
