Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Termination Box
Created with Pixso. 8 Ports O Plastic Fiber Optic Termination Box Mini Fusion Splice Closure With Splice Tray For FTTH Indoor
Name
  • Name
  • Name
  • Name
  • Name

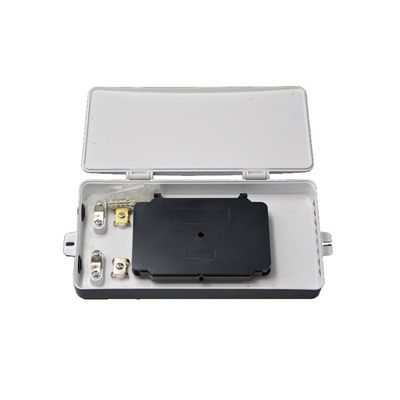

8 Ports O Plastic Fiber Optic Termination Box Mini Fusion Splice Closure With Splice Tray For FTTH Indoor

Brand Name: YINGDA
Model Number: FTB108C
MOQ: 100PCS
Price: 0.18USD-4.29USD
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Capacity:
24 Fibers Single Fusion
Cable Inport:
2 PCS
Dimension:
280x140x40mm
Input Cable Diameter:
10 Mm
Material:
High Strength Plastic PC
Color:
White
Application:
Fiber To The Home FTTH Or Indoor Use
Adapter:
Yes, Can Install Max 8pcs SC Adapter
Splice Tray:
1 Pcs, 24 Fibers
Packaging Details:
1 pc per box, 32 pcs per carton shipping box
Highlight:

8 Ports Fiber Optic Termination Box

,

Mini Fusion Splice Closure

,

FTTH Indoor Fiber Optic Termination Box

Product Description

8 Ports O Plastic Fiber Optic Termination Box Mini Fusion Splice Closure With Splice Tray For FTTH Indoor


8 Port plastic terminal box is indoor use only, mainly for distribution vertical cable from FTTH patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



Specification


Model

FTB108C

Dimension (W*D*H)

 280*140*40mm

Max.Capacity

24core (single fiber)

Cable ports

2 in, 8 out

Cable diameter

In:Φ10mm

SC adapter qty

8 SC simplex

Splice tray quantity

1 pc 24F tray

Color

White



Application

  • Suitable for jointing fiber pigtail
  • To protect fier optic splices and help to distribute
  • It is a wall mounting or desktop type
  • Mainly used in telecommunication equipment and network indoor and outdoor.



Features


 Box cover and bottom is hinge connected eacy to open and close.

Wall mounted with screws, kits with standard accessory bag

Bottom to bring the feeder cable into the box, top for cable distribution into 8 subscribers with sc port.

High strength plastic material, non toxic and dermatologist safe.

The box can use for a minimum period of 20 years.

Splice tray with 24 cores single fiber fusion splice with cover to protect.



Accesory list table

Name Unit Quantity Remark
Heat shrinkable protective sleeve Pc Configuration as per capacity
Nylon tie Pc Configuration as per capacity
Labeling paper Pc 1
Plastic shrinkable tube Pc 4
blots Pc 2
Manual Pc 1

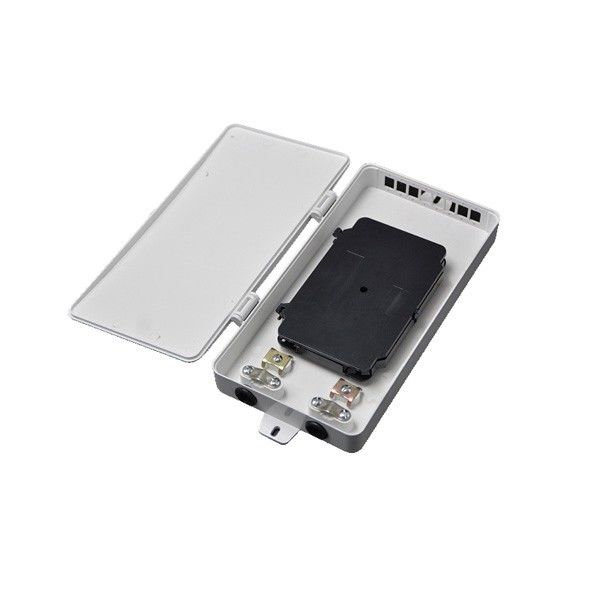

8 Ports O Plastic Fiber Optic Termination Box Mini Fusion Splice Closure With Splice Tray For FTTH Indoor 0 8 Ports O Plastic Fiber Optic Termination Box Mini Fusion Splice Closure With Splice Tray For FTTH Indoor 1


There are 2ports for cable entry, 8ports for SC simplex or LC duplex adapter. And with 1pc 24cores splice tray.

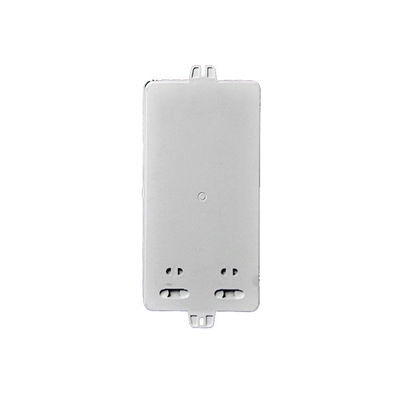

8 Ports O Plastic Fiber Optic Termination Box Mini Fusion Splice Closure With Splice Tray For FTTH Indoor 2 8 Ports O Plastic Fiber Optic Termination Box Mini Fusion Splice Closure With Splice Tray For FTTH Indoor 3

  Suitable for wall mounted installation, with 2pcs expansion screw
