Fiber Optic Termination Box
Created with Pixso. Fiber terminal box from to FTTH at home with villas to fix and FTB 108M splice with pigtails
Name
  • Name
  • Name
  • Name
  • Name
  • Name

Fiber terminal box from to FTTH at home with villas to fix and FTB 108M splice with pigtails

Brand Name: Yingda
Model Number: FDB104M
MOQ: 300 pcs
Price: 0.18USD-4.29USD
Delivery Time: 5-8days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO CE
Capacity:
Max. 24 Fibers
Fiber Counts:
1 Import And 3 Export
Adapter:
Max. 4 SC/LC
Holder:
8 Cores
Material:
ABS+PC
Protective Level:
IP45
Type:
Wall Mounted
Packing Quantity:
50
Width:
138mm
Packaging Details:
50 pcs per carton
Supply Ability:
100000/month
Highlight:

FTTH Fiber terminal box

,

home Fiber terminal box

,

Fiber terminal box with pigtails

Product Description

Fiber terminal box from to FTTH at home with villas to fix and FTB 108M splice with pigtails



Fiber terminal box description product

This product is used in the renovation of residential buildings and villas to fix and connect cables. It can be mounted on the wall and can be customised for different fibre optic connection patterns. with the Max. 4 adapters and the fusion splicer trays.

Fiber terminal box from to FTTH at home with villas to fix and FTB 108M splice with pigtails 0
Fiber terminal box from to FTTH at home with villas to fix and FTB 108M splice with pigtails 1

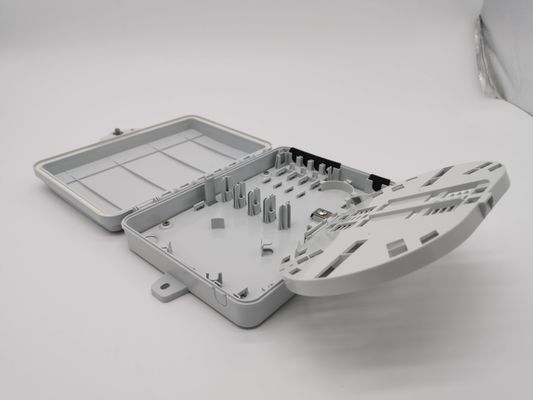

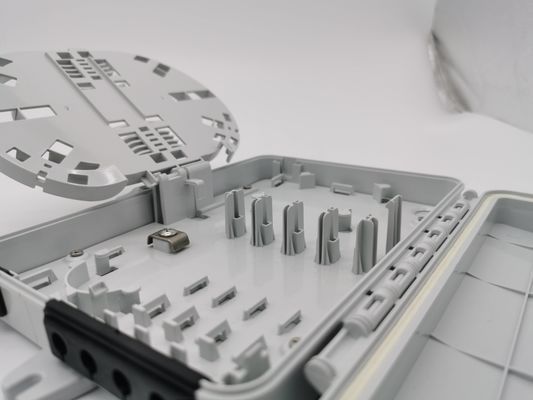

Left and right flap open terminal box, there is a key match, is our current fibre-to-the-home relatively small box, the fusion fibre disc on the subject of stacking two layers of steel

ABS indoor fiber optical box features

  1.  FTTH fiber terminal box indoor wall mount, home or work area
  2.  Embedded surface frame, easy to install and disassemble
  3.  Integrated with fiber optic cassette and cable management rods
  4.  Max. 4 SC/LC duplex adapter, 8cores fusion splice holder
  5.  High quality ABS+PC engineering plastic
  6.  Dust-proof, and ROHS proof with IP45 protection level
  7.  2cable entry for cable in and out without cutting
  8.  Laser mark, Logo print position reserved on the lid

 Fiber terminal box from to FTTH at home with villas to fix and FTB 108M splice with pigtails 2Fiber terminal box from to FTTH at home with villas to fix and FTB 108M splice with pigtails 3

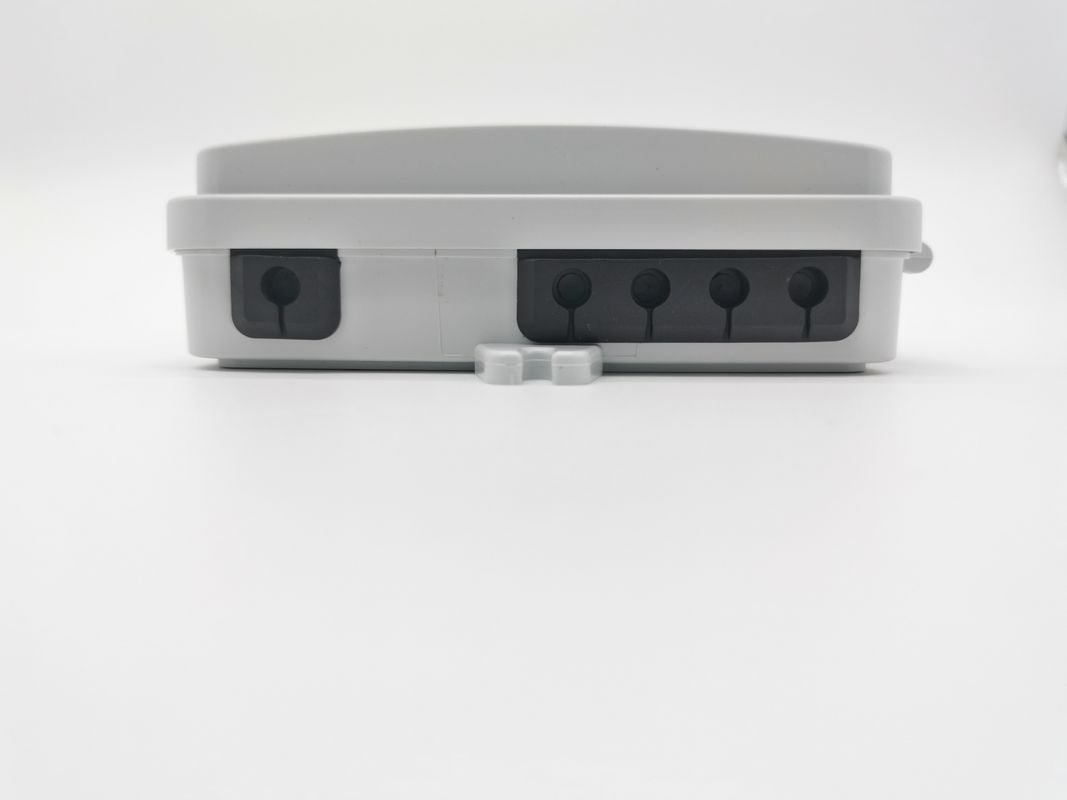

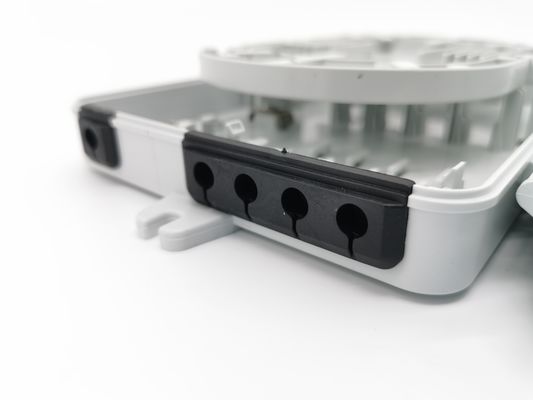

The black silicone sealing port, waterproof, and drop cables, etc. are tightly fastened, and the threads on the slot of the fusion fibre tray are tight, so the structure is very consistent with the fibre storage.


ABS white termination box specifition

Model FTB104M
Dimension (A*B*C) 190*55*41mm
Max.Capacity 4 core (single fiber)
Cable ports 2in(1cable gland, 1 rubber seal port), 4out
Cable diameter in:12 mm, out:2x5mm
Adapter 4 SC / LC duplex



Standard Accessory: key, mounting screws, sleeve, nylon tie, cable clamps,rubber seal
Mounting size (D): 205mm




Fiber terminal box from to FTTH at home with villas to fix and FTB 108M splice with pigtails 4

Fiber terminal box from to FTTH at home with villas to fix and FTB 108M splice with pigtails 5

Fiber white pc sc termination box package infdformation

Net weight Inner box Quantity / carton box Carton box size Gross weight/carton box
335.1g 208*138*45mm 50pcs 45*37*49cm 19.5kg
