Fiber Optic Termination Box
Created with Pixso. Fiber Optic Termination Box 4Cores With Large Space For Fiber Fusion Storage With DIN Rail PTO
Fiber Optic Termination Box 4Cores With Large Space For Fiber Fusion Storage With DIN Rail PTO
  • Name
  • Name
  • Name
  • Name
  • Name

Fiber Optic Termination Box 4Cores With Large Space For Fiber Fusion Storage With DIN Rail PTO

Brand Name: yingda
Model Number: FTB104D
MOQ: 200PCS
Price: 0.18USD-4.29USD
Delivery Time: 1week
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
ABS
Color:
White
Splitter Qty:
1pcs 1*4 Mini Splitter
Adapter Qty:
4pcs SC Simplex
Mechanical Splicer:
4 Pcs
Dimension:
110*81*29mm
Application:
Indoor Wall Mount, DIN Rail (45mm Distance)
Max.Capacity:
4 Core (single Fiber)
Cable Diameter:
2x5mm
Packaging Details:
1pc/box,200pcs/carton box
Highlight:

Large Space Fiber Optic Termination Box

,

Fiber Optic Termination Box 4Cores

,

DIN Rail Fiber Optic Termination Box

Product Description

FTB104D Fiber Optic Termination Box



The product is used in the end termination of residential building and villas to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles.



4 Port DIN Optical termination box can be use indoor wall mount or DIN rail, fusion splice max 4 cores single fiber. Wall outlet with cable storage drum for longer distribution application.

Optical termination box is widely used in the end termination of residential buildings and villas, to fix and splice with pigtails. It is large space for splicing, distribution and fiber storage, night weight, multi function, cheap cost.



Features:

  • FTTH indoor wall mount, home or work area
  • Embedded surface frame, easy to install and disassemble
  • Integrated with fiber cassette and large space for fiber fusion, storage and routing.
  • Suitable for 4pc SC/LC duplex adapter,4 sleeve slot
  • ABS+PC plastic, dust-proof,and ROHS proof, IP45 protection level
  • Top reserved space to print logo or model.
  • Laser mark on top to prevent eye hurt.
  • Din rail mount is available with back brackets.



Specification:



Model FTB104D
Dimension (A*B*C) 100.5*80.5*28.8mm
Max.Capacity 4 core (single fiber)
Cable ports 4 pcs
Cable diameter 2x5mm
Adapter 4 SC / LC duplex



Product pictures:

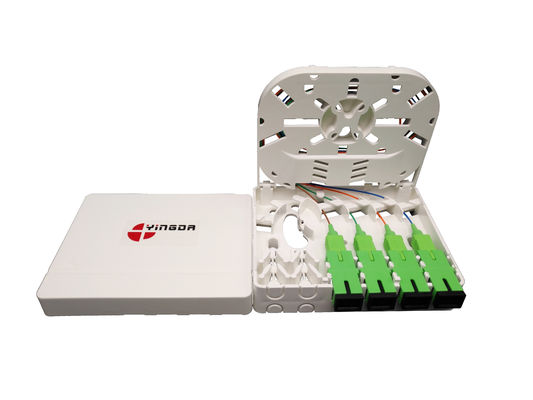

There are 4core for SC SX, big splice space, and can load with 1pc 1X4 mini PLC splitter.

Fiber Optic Termination Box 4Cores With Large Space For Fiber Fusion Storage With DIN Rail PTO 0Fiber Optic Termination Box 4Cores With Large Space For Fiber Fusion Storage With DIN Rail PTO 1

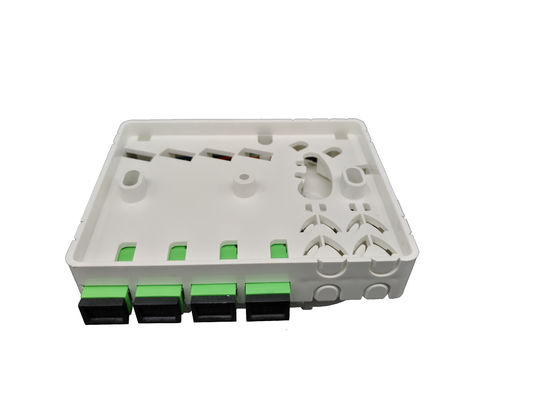

With the UT-King's PTO, installing the last drop cable and fiber optic outlet in a FTTx deployment isa very simple and fast process. The installer simply removes the spool-loaded cable from the carton and attaches the pre-terminated outlet to the wall.



Fiber Optic Termination Box 4Cores With Large Space For Fiber Fusion Storage With DIN Rail PTO 2Fiber Optic Termination Box 4Cores With Large Space For Fiber Fusion Storage With DIN Rail PTO 3

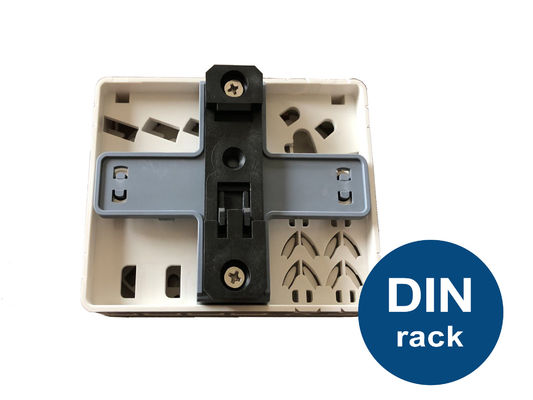

Installation for DIN Rail, wall mounted.



Fiber Optic Termination Box 4Cores With Large Space For Fiber Fusion Storage With DIN Rail PTO 4Fiber Optic Termination Box 4Cores With Large Space For Fiber Fusion Storage With DIN Rail PTO 5
