Indoor Fiber Optic Termination Box PTO 4Ports For Quick And Simple Installation Outer Kit PTO

Brand Name: yingda
Model Number: FTB104E
MOQ: 200PCS
Price: 0.18USD-4.29USD
Delivery Time: 1week
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
ABS
Color:
White/Grey
Capacity:
4 Cores SC, 8 Cores LC
Splitter Qty:
1pcs 1*4 Mini Splitter
Adapter Type:
SC Simplex, Shuttered
Outer Diameter:
4.0±0.2mm
Dimension:
83 X 100 X 30 Mm
OEM:
OK
Application:
Indoor Wall Mount, DIN Rail (45mm Distance)
Jacket:
LSZH, TPU
Packaging Details:
1pc/box,20pcs/carton box
Highlight:

Simple Installation Fiber Optic Termination Box

,

Quick Installation Fiber Optic Termination Box

,

4Ports Fiber Optic Termination Box

Product Description

Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports for Indoor DIN Rail



Pre-Terminated Outlet kit (PTO) is a product configured for speed and ease of installation in Fiber to the Home (FTTH) and Fiber to the Business (FTTB) deployments. The PTO consists of a low-profile fiber optic outlet box loaded with adapters and a pre-terminated length of cable, conveniently packaged with a cable spool inside a protective carton.With the UT-King's PTO, installing the last drop cable and fiber optic outlet in a FTTx deployment is a very simple and fast process. The installer simply removes the spool-loaded cable from the carton and attaches the pre-terminated outlet to the wall. The PTO outlet is mounted to the wall using screws, without opening the outlet and disturbing the fiber terminations inside. Alternatively, the PTO can be snapped onto a standard DIN rail.



PTO installation does not require any special tools or skills, and eliminates the need for terminationn or splicing in the outlet. The result is a decrease in the time, cost and failure rate of installations per customer.



Features:

  • SC or LC connectors and shutteredadaptors
  • Available in UPC and APC end face finish
  • Singlemode G657a2 fiber, others o request
  • Fast tool less installation
  • 4mm indoor LSZH cable, others on request
  • Factory terminated and 100% tested
  • Different cable lengths
  • 1, 2 or 4 fibers
  • Wide temperature range
  • RoHS compliant



Specification:



Technical data cable
Description Value
Fiber type G657A2
Fiber count 1, 2 or 4
Outer diameter 4.0±0.2mm
Buffered fiber 850±50μm, colour coded Red, Blue, Green, Yellow
Jacket LSZH, White
Tension resistance (Long term/ Short term) 100/ 200 N
Crush resistance (Long term/ Short term) 200/ 400 N/100mm
Minimum bend radius (Dynamic/ Static) 20D/ 5D
Operating and storage temperature -20~+60°C



Product pictures:

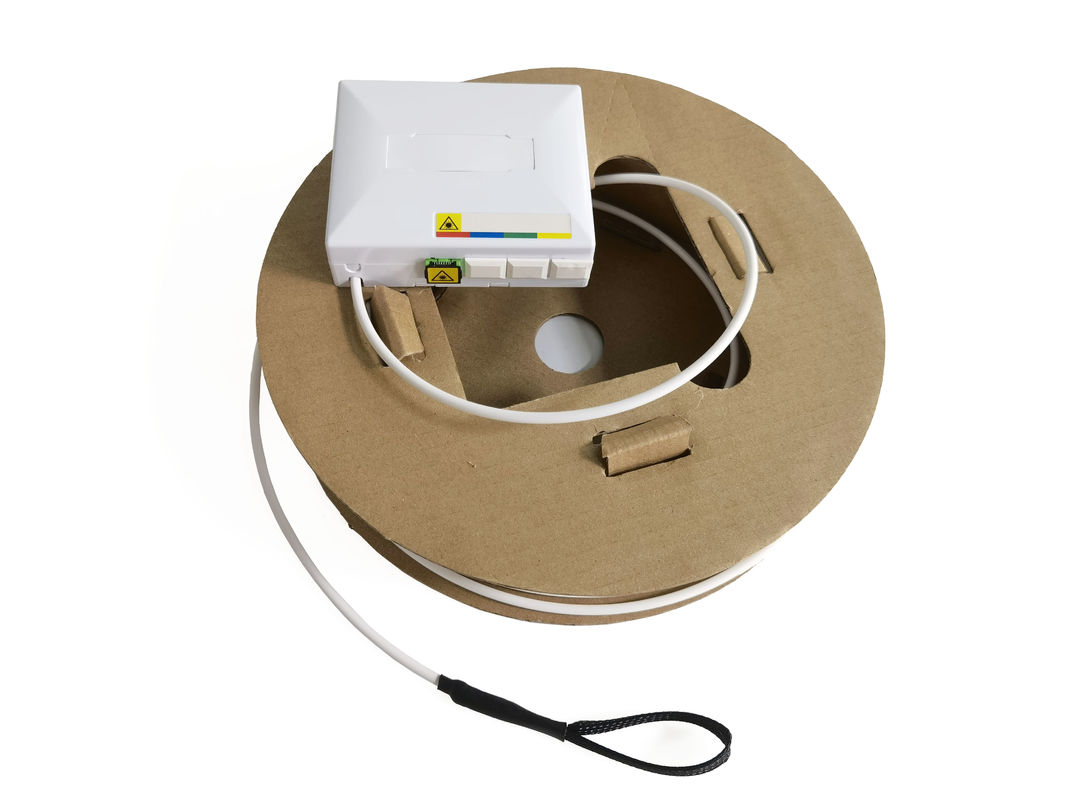

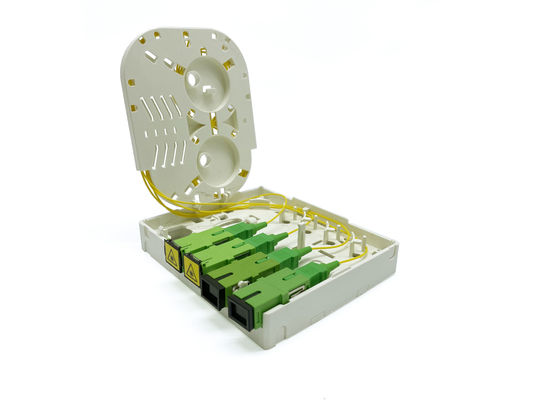

Optic Terminal box front, 4 SC adapter ports Fully load with 1*4 mini splitter+ 4pcs SC adapter

Indoor Fiber Optic Termination Box PTO 4Ports For Quick And Simple Installation Outer Kit PTO 0Indoor Fiber Optic Termination Box PTO 4Ports For Quick And Simple Installation Outer Kit PTO 1

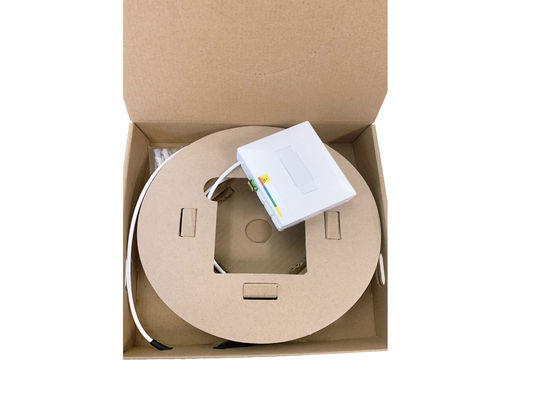

bottom side with uncut cable in and out tray with plc splitter fix place

Indoor Fiber Optic Termination Box PTO 4Ports For Quick And Simple Installation Outer Kit PTO 2Indoor Fiber Optic Termination Box PTO 4Ports For Quick And Simple Installation Outer Kit PTO 3

With the UT-King's PTO, installing the last drop cable and fiber optic outlet in a FTTx deployment isa very simple and fast process. The installer simply removes the spool-loaded cable from the carton and attaches the pre-terminated outlet to the wall.

Indoor Fiber Optic Termination Box PTO 4Ports For Quick And Simple Installation Outer Kit PTO 4Indoor Fiber Optic Termination Box PTO 4Ports For Quick And Simple Installation Outer Kit PTO 5



Indoor Fiber Optic Termination Box PTO 4Ports For Quick And Simple Installation Outer Kit PTO 6Indoor Fiber Optic Termination Box PTO 4Ports For Quick And Simple Installation Outer Kit PTO 7
