24 Ports SC Outdoor Wall or Pole Mount Fiber Optic Termination Box IP65 White for Cable Management in Outdoor Settings

Name: 24 Ports SC Outdoor Wall or Pole Mount Fiber Optic Termination Box IP65 White for Cable Management in Outdoor Settings
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FDB0224W
Price: 2.18 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FDB0224W
MOQ:	1pc
Price:	0.18USD-4.29USD
Delivery Time:	5-8days
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO CE

Material:

ABS

Color:

White, Black

Cable Port:

2 Cable Glands, 2 Uncut Port, And 24port Drop Cable

Lock:

Screw Rod+2 Buckles

Packaging Details:

1pc/box, 10pc/master box

Supply Ability:

10000pcs/month

Highlight:

Outdoor Wall Fiber Optic Termination Box

IP65 Fiber Optic Termination Box

24 Ports Fiber Optic Termination Box

Product Description

FDB0224W is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

FDB0224W Fiber Distribution Box Features

Total enclosed with key and 2*buckles, square shape, light weight, compact size;
High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
Cable, pigtails are running through own path without disturbing each other;
Distribution panel can be flipped up, 1X8,1x16 micro splitter with 24 SC adapter or pigtails are available;
Fusion plate can be maximum 24cores splicing, large area for routing and storage;
Feeder cable can be placed by expression port, easy for maintenance and installation;
Outdoor Wall mount or pole mount, IP65 protection class
Laser mark and logo print reserved on the lid

FDB0224W Fiber Distribution Box Specification

Model	FDB0224W
Dimension (ABC)	27417582mm
Max.Capacity	24 cores (single fiber)
Cable ports	1mid span, 2cable glands, 24out
Cable diameter	1mid span(Φ14.5mm), 2cable gland(Φ7-12mm), 24: drop cable 2*3mm or <4.5mm round cable
Splitter quantity	1X8 1X16 mini spiltter
Adapter quantity	24SC
Color	Grey / black

FDB0224W Fiber Distribution Box Standard Accessory: metal sheet +screws, key, nylon tie, cable clamps, sleeve,buffer tube

24 Ports SC Outdoor Wall or Pole Mount Fiber Optic Termination Box IP65 White for Cable Management in Outdoor Settings 0

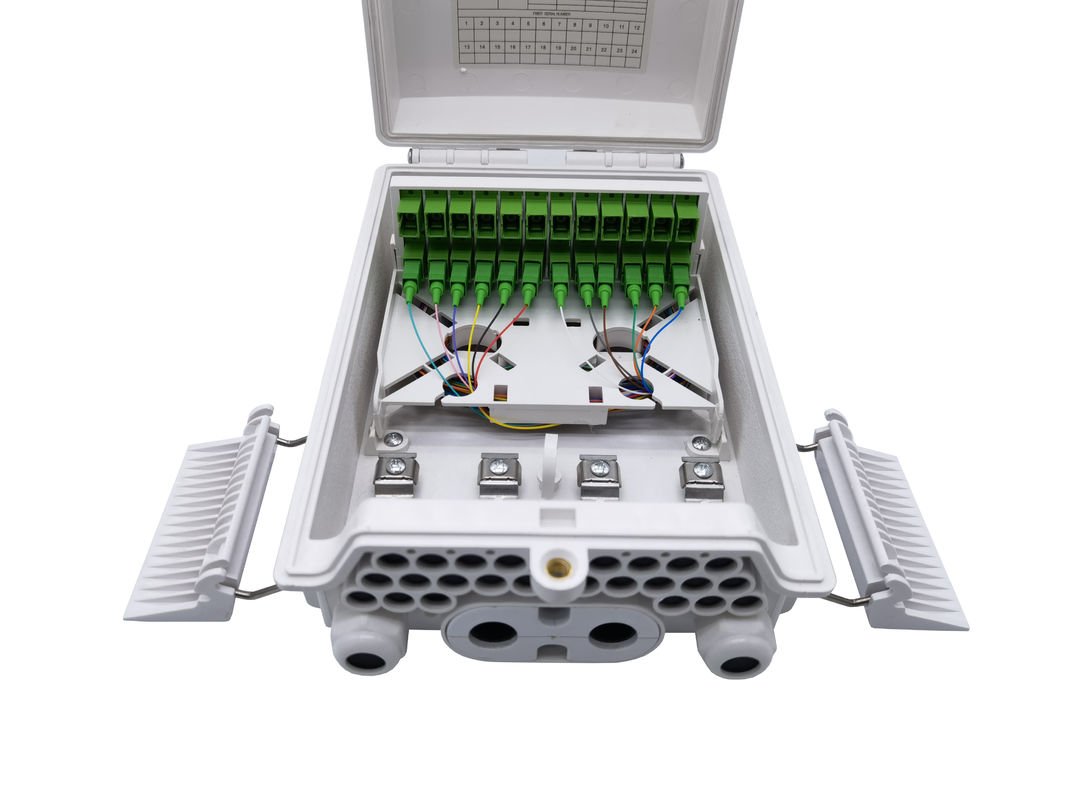

There are 24pc SC simplex adapter plates it can hold 24 sc adapters with flange, connected with 24 pcs Pigtails or ftth drop cable with fast connectors

24 Ports SC Outdoor Wall or Pole Mount Fiber Optic Termination Box IP65 White for Cable Management in Outdoor Settings 1

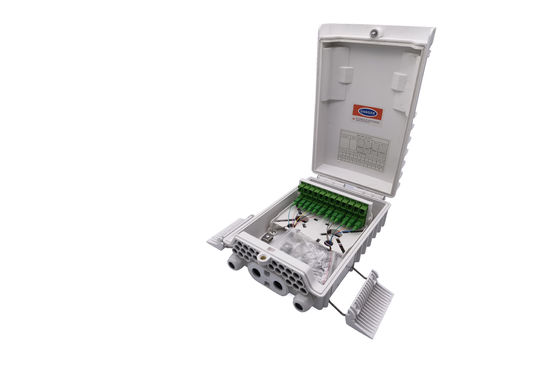

At back of the tray, there is fusion splice and winding area for surplus fiber optic cables, it can hold max. 24 cores single fiber.

24 Ports SC Outdoor Wall or Pole Mount Fiber Optic Termination Box IP65 White for Cable Management in Outdoor Settings 2

At the box bottom, there are cable winding fixtures around, and all items are fix on the box with screws, it is easy to do fiber management.

24 Ports SC Outdoor Wall or Pole Mount Fiber Optic Termination Box IP65 White for Cable Management in Outdoor Settings 3

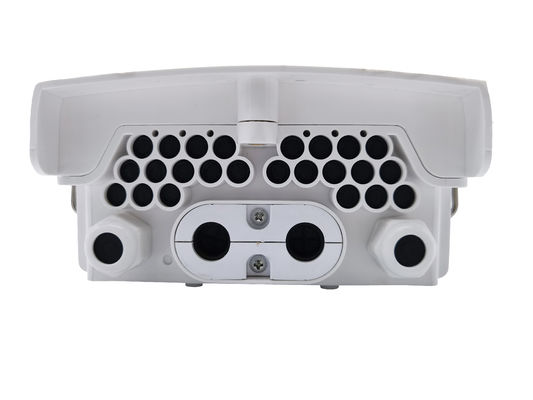

All cable inlets configure with metal cable fixtures and sealing kits,and cable outlets are with rubber seals with flat holes for 2x5mm drop cable, it is good choice for large capacity fiber distribution, splitting, splicing.
