Rotating Tray Design FDB0208C Fiber Optic Termination Box with 8 SC Adapters and Anti-UV and Rainproof Features

MOQ: 1000
Price: 0.18USD-4.29USD
Standard Packaging: 10 pcs per carton, 58*33*51 cm , about 14 kg
Delivery Period: 5-10days
Payment Method: T/T, D/A, D/P,Western Union, MoneyGram
Supply Capacity: 100000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Shenzhen，China
Brand Name
Yingda
Certification
ISO CE
Model Number
FDB0208C
Application:
Indoor/outdoor FTTH
Splitter Qty:
2pcs 1x8 Steel Tube Splitter
Fiber Ports:
6/12 Ports
Color:
White/black
Colorful Logo:
Support
Feeder Cable Ports:
2
Usage:
Outdoor
Packing:
20pcs/box
Outport:
Adapter Port Or Drop Cable
Input Port:
2
Input Type:
Fiber Cable，8 Ports
Accessories:
Mounting Screws, Cable Ties, Heat Shrinkable Sleeves
Highlight:

Anti-UV Fiber Optic Termination Box

,

Rainproof Fiber Optic Termination Box

Product Description

Product Description

FDB0208C is a new generation of fiber-to-the-home product, used to connect feeder optical cable or distribution optical cable to user's home optical cable through PLC splitter in FTTX network.

Product details

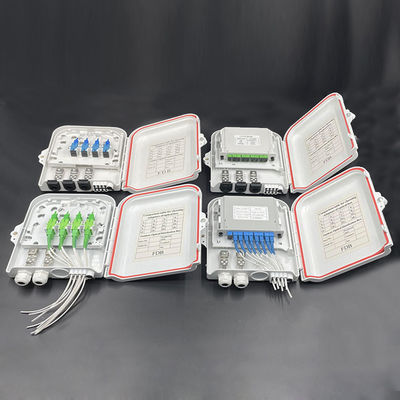

Rotating Tray Design FDB0208C Fiber Optic Termination Box with 8 SC Adapters and Anti-UV and Rainproof Features 0Rotating Tray Design FDB0208C Fiber Optic Termination Box with 8 SC Adapters and Anti-UV and Rainproof Features 1



Feature

1. Made of high-quality ABS+PC plastic, all metal parts are stainless steel, with laser marking on the lid
2. Rotating tray with 8SC adapter panel or LGX module slot
3. Bottom with winding parts and sleeve protection bracket for cable entry and distribution.
4. All ports are rubber sealed, and the entire box cover is with waterproof ring
5. FTTH outdoor wall-mounted, pole-mounted applications
6. Anti-UV, anti-UV and rainproof, excellent sealing performance, reusable, protection level is IP65
7. The box can be used for at least 20 years.

Specification

Model FDB0208C-a FDB0208C-b
Dimension (W*D*H) 240*195*66mm
Max.Capacity 8 core (single fiber)
Cable ports 2 cable glands or 3uncut rubber ports, 8pcs drop cable ports
Cable diameter In:Φ7-12m; out:2*3mm In:Φ14m; out:2*3mm
Plc Splitter quantity 1x8 steel tube splitter 1x8 LGX module splitter
Adapter quantity 8 SC adapter with flange --
Color White/black
Material ABS
Mounting way Wall mount/pole mount

Product Package

Standard Accessory: expansion screw, key, cable clamp and fixture, sleeve, nylon tie
Mounting size: 80/120/23mm

Rotating Tray Design FDB0208C Fiber Optic Termination Box with 8 SC Adapters and Anti-UV and Rainproof Features 2Rotating Tray Design FDB0208C Fiber Optic Termination Box with 8 SC Adapters and Anti-UV and Rainproof Features 3
