Fiber Optic Termination Box 1:3 Unbalanced PLC Splitter Technology For Consistent Optical Signal Distribution
  • name
  • name
  • name
  • name
  • name

Fiber Optic Termination Box 1:3 Unbalanced PLC Splitter Technology For Consistent Optical Signal Distribution

MOQ: 1000
Price: 0.18USD-4.29USD
Standard Packaging: 10 pcs per carton, 58*33*51 cm , about 5 kg
Delivery Period: 7-10days
Payment Method: T/T, D/A, D/P,Western Union, MoneyGram
Supply Capacity: 100000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Shenzhen，China
Brand Name
Yingda
Certification
ISO CE
Model Number
PLC splitter
Highlight:

PLC Splitter Fiber Optic Termination Box

,

ftth fiber optic termination box

Product Description

Description

Planar optical circuit (PLC) splitters are optical power management devices manufactured using silicon optical waveguide technology which are used to distribute optical signals from a central office (CO) to multiple site locations. Inda's full array PLC splitter has the characteristics of small size, high reliability, wide operating wavelength range and good channel consistency.

Feature

• Low insertion loss and high return loss

• PDL automatic screening system(Ultra low PDL is available)

• High reliability and stability

• Connector can up to grade B

• 100% 3D tested by Daisi and Sumix

• High-low temperature cycle test

• 100% test before delivery

• FTTH Cabling solution could be design

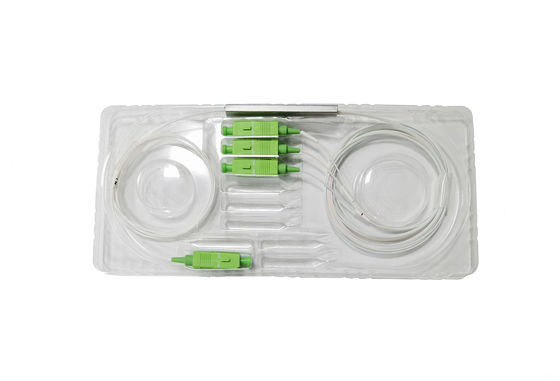

Fiber Optic Termination Box 1:3 Unbalanced PLC Splitter Technology For Consistent Optical Signal Distribution 0

product details

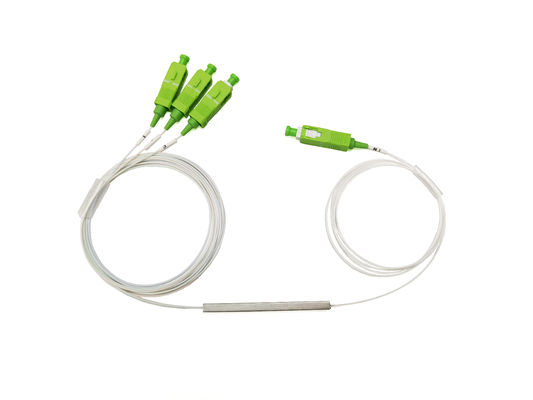

Fiber Optic Termination Box 1:3 Unbalanced PLC Splitter Technology For Consistent Optical Signal Distribution 1

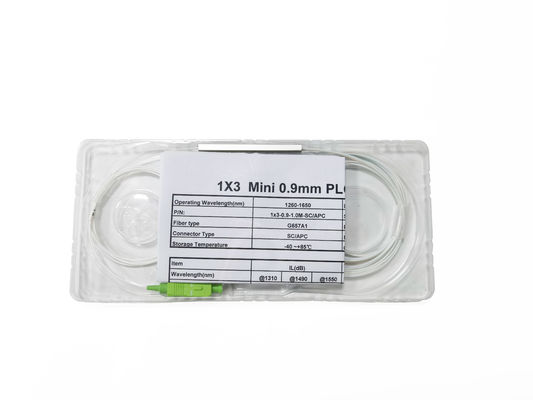

Fiber Optic Termination Box 1:3 Unbalanced PLC Splitter Technology For Consistent Optical Signal Distribution 2

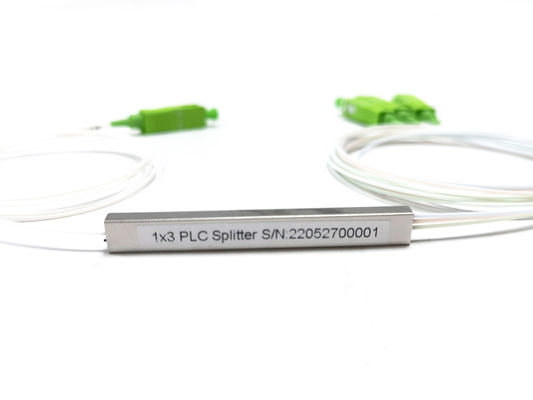

Fiber Optic Termination Box 1:3 Unbalanced PLC Splitter Technology For Consistent Optical Signal Distribution 3



1*3 PLC splitter spcification

Split ratio (%) 80/20 70/30 60/40 40/60
Operating wavelength (nm) 1260-1650
Fiber type G657A or customized
IL max(dB) channel 1 1.8 2.2 2.6 4.6
channel 2-3 11.5 9.6 8.3 6.3
IL uni(dB) Channel 2-3 1.8 1.8 1.8 1.8
Return loss (dB) ≥55
Directivity (dB) ≥55
PDL (max.) 0.3 0.3 0.3 0.3
Uniformity (max.) 0.8 0.8 0.8 0.8
Wavelength dependent loss (dB) ≤0.3
TDL (max.) 0.5
Operating temperature -40 ~+85
Storage temperature -40 ~+85
Dimension (mm) / LXWXH Bare fiber 60x7x4 60x7x4 60x7x4 60x7x4
900um 60x7x4 60x7x4 60x7x4 60x7x4
ABS box 120x80x18 120x80x18 120x80x18 120x80x18

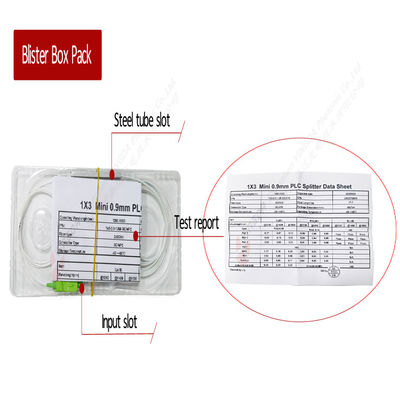

package



10 pieces per bundle, one box can hold 1000 pieces, about 100 bundles
