Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Termination Box
Created with Pixso. Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports For Indoor DIN Rail
Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports For Indoor DIN Rail

Brand Name: yingda
Model Number: FTB104E
MOQ: 200PCS
Price: 0.18USD-4.29USD
Delivery Time: 1week
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
ABS
Color:
Beige
Capacity:
4 Cores SC, 8 Cores LC
Splitter Qty:
1pcs 1*4 Mini Splitter
Adapter Qty:
4pcs SC Simplex
Mechanical Splicer:
4 Pcs
Dimension:
100*84*28mm
OEM:
OK
Application:
Indoor Wall Mount, DIN Rail (45mm Distance)
Packaging Details:
1pc/box,20pcs/carton box
Highlight:

Fiber Optic Pre-Terminated Outlet Kit

,

PTO 4Ports Pre-Terminated Outlet Kit

Product Description

Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports for Indoor DIN Rail



YINGDA product all kinds of fiber optic terminal box, splitter distribution box, socket panel and etc in plastic or metal materials, no matter indoor or outdoor use. Welcome inquiry.



This fibre termination unit (Rosette optic) is designed to terminated in residential and business building side for the FTTH access network. It enable the installation of either a single Blown Fibre Tube Cable with up to a 4 fibre or up to 4 fibre ruggedised cables to be spliced with 4 SC pigtails.

The unit can be quickly installed within an office, house or communication room environment. It is the last passive interface before the converter. It has a cover with 2 holes to fix the box on DIN rail, or 2 screws to fix on wall.



Features:

High strength plastic material PC+ABS

Indoor wall mount or DIN rail mount, IP45

Front, left or right cable entry is available

4 SC adapter port for fiber access termination with drop cable

Easy wiring and management with a detachable splice tray

Color identification for multi-fiber application



Specification:



Model FTB104E
Dimension 100*84*28mm
Capacity 4 cores
Cable type 2*3.0mm drop cable or indoor cable
Output color Red, blue, green,yellow
Adapter qty 4SC/LC duplex
Net weight 91.8g
Colour white
Application Indoor wall mount, DIN rail (45mm distance)
Accessory 4pcs sleeve L:40mm, 2pcs expansion screw



Product pictures:

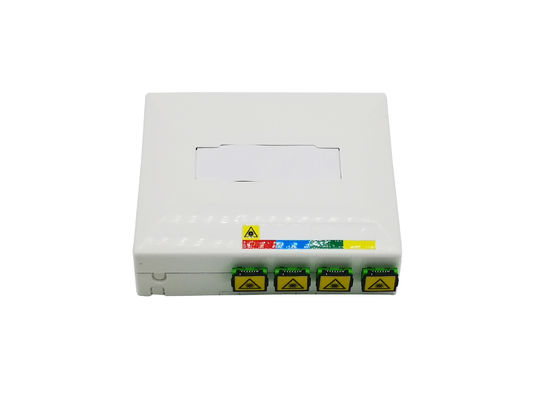

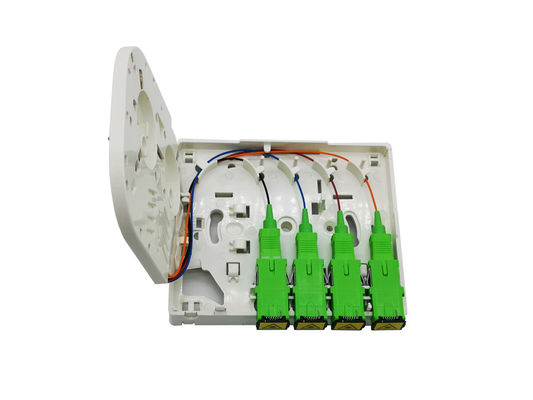

Optic Terminal box front, 4 SC adapter ports Fully load with 1*4 mini splitter+ 4pcs SC adapter

Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports For Indoor DIN Rail 0Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports For Indoor DIN Rail 1

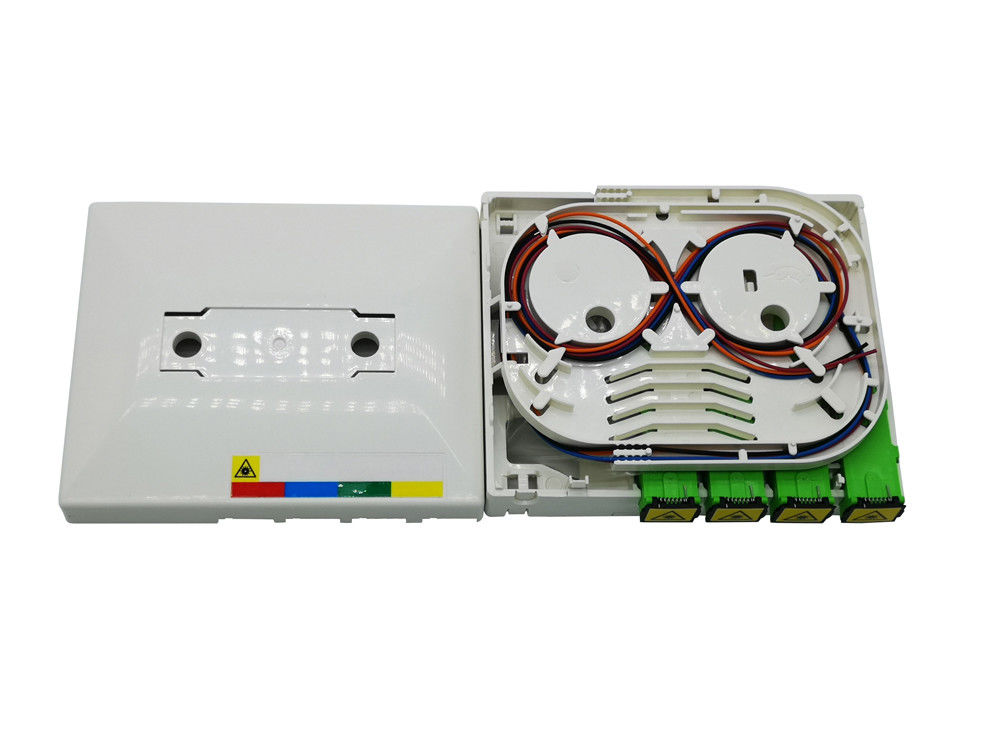

bottom side with uncut cable in and out tray with plc splitter fix place

Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports For Indoor DIN Rail 2Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports For Indoor DIN Rail 3

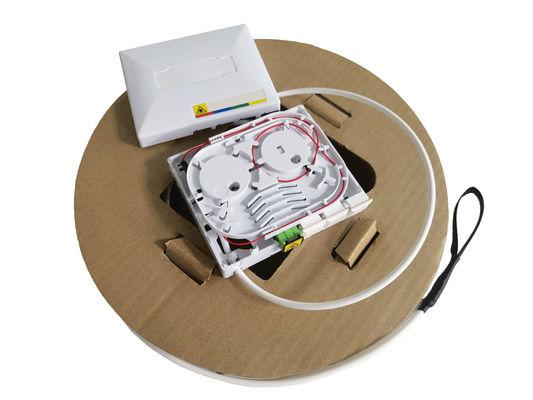

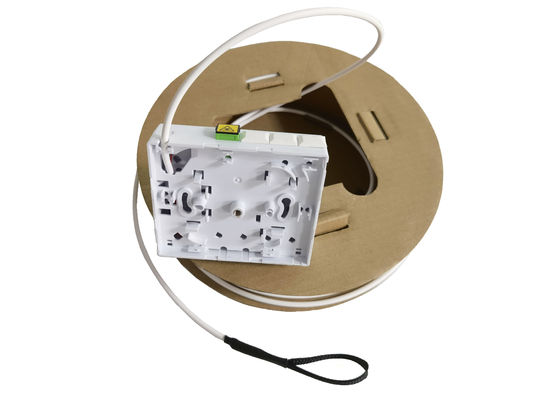

With the UT-King's PTO, installing the last drop cable and fiber optic outlet in a FTTx deployment isa very simple and fast process. The installer simply removes the spool-loaded cable from the carton and attaches the pre-terminated outlet to the wall.

Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports For Indoor DIN Rail 4Fiber Optic Pre-Terminated Outlet Kit PTO 4Ports For Indoor DIN Rail 5





Tags:

fiber optic junction box

fiber optic distribution box

fiber optic terminal box
