FRB-4C FTTH Fiber Optic Termination Box

YINGDA product all kinds of fiber optic terminal box, splitter distribution box, socket panel and etc in plastic or metal materials, no matter indoor or outdoor use. Welcome inquiry.

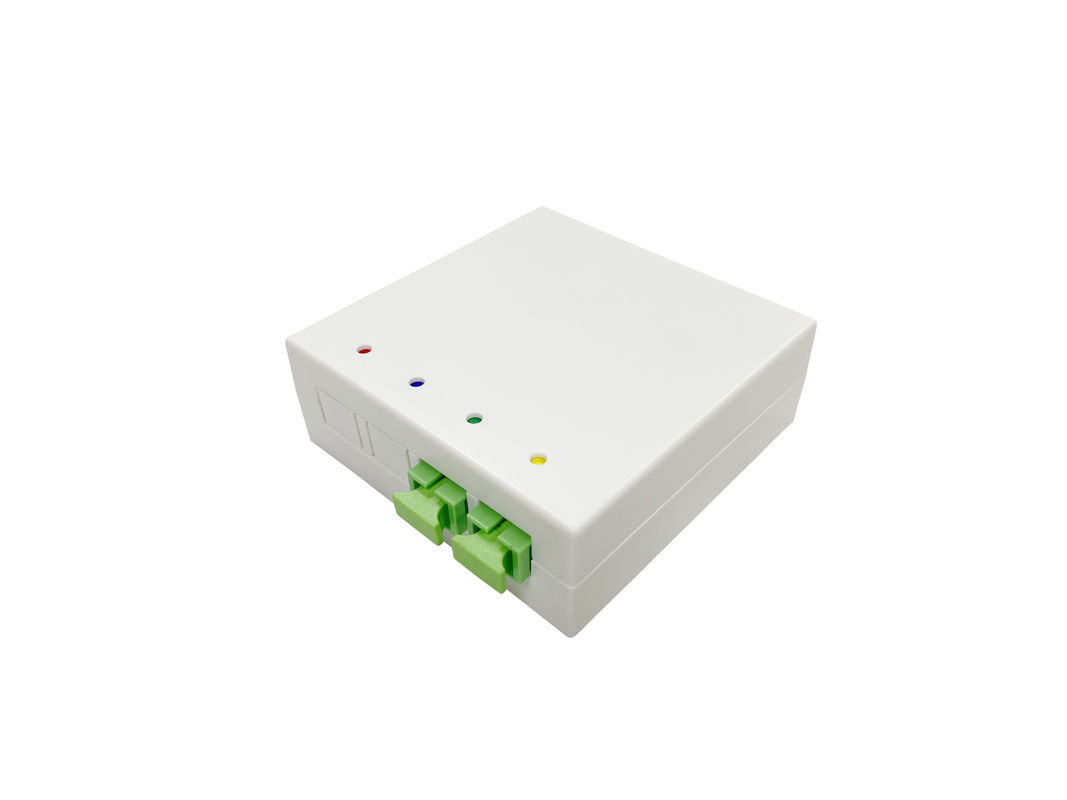

FRB-4C Fiber Optic Outlet is specially designed for FTTH (Fiber to The Home) for indoor application. It is with a protective door for dust proof, and meanwhile it provides protection and management for the FTTx network building.

Sales point:

Ø Support Indoor wall mount and DIN-Rail  35mm Mounting

Ø Max capacity: 4 core,4 Mechanical Splice for drop cable

Ø Compact size: 80*80*28

Ø ABS Plastic and ROHS proof.

Ø Embedded design, easy to disassemble and install

Specification:

Product Feature:

• Flexible termination methods: splicing + pigtail, FTTH fast connector on site.

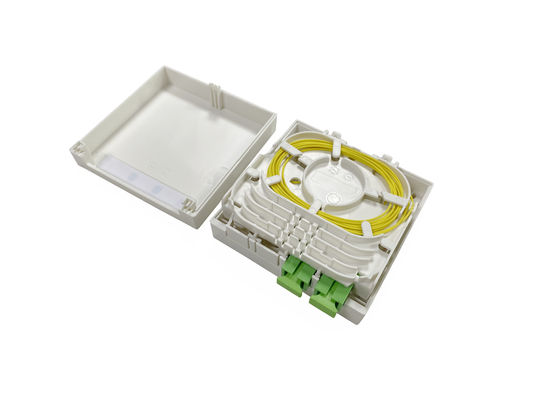

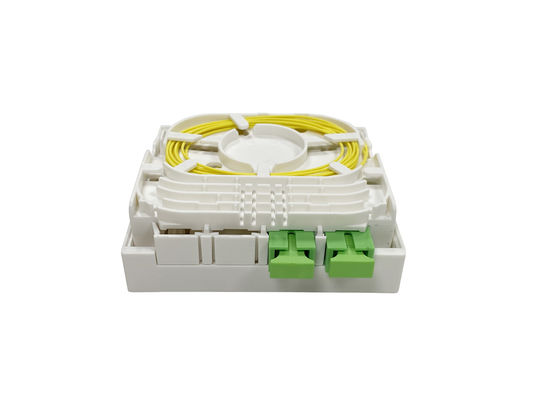

• 3 layer design, tray top for fusion and winding, tray back for patch distribution, bottom for cable enter and management;
• The product is made of high-quality plastic,with small size, light weight, and beautiful appearance.

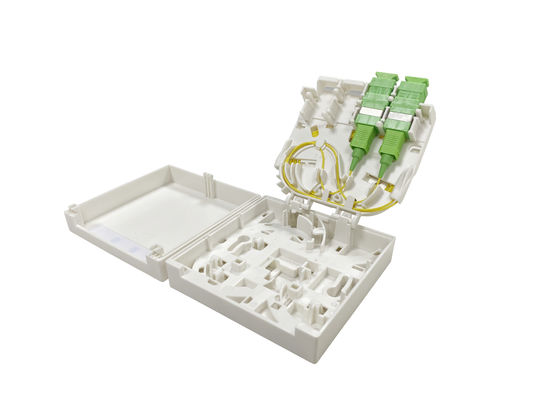

• Unique reversible tray, making fiber circuit clearer and less prone to crossing
• Adapter preset with a dust cover,which can be opened acording to construction requirements. SC adapter without flange for output, up to 1-4 cores single fiber splicing.
• Cable entrance set on the back,the top and bottom, left and right sides, flexible wiring;
• Box body retains the traditional screw fixation, adding a DIN rail clamping,making installation convenient.

Small space, large capacity:

Efficient fiber winding:

Application

• FTTH Access Network
• Telecommunication Network
• CATV Networks
• Local Area Networks
• Wall / DIN-Rail Mounting

Installation Method

• Wall mounting: use plastic expansion pipes and screws to fix them on the wall through the holes shown in the figure below:

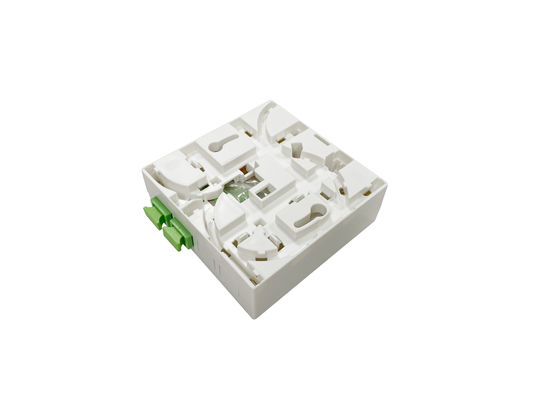

• DIN mounting: according to the construction requirments, oepnt he four corresponding slots on the back of the bottom, and clip the box body into the DIN rail. (the arrow points to the slot position)

Customized services:

Welcome to purchase fiber optic outlet boxes from our company. If the quantity is suitable, we are also willing to customize an order for you, even at a discount. Please submit your order to us immediately so that your project can take it further
