High Light
ftth drop cable
,fiber optic drop cable
-
Cable JacketBlack
-
Minimum Length10km
-
Fiber Count2 Cores
-
Cable Size6.8mm
-
Jacket MaterialPE Or LSZH
-
WaterproofYes
-
Tensile(N)Long Term:100N, Short Term: 200N
-
Place of Originchina
-
Brand NameYINGDA
-
CertificationISO,SGS
-
Model NumberGJXFH
-
Minimum Order Quantity10KM
-
PriceNegotiable
-
Packaging Details2km / wooden drum

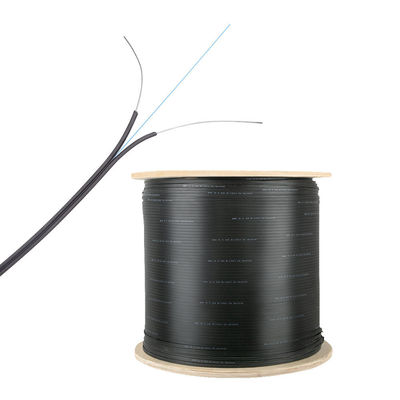

Indoor Figure-8 Bow-type FTTH Drop Cable FRP Strength Member G657A2 LSZH
Indoor Figure-8 Bow-type FTTH Drop Cable FRP Strength Member G657A2 LSZH
Description

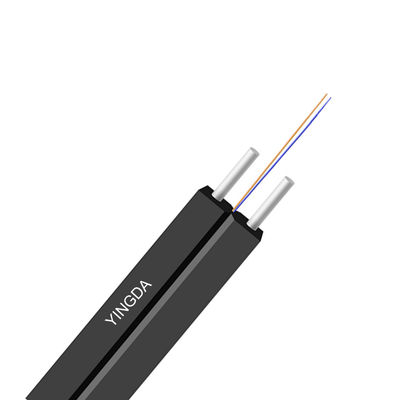

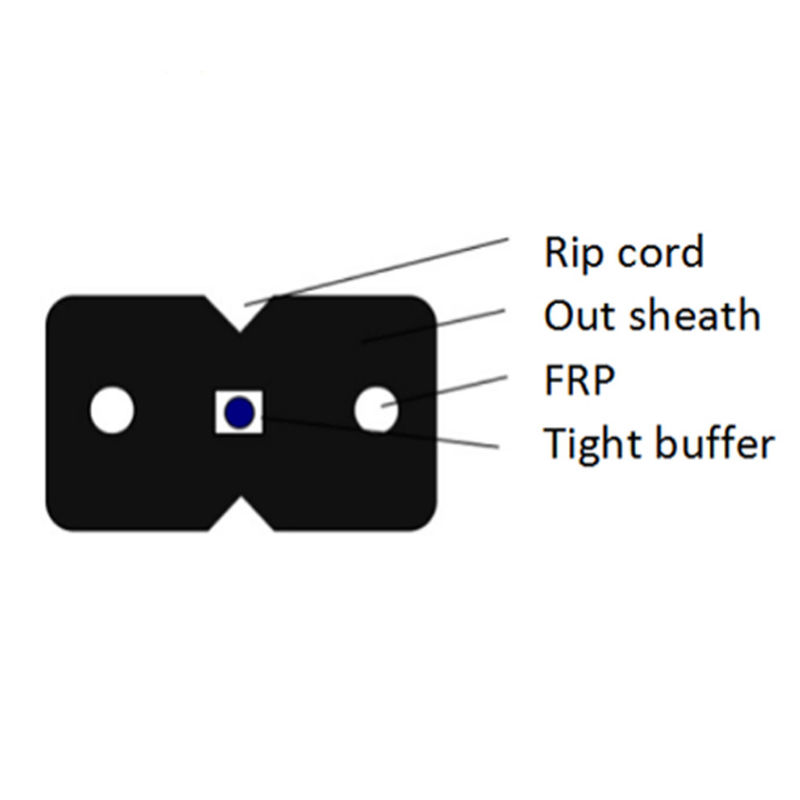

The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP
are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath.
Application
◆Used as access building cable
◆Used in indoor cabling especially used for FTTH
Technical parameters
|
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temper ature (°C) |
|||||||
|
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
|||||||||
|
GJXFH-01 |
1 |
1.6*2.0 |
5 |
40 |
80 |
500 |
1000 |
30D |
15D |
-20~+60 |
||||
|
GJXFH-01 |
1 |
2.0*3.0 |
8 |
40 |
80 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-02 |
2 |
2.0*3.0 |
8.5 |
40 |
80 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-04 |
4 |
2.0*3.0 |
9 |
40 |
80 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-06 |
6 |
3.0*4.0 |
14 |
45 |
85 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-08 |
8 |
3.0*4.0 |
16 |
50 |
90 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-12 |
12 |
3.0*4.0 |
19 |
55 |
95 |
500 |
1000 |
30D |
15D |
|||||
|
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||||||
|
Jacket material |
PE |
LSZH |
||||||||||||
|
Features |
||||||||||||||
|
Special low bend sensitivity fiber provides high bandwidth |
||||||||||||||
|
Two parallel FRP strength member ensures good performance of crush resistance to protect the fiber |
||||||||||||||
|
Simplex structure, light weight,high practicability |
||||||||||||||
|
Low smoke zero halogen and flame retardant sheath |
||||||||||||||
