Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation
  • name
  • name
  • name
  • name
  • name

Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation

MOQ: 100pcs
Price: 0.18USD-4.29USD
Standard Packaging: 1pc/plastic bag, 50pcs/inner box, 200pcs/carton box
Delivery Period: 2-5days
Payment Method: T/T, Western Union, MoneyGram, L/C
Supply Capacity: 500k pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO
Model Number
FTB86R
Material:
ABS
Color:
White
Size:
86*86*17mm
Application:
Ftth Indoor Wall Mounted
Fusion Capacity:
2 Cores (single Fiber)
Adapter Qty:
2SC Simplex Or 2LC Duplex Coupler
Cable Diameter:
Ø2.0mm, Ø3.0mm,3.0*2.0mm
Mounting Way:
Indoor Wall Mount With Screws
Highlight:

Wall Mount Fiber Optic Termination Box

,

Easy Installation Fiber Optic Termination Box

,

FTB86R Fiber Optic Termination Box

Product Description

Promotion price for Stock 1 Port Ftth Fiber Optic Termination Box SC APC Socket Panel with pigtail 1.5m



FTB86R Optic fiber panel is the end product for FTTH enter the household. It is widely used in family or work place, it provide user with optical interface or data interface.



Features

  • 2pcs SC or LC duplex interface;
  • Redundant fiber can be stored inside, easy to use and maintain;
  • Pigtail fiber and cable can be heat or mechanical connected;
  • Wide application, especially for multi-storey and high rise buildings.

Specification

Model FTB86R
Dimension 86*86*17mm
Max capacity 2 cores (single fiber)
Adapter quantity 2SC Simplex or 2LC duplex coupler
Cable diameter Ø2.0mm, Ø3.0mm,3.0*2.0mm
Material ABS or flame retardant
Net weight 40g
Carton box size 500*390*320mm
Color White
Mounting way Indoor wall mount with screws



Cable structure

Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 0

Application



  • Wall mount
  • Suitable for 2*3mm FTTH Drop Cable

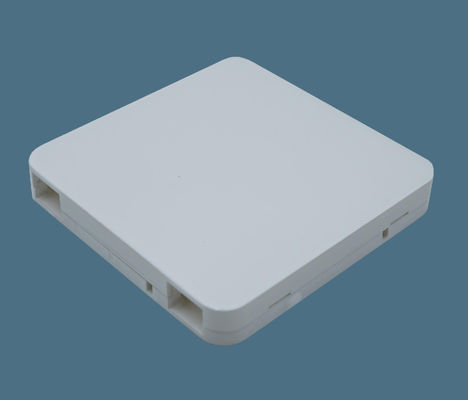

Real product pictures:

 Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 1   Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 2

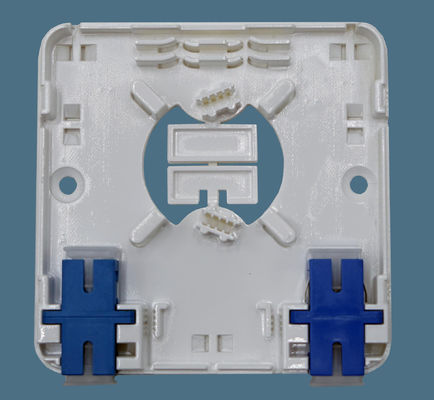

Front: 2 SC port

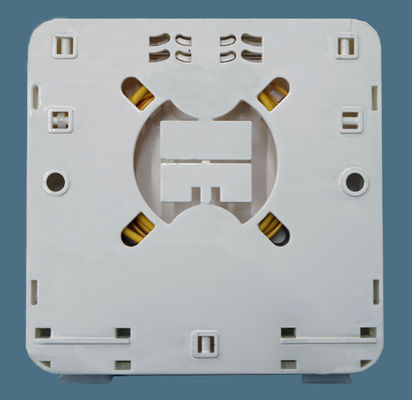

Back: 2 wall mount holes at middle, deliver in the accessory bag

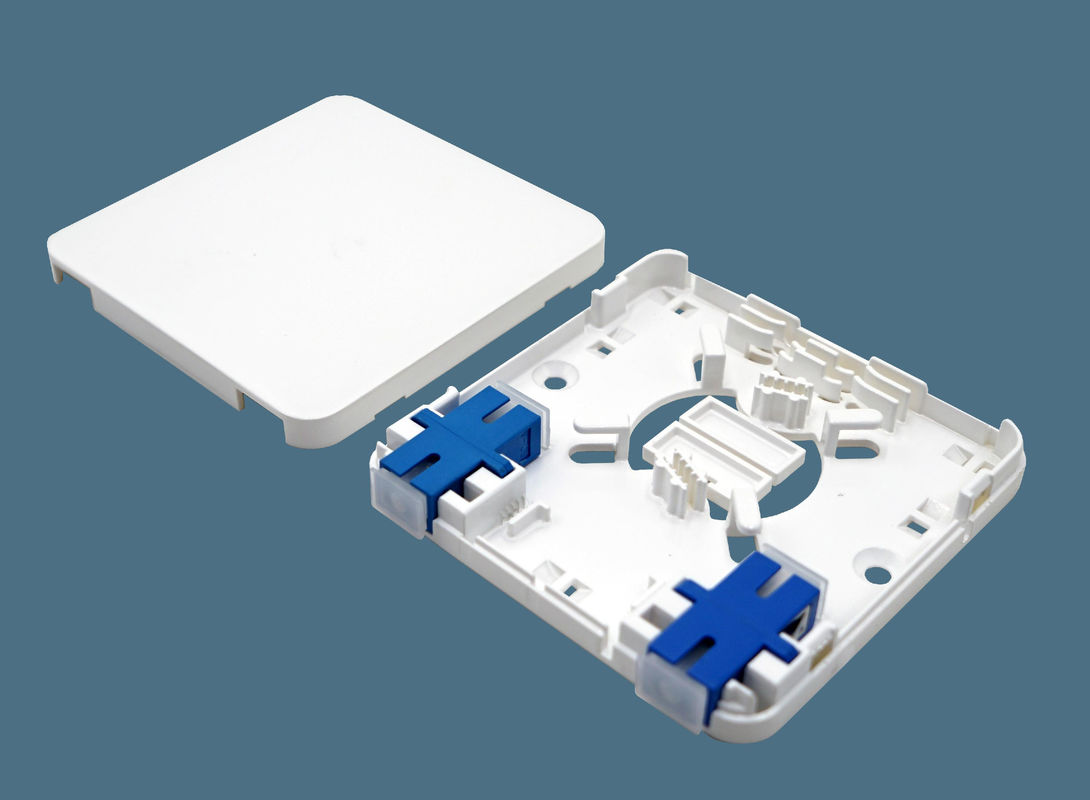

cover and bottom are separated, and can be taken off by hand easily.



Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 3   Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 4

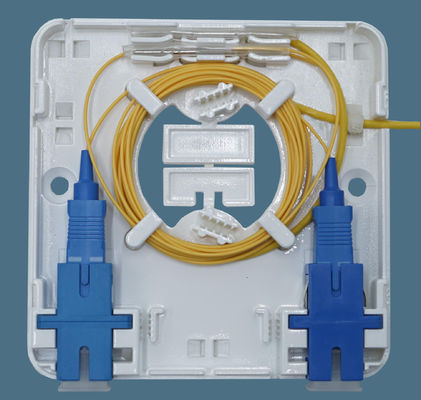

box+1 SC/APC pigtails 1.5m long  900um blue G65A72 LSZH+ 1 piece SC/APC adapter with flange

adapter and pigtails can be pre-terminated at factory,and test all technical parameters is ok, then can make shipment.



Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 5   Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 6



How to installation:

Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 7



Package information: 1pc / plastic bag, 50 pcs/ small box, 200 pcs / carton box.

Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 8   Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 9











We have many types of 86 ftth box for wall mounted indoor cable distributino and termination. see below in details:

if u have any new questions or inquiry, please don't forget to contact us at once

  • Email: sales@yingdapc.com
  • Tel: 0086 18688982406 (Wechat, whatsapp is the same number)

Wall Mount FTB86R Fiber Optic Termination Box For Easy Installation 10
